Bourns, 4030 Power Inductor 100 μH 700mA Idc

View all Surface Mount Inductors

Subtotal (1 reel of 600 units)*

£112.20

(exc. VAT)

£134.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
600 +£0.187£112.20

*price indicative

RS Stock No.:
247-5919
Mfr. Part No.:
SRN4030HA-101M
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Inductance

100 μH

Maximum DC Current

700mA

Package/Case

4030

Length

4 x 4 x 3mm

Depth

4mm

Automotive Standard

AEC-Q200

COO (Country of Origin):
CN

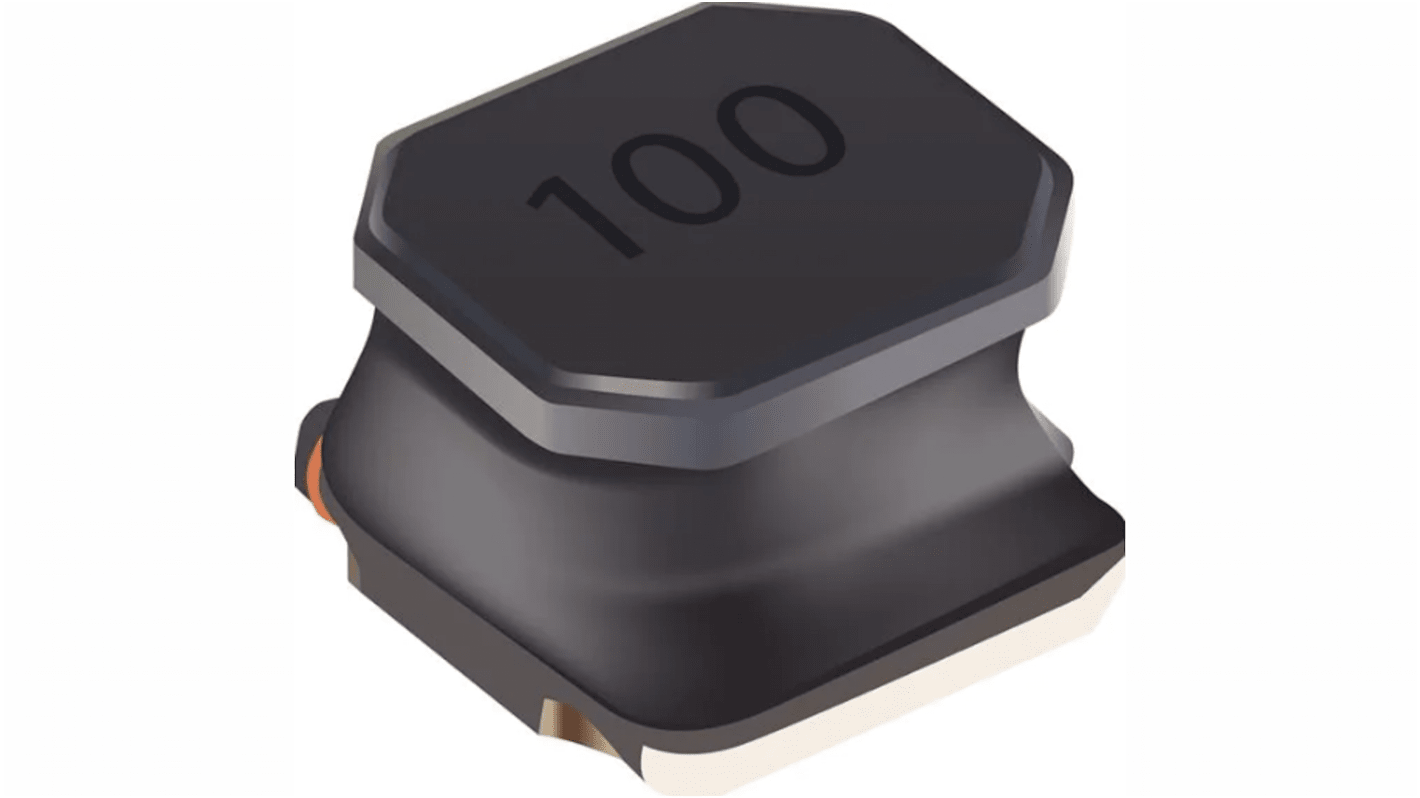

The Bourns SRN4030HA series is semi-shielded power Inductor with a ferrite core, enameled copper wire, and a magnetic epoxy resin coating. It has designed for automotive electronics applications and is AEC-Q200 qualified but they can also be used on other applications where high inductor reliability is required. It has 100 μH inductance and 0.55 A rated current.

Operating temperature is -55 °C to 150 °C
Halogen free
RoHS compliant
