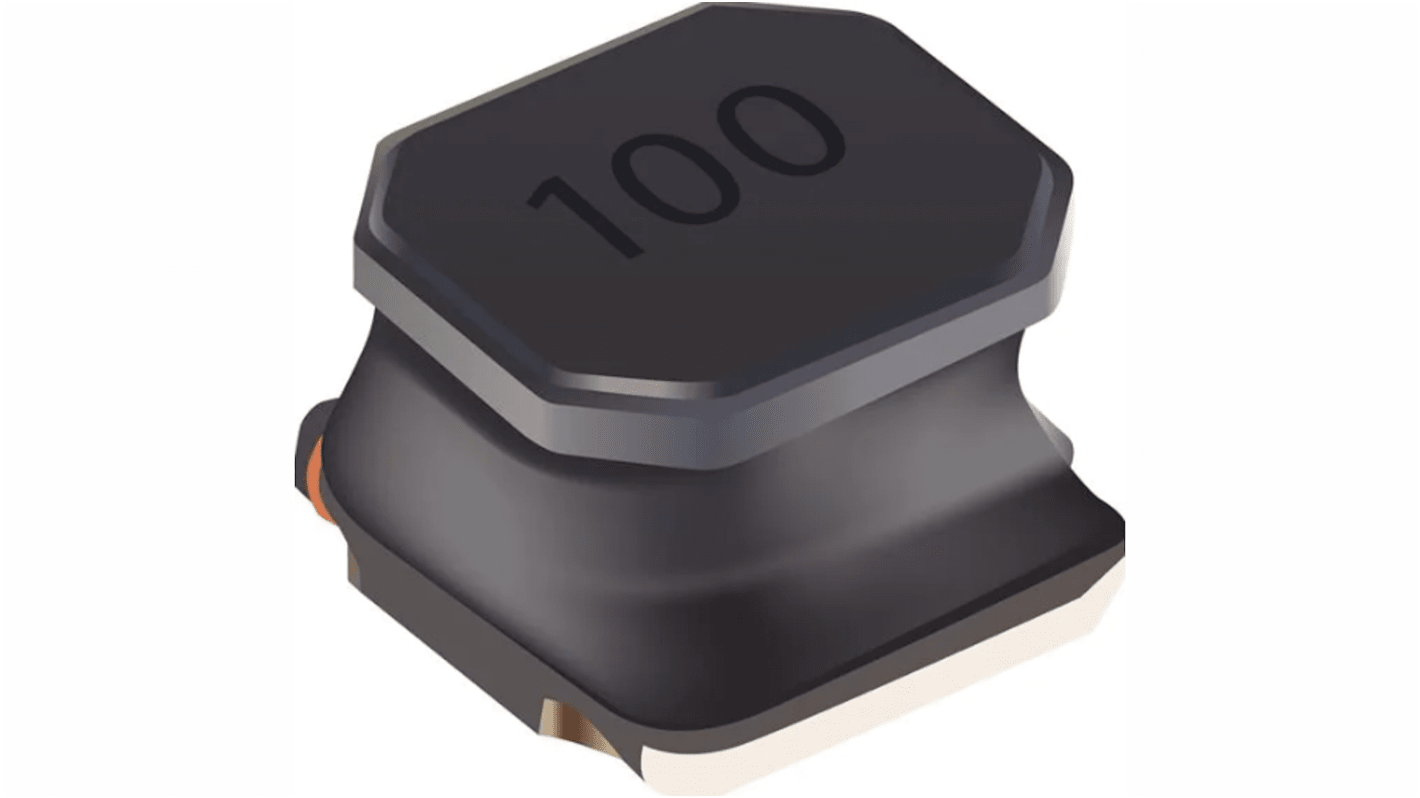

Bourns, 4030 Power Inductor 22 μH 1.2A Idc
- RS Stock No.:
- 247-5925
- Mfr. Part No.:
- SRN4030HA-220M
- Brand:
- Bourns
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 247-5925
- Mfr. Part No.:
- SRN4030HA-220M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 22 μH | |
| Maximum DC Current | 1.2A | |
| Package/Case | 4030 | |
| Length | 4 x 4 x 3mm | |
| Depth | 4mm | |
| Automotive Standard | AEC-Q200 | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 22 μH | ||
Maximum DC Current 1.2A | ||
Package/Case 4030 | ||
Length 4 x 4 x 3mm | ||
Depth 4mm | ||
Automotive Standard AEC-Q200 | ||
- COO (Country of Origin):
- CN
The Bourns SRN4030HA series is semi-shielded power Inductor with a ferrite core, enameled copper wire, and a magnetic epoxy resin coating. It has designed for automotive electronics applications and is AEC-Q200 qualified but they can also be used on other applications where high inductor reliability is required. It has 22 μH inductance and 1.2 A rated current.
Operating temperature is -55 °C to 150 °C
Halogen free
RoHS compliant
Halogen free
RoHS compliant
