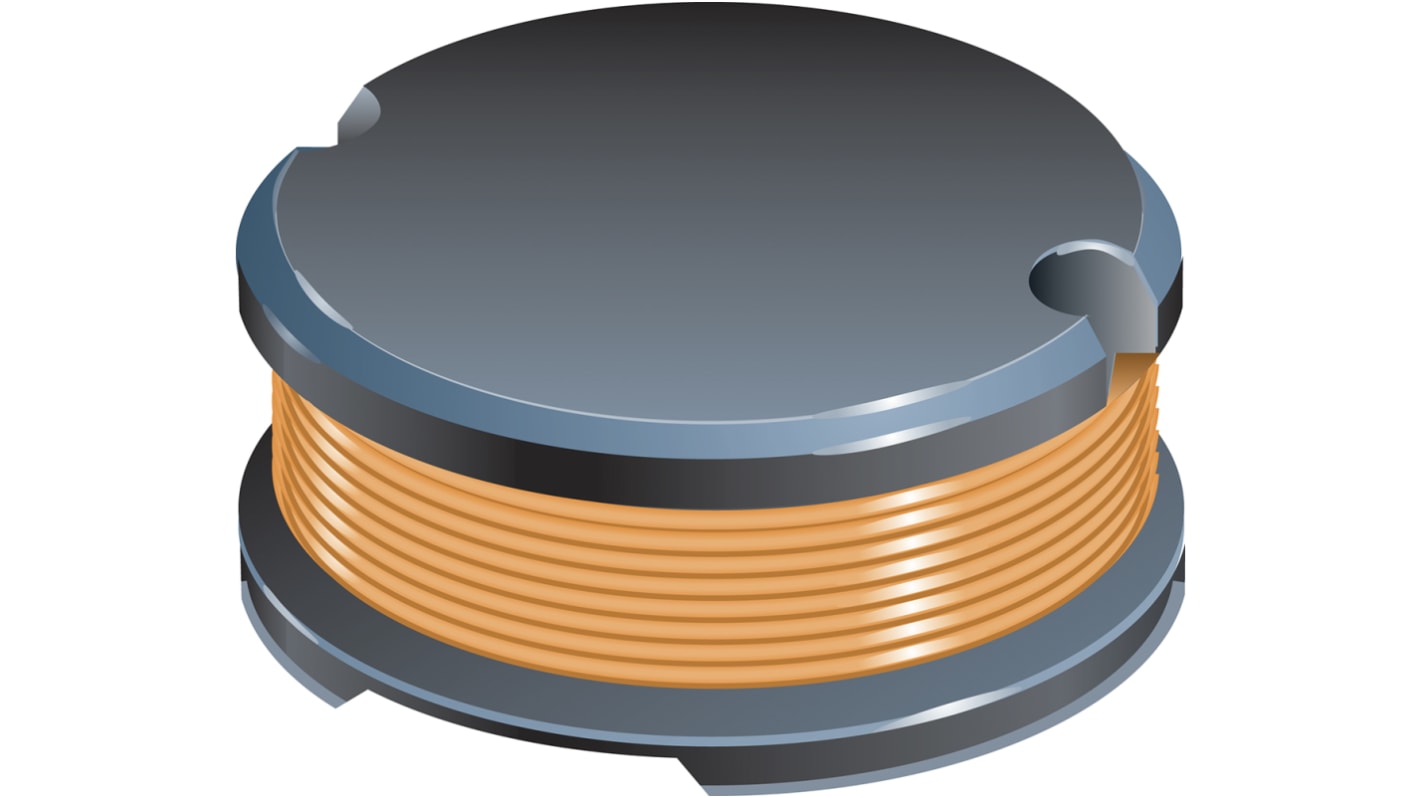

Bourns, SDR0805, 0805 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 22 μH ±20% Ferrite Core 1.5A Idc Q:20

RS Stock No.:: 181-6275
Mfr. Part No.:: SDR0805-220ML
Brand:: Bourns

Bourns, SDR0805, 0805 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 22 μH ±20% Ferrite Core 1.5A Idc Q:20

950 In stock - FREE next working day delivery available

Price Each (On a Reel of 100)

£0.375

(exc. VAT)

£0.45

(inc. VAT)

Units	Per unit	Per Reel*
100 - 400	£0.375	£37.50
500 +	£0.343	£34.30

*price indicative

RS Stock No.:: 181-6275
Mfr. Part No.:: SDR0805-220ML
Brand:: Bourns

Technical Reference

Datasheet SDR0805-220ML

Legislation and Compliance

Product Details

SDR0805 Series Wire Wound Chokes

Available in E12 series
Small design of only 7.8mm maximum diameter
RoHS compliant
Applications in input/output of DC/DC Converters, Power Supplies

Available in E12 series
Small design of only 7.8 mm max. diameter
Applications
Input/output of DC/DC converters
Power supplies for:
Portable communications equipment
Camcorders
LCD TVs
CD players
Car radios

Specifications

Attribute	Value
Inductance	22 μH
Maximum DC Current	1.5A
Package/Case	0805
Length	7.8mm
Depth	7.8mm
Height	5.3mm
Diameter	7.8mm
Dimensions	7.8 x 7.8 x 5.3mm
Shielded	No
Tolerance	±20%
Maximum DC Resistance	110mΩ
Series	SDR0805
Core Material	Ferrite DR
Maximum Self Resonant Frequency	13MHz
Minimum Quality Factor	20
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-40°C
Inductor Construction	Ferrite Core
