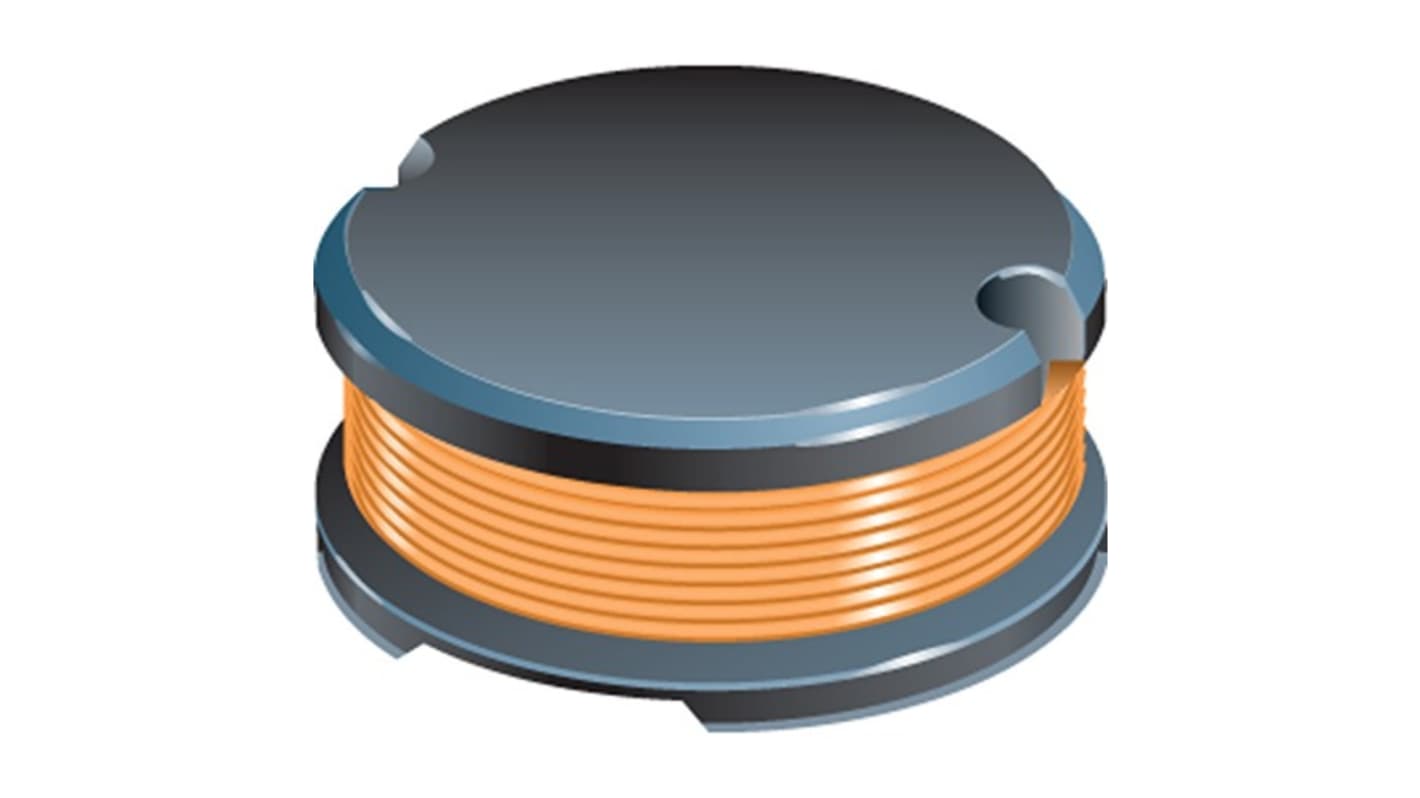

Bourns, SDR0805, 0805 (2012M) Unshielded Power Inductor with a Ferrite DR Core, 5.6 μH ±20% Ferrite Core 3.5A Idc Q:31
- RS Stock No.:
- 466-296
- Mfr. Part No.:
- SDR0805-5R6ML
- Brand:
- Bourns
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 466-296
- Mfr. Part No.:
- SDR0805-5R6ML
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 5.6 μH | |
| Maximum DC Current | 3.5A | |
| Package/Case | 0805 (2012M) | |
| Length | 7.8mm | |
| Depth | 7.8mm | |
| Shielded | No | |
| Tolerance | ±20% | |
| Series | SDR0805 | |
| Core Material | Ferrite DR | |
| Minimum Quality Factor | 31 | |
| Inductor Construction | Ferrite Core | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 5.6 μH | ||
Maximum DC Current 3.5A | ||
Package/Case 0805 (2012M) | ||
Length 7.8mm | ||
Depth 7.8mm | ||
Shielded No | ||
Tolerance ±20% | ||
Series SDR0805 | ||
Core Material Ferrite DR | ||
Minimum Quality Factor 31 | ||
Inductor Construction Ferrite Core | ||
- COO (Country of Origin):
- CN
The Bourns SMD power inductors are available in the E12 series, offering a broad selection of inductance values. Their small design, with a maximum diameter of just 7.8 mm, makes them perfect for compact applications while delivering reliable performance.
RoHS compliant
