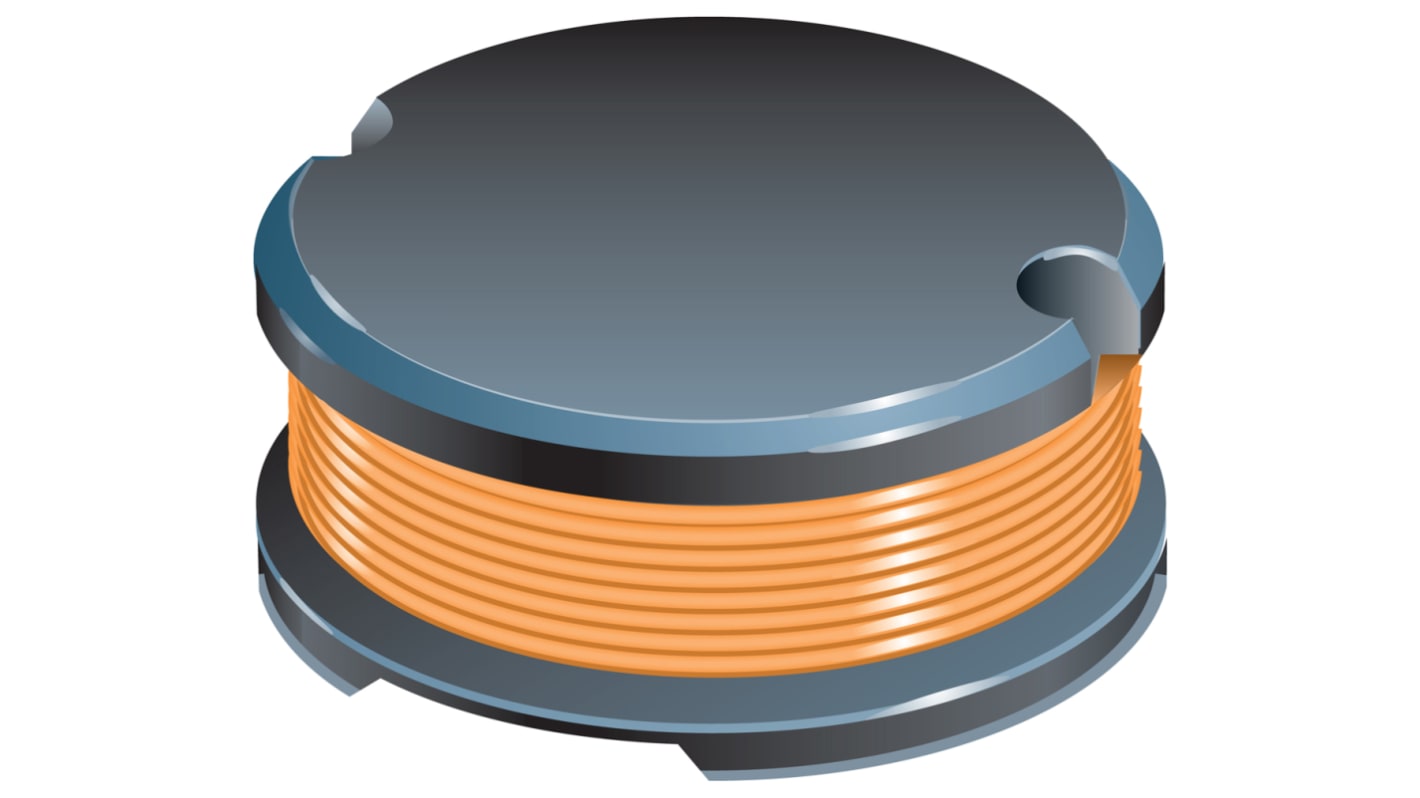

Bourns, SDR0805, 0805 Unshielded Wirewound Surface Mount Inductor with a Ferrite Core, 100 μH ±10 % 1.1 A Idc Q:12
- RS Stock No.:
- 122-9161
- Distrelec Article No.:
- 304-30-151
- Mfr. Part No.:
- SDR0805-101KL
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 20 units)*
£5.76
(exc. VAT)
£6.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,020 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 180 | £0.288 | £5.76 |
| 200 - 980 | £0.202 | £4.04 |
| 1000 - 1980 | £0.181 | £3.62 |
| 2000 - 4980 | £0.179 | £3.58 |
| 5000 + | £0.177 | £3.54 |
*price indicative
- RS Stock No.:
- 122-9161
- Distrelec Article No.:
- 304-30-151
- Mfr. Part No.:
- SDR0805-101KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 100μH | |
| Maximum DC Current | 1.1A | |
| Package/Case | 0805 | |
| Packaging | Tape & Reel | |
| Length | 7.8mm | |
| Automotive Standard | No | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.45Ω | |
| Series | SDR0805 | |
| Inductance Tolerance | ±10 % | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | Surface Mount | |
| Height | 5.3mm | |
| Standards/Approvals | RoHS | |
| Depth | 7.8mm | |
| Diameter | 7.8mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 7MHz | |
| Moulded | Yes | |
| Minimum Quality Factor | 12 | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 100μH | ||
Maximum DC Current 1.1A | ||
Package/Case 0805 | ||
Packaging Tape & Reel | ||
Length 7.8mm | ||
Automotive Standard No | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.45Ω | ||
Series SDR0805 | ||
Inductance Tolerance ±10 % | ||
Maximum Operating Temperature 125°C | ||
Termination Style Surface Mount | ||
Height 5.3mm | ||
Standards/Approvals RoHS | ||
Depth 7.8mm | ||
Diameter 7.8mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 7MHz | ||
Moulded Yes | ||
Minimum Quality Factor 12 | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- CN
SDR0805 Series Wire Wound Chokes
Available in E12 series
Small design of only 7.8mm maximum diameter
RoHS compliant
Applications in input/output of DC/DC Converters, Power Supplies
