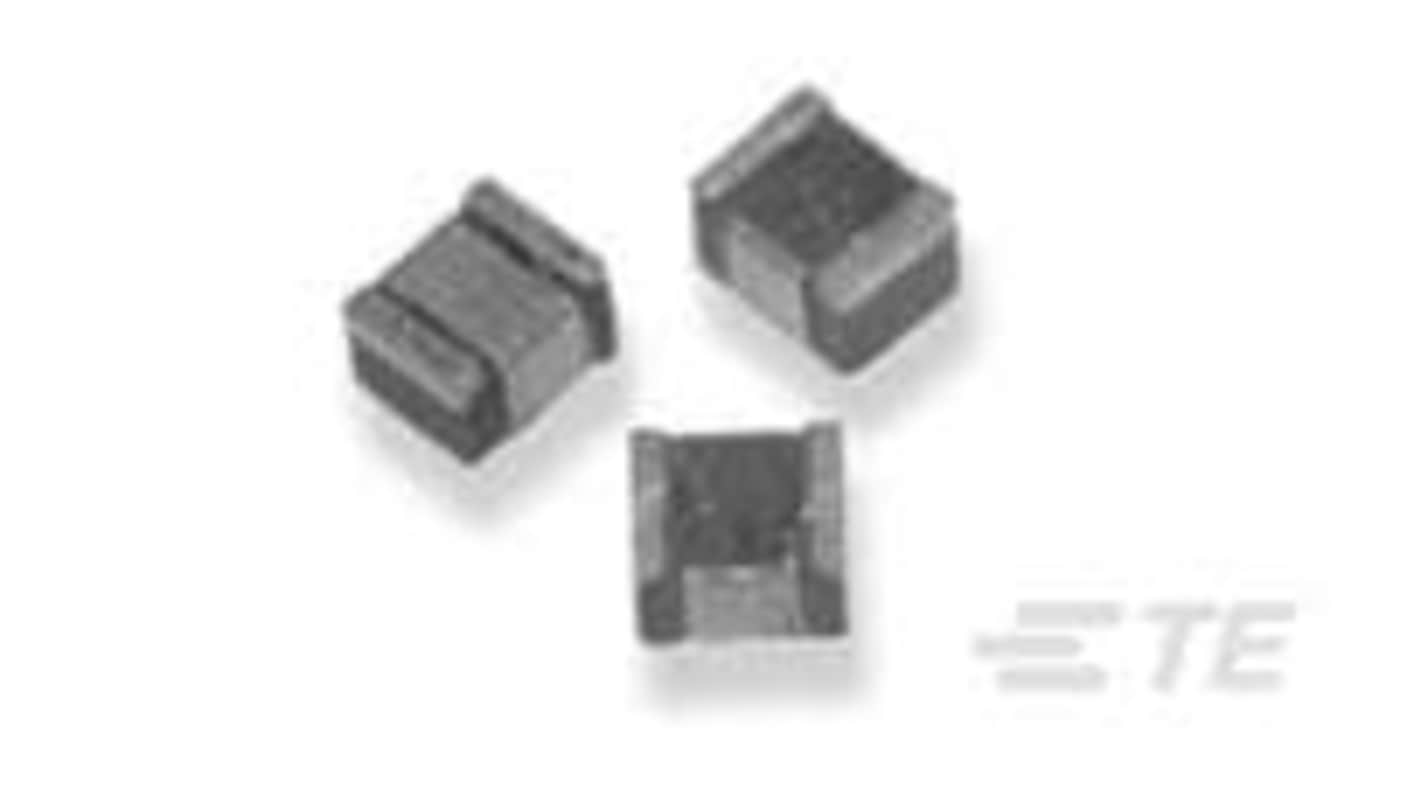

TE Connectivity, 36501, 0402 Surface Mount Inductor 8.2 nH 5 % 680 mA Idc Q:22
- RS Stock No.:
- 474-294
- Distrelec Article No.:
- 304-63-495
- Mfr. Part No.:
- 3-1624112-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 2000 units)*
£454.00
(exc. VAT)
£544.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.227 | £454.00 |
*price indicative
- RS Stock No.:
- 474-294
- Distrelec Article No.:
- 304-63-495
- Mfr. Part No.:
- 3-1624112-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Surface Mount Inductor | |
| Inductance | 8.2nH | |
| Maximum DC Current | 680mA | |
| Package/Case | 0402 | |
| Packaging | Tape & Reel | |
| Length | 1.27mm | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.104Ω | |
| Series | 36501 | |
| Inductance Tolerance | 5 % | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2 MIIT Order No 32, 2016 | |
| Height | 0.61mm | |
| Maximum Self Resonant Frequency | 4.4GHz | |
| Minimum Quality Factor | 22 | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Surface Mount Inductor | ||
Inductance 8.2nH | ||
Maximum DC Current 680mA | ||
Package/Case 0402 | ||
Packaging Tape & Reel | ||
Length 1.27mm | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.104Ω | ||
Series 36501 | ||
Inductance Tolerance 5 % | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2 MIIT Order No 32, 2016 | ||
Height 0.61mm | ||
Maximum Self Resonant Frequency 4.4GHz | ||
Minimum Quality Factor 22 | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- TW
The TE Connectivity high frequency inductor is meticulously designed for optimal performance in compact applications. Showcasing an impressive inductance value, this product excels in environments where precision and efficiency are paramount. The innovative wire-wound construction facilitates enhanced inductance stability while ensuring minimal DC resistance, making it ideal for surface mount technology (SMT) deployments. With its robust current rating, this inductor provides reliable, continuous operation in demanding conditions. The carefully engineered dimensions, coupled with a low-profile design, allow for seamless integration into various circuit layouts. This component is not just a passive device; it embodies the cutting-edge advancements of the Sigma 3650 series, making it an essential element for high-frequency applications.
Features a surface mount design for effortless PCB integration
Exhibits a low DC resistance for improved efficiency over time
Designed to operate within a broad temperature range for versatility
Offers a compact package size that saves valuable circuit board real estate
Incorporates taped and reeled packaging for streamlined assembly processes
