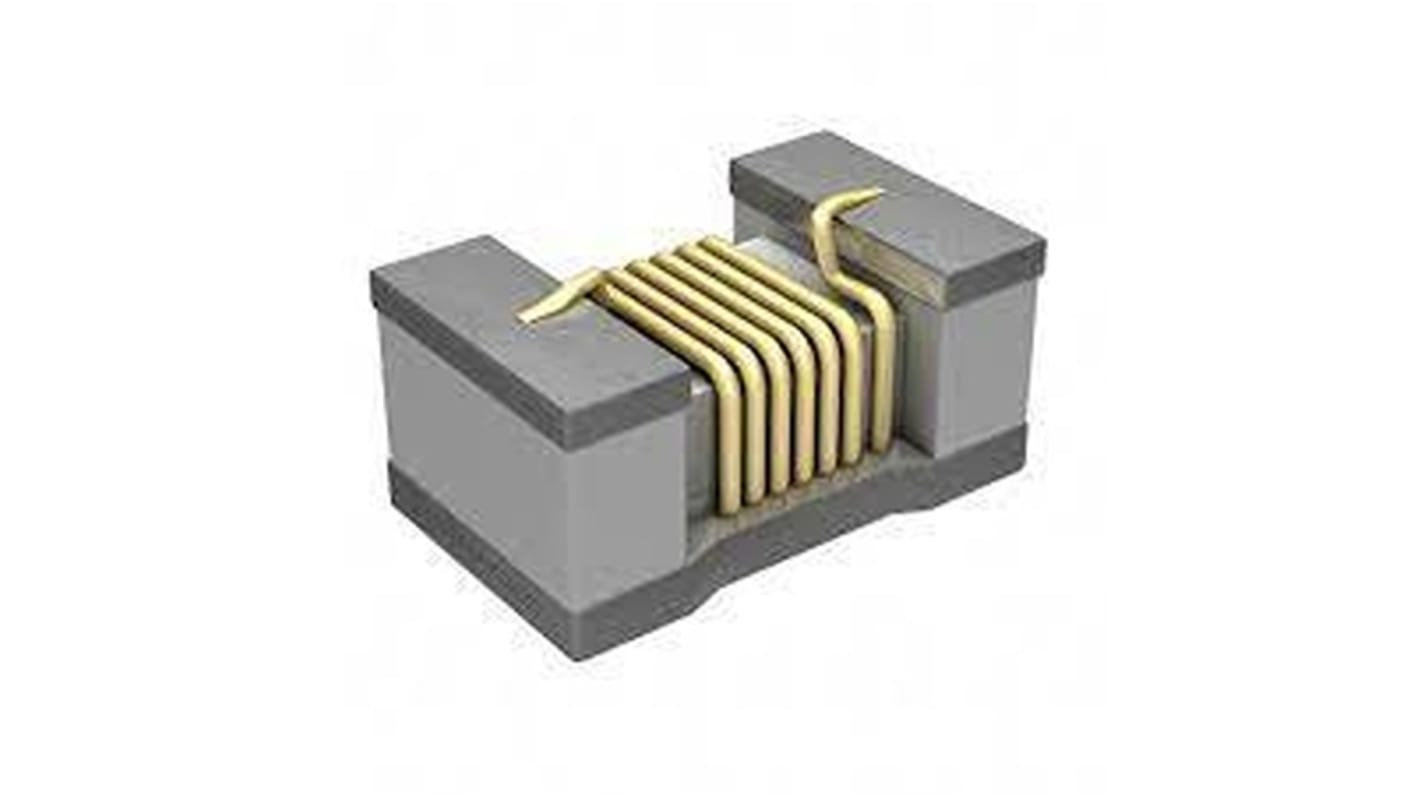

Murata, LQW15AN_00, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Non-Magnetic Core Core, 8.2 nH ±2% 540mA Idc
- RS Stock No.:
- 276-3801
- Mfr. Part No.:
- LQW15AN8N2G00D
- Brand:
- Murata
Bulk discount available
Subtotal (1 tape of 100 units)*
£9.00
(exc. VAT)
£11.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,200 unit(s) ready to ship
- Plus 999,994,700 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 100 - 400 | £0.09 | £9.00 |
| 500 - 900 | £0.083 | £8.30 |
| 1000 - 4900 | £0.076 | £7.60 |
| 5000 + | £0.072 | £7.20 |
*price indicative
- RS Stock No.:
- 276-3801
- Mfr. Part No.:
- LQW15AN8N2G00D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Inductance | 8.2 nH | |
| Maximum DC Current | 540mA | |
| Package/Case | 0402 (1005M) | |
| Length | 1mm | |
| Depth | 0.5mm | |
| Shielded | No | |
| Tolerance | ±2% | |
| Series | LQW15AN_00 | |
| Core Material | Non-Magnetic Core | |
| Minimum Quality Factor | 25 | |
Select all | ||
|---|---|---|
Brand Murata | ||
Inductance 8.2 nH | ||
Maximum DC Current 540mA | ||
Package/Case 0402 (1005M) | ||
Length 1mm | ||
Depth 0.5mm | ||
Shielded No | ||
Tolerance ±2% | ||
Series LQW15AN_00 | ||
Core Material Non-Magnetic Core | ||
Minimum Quality Factor 25 | ||
The Murata wire wound RF inductor. It is non shielded and used in consumer equipment, medical equipment
RoHS compliant
REACH compliant
REACH compliant
