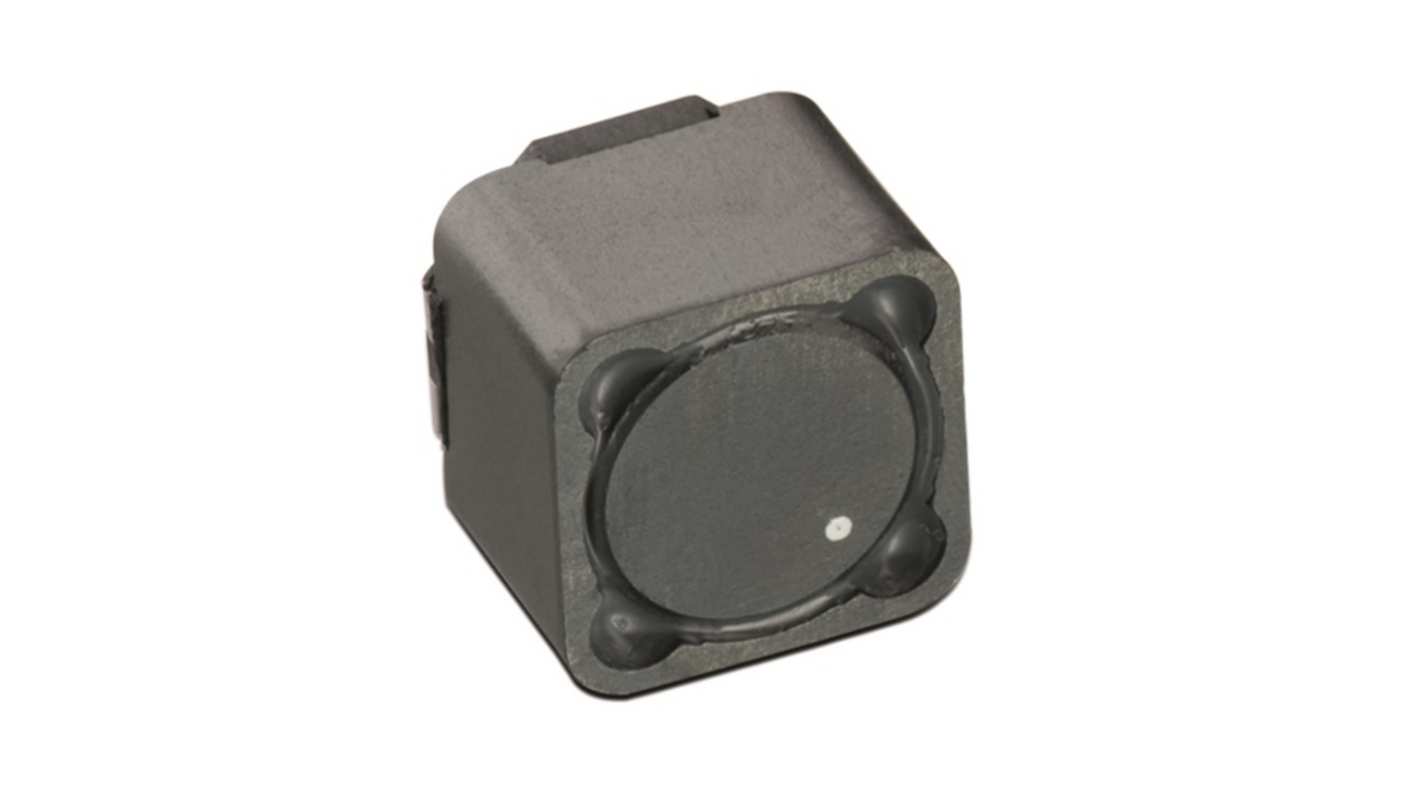

Wurth Elektronik, WE-DD, 7332 Shielded Surface Mount Inductor with a Polystyrene Core, 47 μH Coupled 20 % 900 mA Idc
- RS Stock No.:
- 296-268
- Distrelec Article No.:
- 304-30-065
- Mfr. Part No.:
- 744878470
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£9.08
(exc. VAT)
£10.895
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 45 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.816 | £9.08 |
| 50 - 95 | £1.724 | £8.62 |
| 100 - 495 | £1.598 | £7.99 |
| 500 - 995 | £1.47 | £7.35 |
| 1000 + | £1.416 | £7.08 |
*price indicative
- RS Stock No.:
- 296-268
- Distrelec Article No.:
- 304-30-065
- Mfr. Part No.:
- 744878470
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 47 μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 900mA | |
| Sub Type | Shielded Coupled Inductor | |
| Package/Case | 7332 | |
| Packaging | Tape & Reel | |
| Length | 7.3mm | |
| Automotive Standard | No | |
| Shielding | Shielded | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.75Ω | |
| Inductance Tolerance | 20 % | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-DD | |
| Depth | 4mm | |
| Height | 4mm | |
| Core Material | Polystyrene | |
| Diameter | 4 mm | |
| Standards/Approvals | RoHS 2011, EU&2015, Halogen Free JEDEC JS709B, 2006, REACH or declared EC1907, 863 | |
| Maximum Self Resonant Frequency | 8MHz | |
| Inductor Construction | Coupled | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 47 μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 900mA | ||
Sub Type Shielded Coupled Inductor | ||
Package/Case 7332 | ||
Packaging Tape & Reel | ||
Length 7.3mm | ||
Automotive Standard No | ||
Shielding Shielded | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.75Ω | ||
Inductance Tolerance 20 % | ||
Maximum Operating Temperature 125°C | ||
Series WE-DD | ||
Depth 4mm | ||
Height 4mm | ||
Core Material Polystyrene | ||
Diameter 4 mm | ||
Standards/Approvals RoHS 2011, EU&2015, Halogen Free JEDEC JS709B, 2006, REACH or declared EC1907, 863 | ||
Maximum Self Resonant Frequency 8MHz | ||
Inductor Construction Coupled | ||
Moulded No | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik SMT-Doppeldrosse 1:1 transformer features a double inductor with two identical windings. It is available in five different sizes and operates within a temperature range of –40°C to +125°C. The recommended solder profile is reflow, with custom designs available on request.
For SEPIC and CUK topologies
Fly back applications
Switching regulators with second, unregulated output voltage
