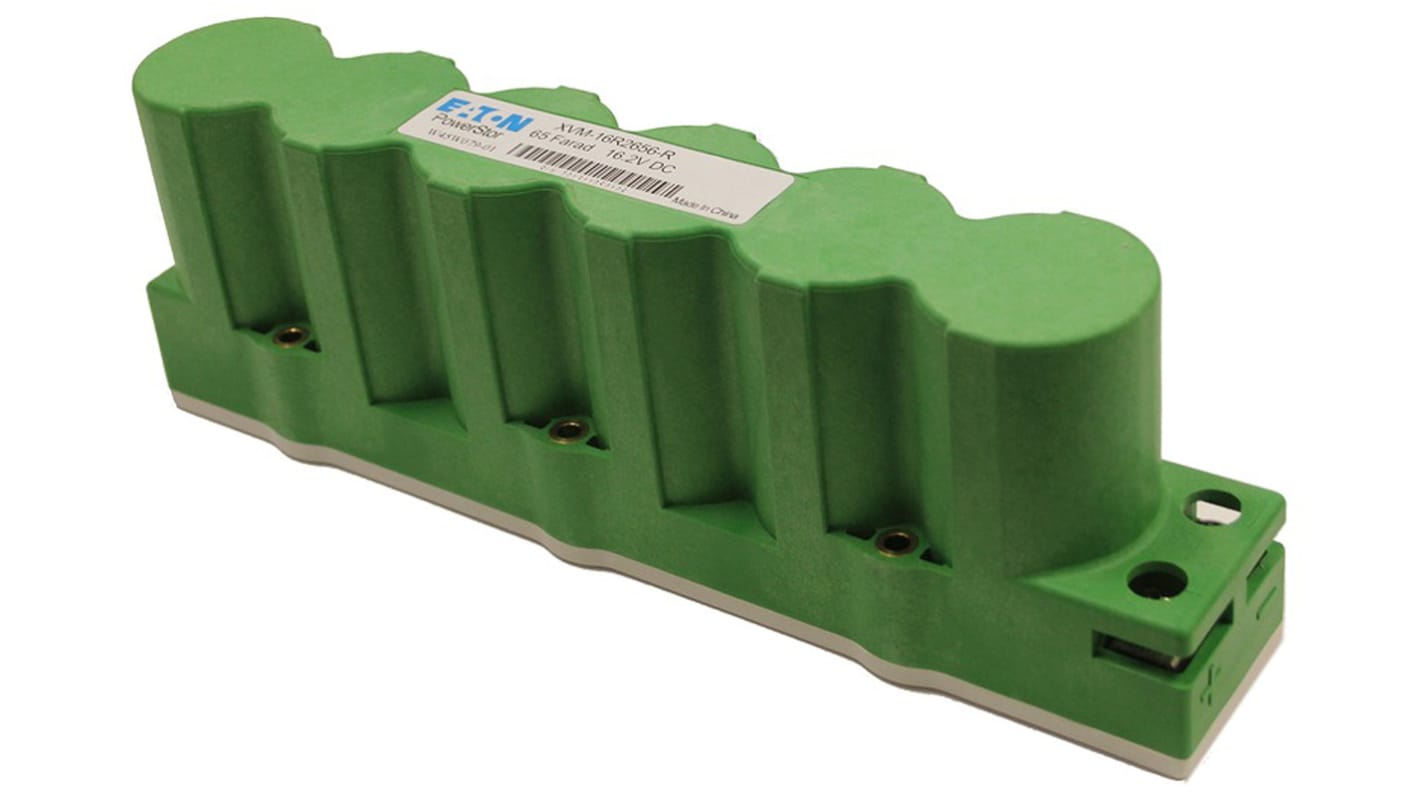

Eaton 65F Supercapacitor 0 → +20% Tolerance 16.2V dc, Chassis Mount

RS Stock No.:: 135-1098
Distrelec Article No.:: 302-63-090
Mfr. Part No.:: XVM-16R2656-R
Brand:: Eaton

Eaton 65F Supercapacitor 0 → +20% Tolerance 16.2V dc, Chassis Mount

Subtotal (1 unit)*

£156.39

(exc. VAT)

£187.67

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

23 unit(s) ready to ship
Plus 4 unit(s) shipping from 08 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£156.39

*price indicative

RS Stock No.:: 135-1098
Distrelec Article No.:: 302-63-090
Mfr. Part No.:: XVM-16R2656-R
Brand:: Eaton

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Capacitance	65F
	Voltage	16.2V dc
	Mounting Type	Chassis Mount
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+65°C
	Height	77.5mm
	Dimensions	236 x 41.8 x 77.5mm
	Leakage Current	23 mA
	Equivalent Series Resistance	22mΩ
	Lifetime	1500 h @ 65°C
	Tolerance	0 → +20%
	Capacitor Family	Electric Double Layer
	Polarised	Polar
	Terminal Type	Screw Terminal

	Select all
	Brand Eaton
	Capacitance 65F
	Voltage 16.2V dc
	Mounting Type Chassis Mount
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +65°C
	Height 77.5mm
	Dimensions 236 x 41.8 x 77.5mm
	Leakage Current 23 mA
	Equivalent Series Resistance 22mΩ
	Lifetime 1500 h @ 65°C
	Tolerance 0 → +20%
	Capacitor Family Electric Double Layer
	Polarised Polar
	Terminal Type Screw Terminal

Cooper Bussman XVM Series (PowerStor) Super Capacitors

Cooper Bussman XVM Series PowerStor supercapacitors are unique, ultra-high-capacitance devices utilising electromechanical double layer capacitor (EDLC) construction combined with new, high-performance materials. This combination of advanced technologies allows for a wide variety of capacitor solutions tailored to specific applications.

Features

Compact size for easy mounting as replacement for, or in conjunction with, a 12 V battery
Series or parallel connection of multiple modules for higher voltage, power, or discharge time
High reliability, "green" solution for pulse or back-up power applications
Maintenance-free
Broad operating temperature range: -40°C to +65°C (+85 derated)

Applications

Industrial computer and emergency back-up energy
Battery assist engine starting, especially for cold or frequent starts
Graceful system shutdown for robotics, PLCs, and electrical switches

Eaton Supercapacitor, 23mA, 16.2V DC - XVM Series - XVM-16R2656-R

Store up electrical power using this supercapacitor from Eaton. It has twin terminals to collect voltage power as current passes through the electrical circuit. The electrical field generated in this supercapacitor provides your device with extra power for starting up an engine and making shutdowns in PLCs (programmable logic controllers) safer and less abrupt. The back-up power can be especially helpful in an accidental or emergency power outage to prevent disruptive system failures and to keep system efficiency from being impaired.

• Operating temperature range from -40°C to +65°C for use in extreme industrial environments
• Approximate lifespan of 1500 hours at +65°C, for long-lasting use
• Tolerance level of 0% to +20% keeping current levels steady and reliable throughout operation
• Screw terminals hold the unit tightly in place on a chassis mount to stop vibration wear and accidental deactivation

Can this supercapacitor be mounted with a 12V battery?

Yes, the compact size of this supercapacitor (236 length x 41.8 width x 77.5mm depth) makes it simple to mount in conjunction with, or as a replacement for, a 12V battery.

Note

Eaton formerly known as Bussmann
