Eaton 34F Supercapacitor -10 → +30% Tolerance 3V dc, Through Hole
- RS Stock No.:
- 135-1094
- Mfr. Part No.:
- TV1245-3R0346-R
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£4.55
(exc. VAT)
£5.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 61 unit(s) shipping from 01 October 2025
- Plus 9 unit(s) shipping from 01 October 2025
- Plus 18 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £4.55 |
25 - 49 | £4.23 |
50 - 99 | £3.87 |
100 - 249 | £3.59 |
250 + | £3.27 |
*price indicative
- RS Stock No.:
- 135-1094
- Mfr. Part No.:
- TV1245-3R0346-R
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Capacitance | 34F | |
Voltage | 3V dc | |
Mounting Type | Through Hole | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +65°C | |
Diameter | 12.9mm | |
Dimensions | 12.9 (Dia.) x 49mm | |
Lead Pitch | 5mm | |
Leakage Current | 75 μA | |
Equivalent Series Resistance | 0.016Ω | |
Lifetime | 1000h | |
Tolerance | -10 → +30% | |
Lead Spacing | 5 mm | |
Terminal Type | Radial | |
Depth | 49mm | |
Lead Diameter | 0.6mm | |
Polarised | Polar | |
Product Diameter | 12.9mm | |
Capacitor Family | Electric Double Layer | |
Select all | ||
---|---|---|
Brand Eaton | ||
Capacitance 34F | ||
Voltage 3V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +65°C | ||
Diameter 12.9mm | ||
Dimensions 12.9 (Dia.) x 49mm | ||
Lead Pitch 5mm | ||
Leakage Current 75 μA | ||
Equivalent Series Resistance 0.016Ω | ||
Lifetime 1000h | ||
Tolerance -10 → +30% | ||
Lead Spacing 5 mm | ||
Terminal Type Radial | ||
Depth 49mm | ||
Lead Diameter 0.6mm | ||
Polarised Polar | ||
Product Diameter 12.9mm | ||
Capacitor Family Electric Double Layer | ||

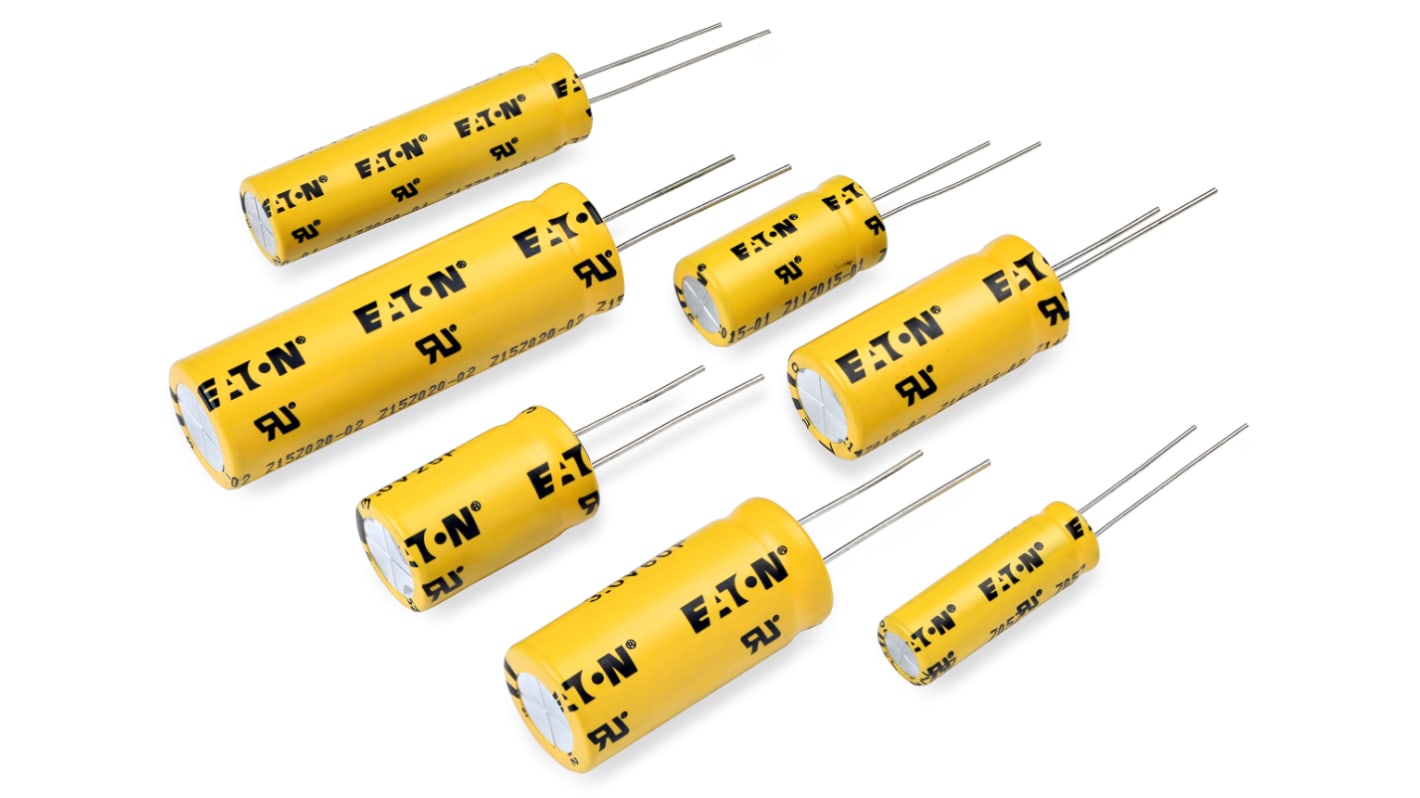

Cooper Bussman TV Series Super capacitors
Cooper Bussman TV Series cells provide ultra-high capacitance energy storage for high-power charge/discharge cycling, peak power shaving and back up power applications. They also provide power to safely shut down systems and avoid data loss when main power is disconnected.
Features
3.0 V operating voltage for high power and High energy
Ultra low ESR for high-power density
Large capacitance for high energy density
Ultra low ESR for high-power density
Large capacitance for high energy density
Applications
Electric, Gas, Water smart meters
RF radio pulse power
Storage server
Industrial backup / ride through
Pulse power
Solar capture
RF radio pulse power
Storage server
Industrial backup / ride through
Pulse power
Solar capture
Note
Eaton formerly known as Bussmann
Aluminium (EDLC) Super Capacitors
