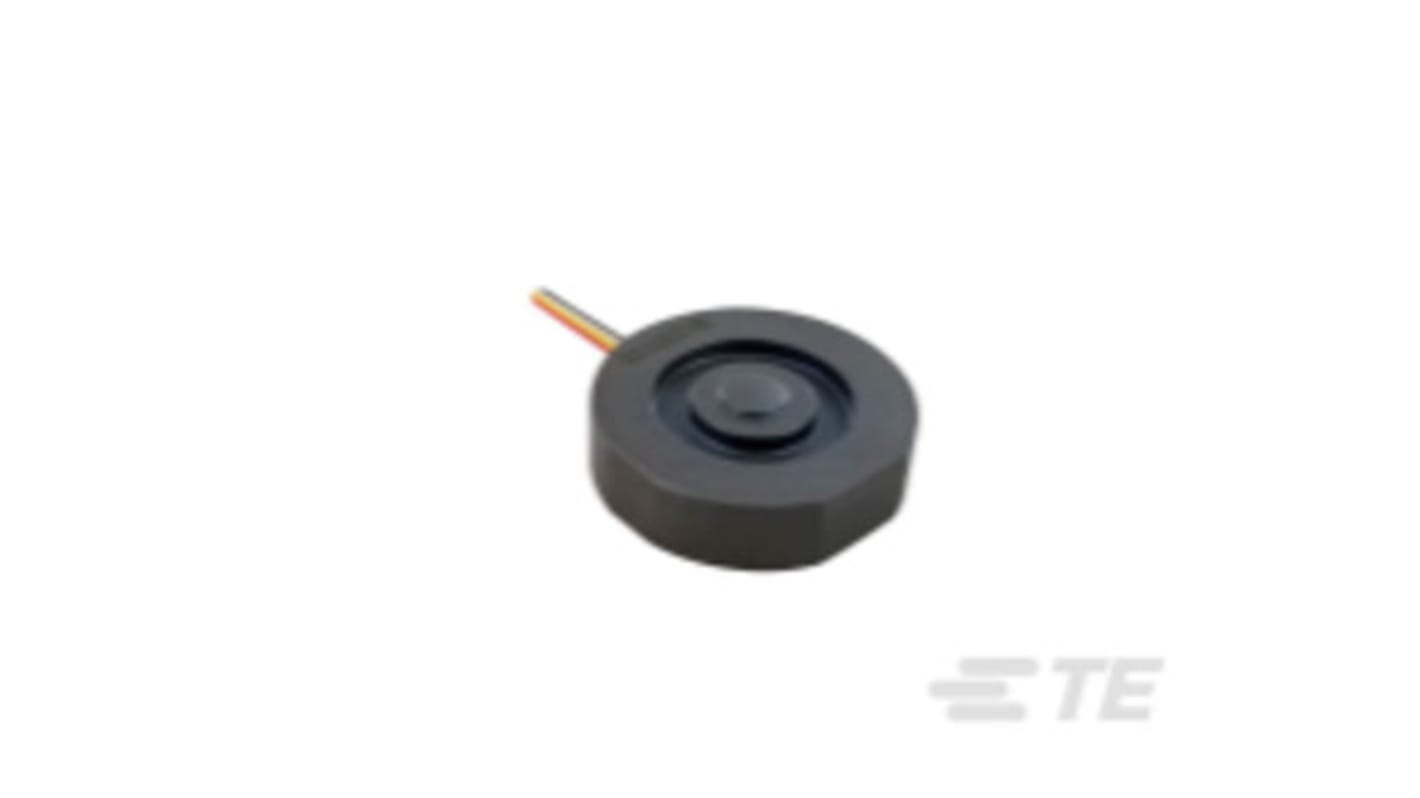

TE Connectivity FX29 Series Robust Load Cell, 0 lbf, Compression Measure, 45.3 kg
- RS Stock No.:
- 207-4696
- Mfr. Part No.:
- FX29K0-100A-0100-L
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£34.95
(exc. VAT)
£41.94
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £34.95 |
| 5 - 9 | £33.17 |
| 10 + | £29.60 |
*price indicative
- RS Stock No.:
- 207-4696
- Mfr. Part No.:
- FX29K0-100A-0100-L
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Load Cell | |
| Force Measured | Compression | |
| Series | FX29 | |
| Sensor Type | Robust | |
| IP Rating | IP43 | |
| Housing Material | Stainless Steel | |
| Width | 19.12mm | |
| Minimum Force/Load Measurement | 0lbf | |
| Minimum Operating Temperature | 0°C | |
| Maximum Force/Load Measurement | 45.3kg | |
| Maximum Operating Temperature | 50°C | |
| Length | 100mm | |
| Depth | 5.45mm | |
| Standards/Approvals | EN55032 Class A, CE, RoHS, IEC61000-4-3, IEC61000-4-2 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Load Cell | ||
Force Measured Compression | ||
Series FX29 | ||
Sensor Type Robust | ||
IP Rating IP43 | ||
Housing Material Stainless Steel | ||
Width 19.12mm | ||
Minimum Force/Load Measurement 0lbf | ||
Minimum Operating Temperature 0°C | ||
Maximum Force/Load Measurement 45.3kg | ||
Maximum Operating Temperature 50°C | ||
Length 100mm | ||
Depth 5.45mm | ||
Standards/Approvals EN55032 Class A, CE, RoHS, IEC61000-4-3, IEC61000-4-2 | ||
The TE Connectivity FX29 series 500 Newtons compact compression load cell that offers exceptional price-to-performance in a robust sensor package. It is used in medical infusion pumps, analog and digital scales, power tools and robotics.
Low power consumption
Compact design
Amplified analog outputs
High over range capability
