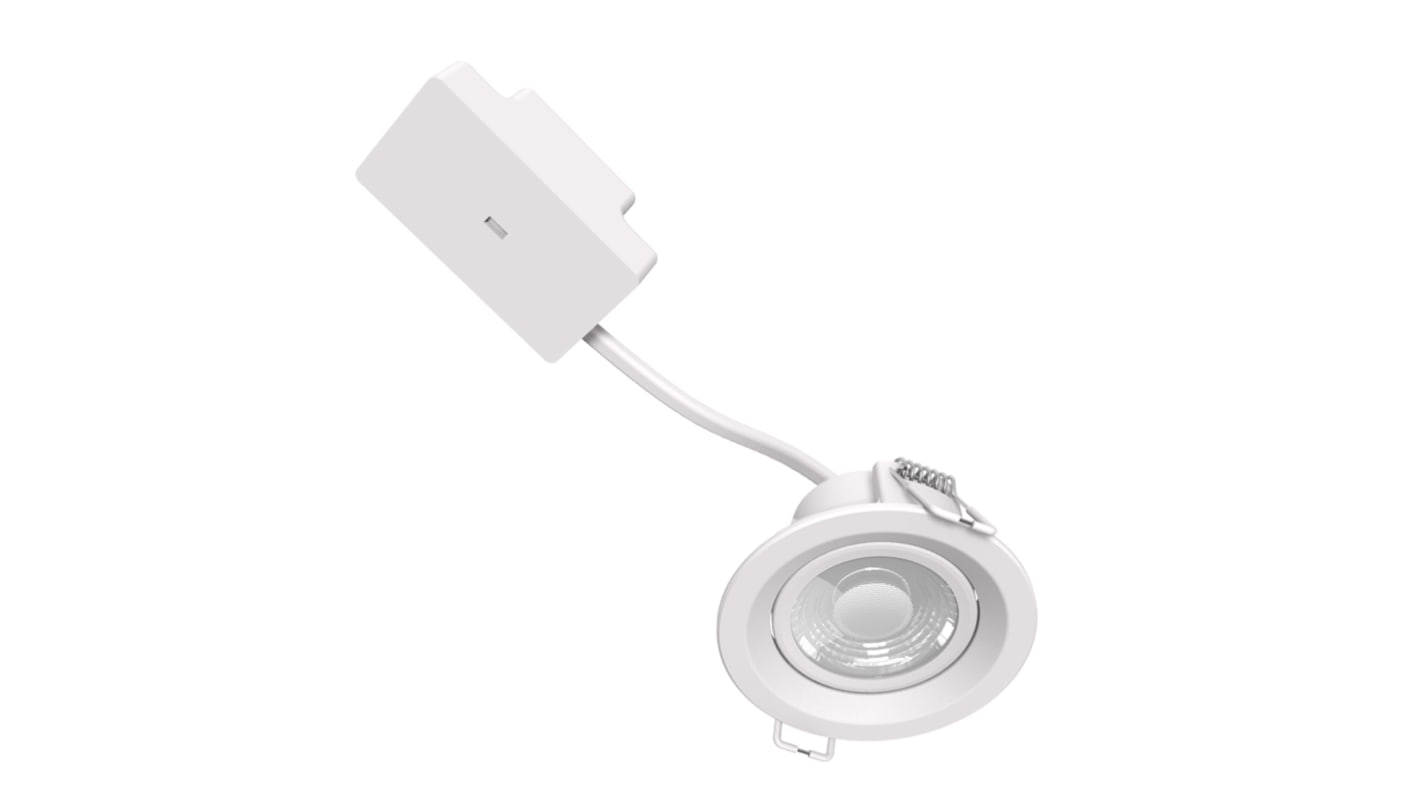

SHOT LED Adjustable Downlight 85 mm 46 mm 240V 6 W
- RS Stock No.:
- 270-0805
- Mfr. Part No.:
- BODO62O
- Brand:
- SHOT
Subtotal (1 unit)*
£10.72
(exc. VAT)
£12.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.72 |
*price indicative
- RS Stock No.:
- 270-0805
- Mfr. Part No.:
- BODO62O
- Brand:
- SHOT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SHOT | |
| Lamp Type | LED | |
| Sub Type | Adjustable Downlight | |
| Product Type | Downlight | |
| Luminous Flux | 425lm | |
| Housing Material | Thermoplastic, Metal | |
| Voltage | 240V | |
| Diameter | 85mm | |
| Power | 6W | |
| IP Rating | IP20 | |
| Luminous Efficacy | 107.5Lm/W | |
| Lifespan | 25000h | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 40°C | |
| Colour Temperature | 3000k | |
| Standards/Approvals | RoHS | |
| Length | 85mm | |
| Colour | White | |
| Depth | 46mm | |
| Cutout Size | 75mm | |
| Dimmable | No | |
| Series | BODO | |
| Diffuser Finish | Satin | |
| Select all | ||
|---|---|---|
Brand SHOT | ||
Lamp Type LED | ||
Sub Type Adjustable Downlight | ||
Product Type Downlight | ||
Luminous Flux 425lm | ||
Housing Material Thermoplastic, Metal | ||
Voltage 240V | ||
Diameter 85mm | ||
Power 6W | ||
IP Rating IP20 | ||
Luminous Efficacy 107.5Lm/W | ||
Lifespan 25000h | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 40°C | ||
Colour Temperature 3000k | ||
Standards/Approvals RoHS | ||
Length 85mm | ||
Colour White | ||
Depth 46mm | ||
Cutout Size 75mm | ||
Dimmable No | ||
Series BODO | ||
Diffuser Finish Satin | ||
- COO (Country of Origin):
- CN
The SHOT Downlights has recessed LED luminaire in thermoplastic material with integrated power supply. White body in thermoplastic and metal, with satin thermoplastic diffuser.
Complete with terminal for simplified wiring
Lightweight and ideal for false ceilings
36 degree beam angle
Adjustable version
