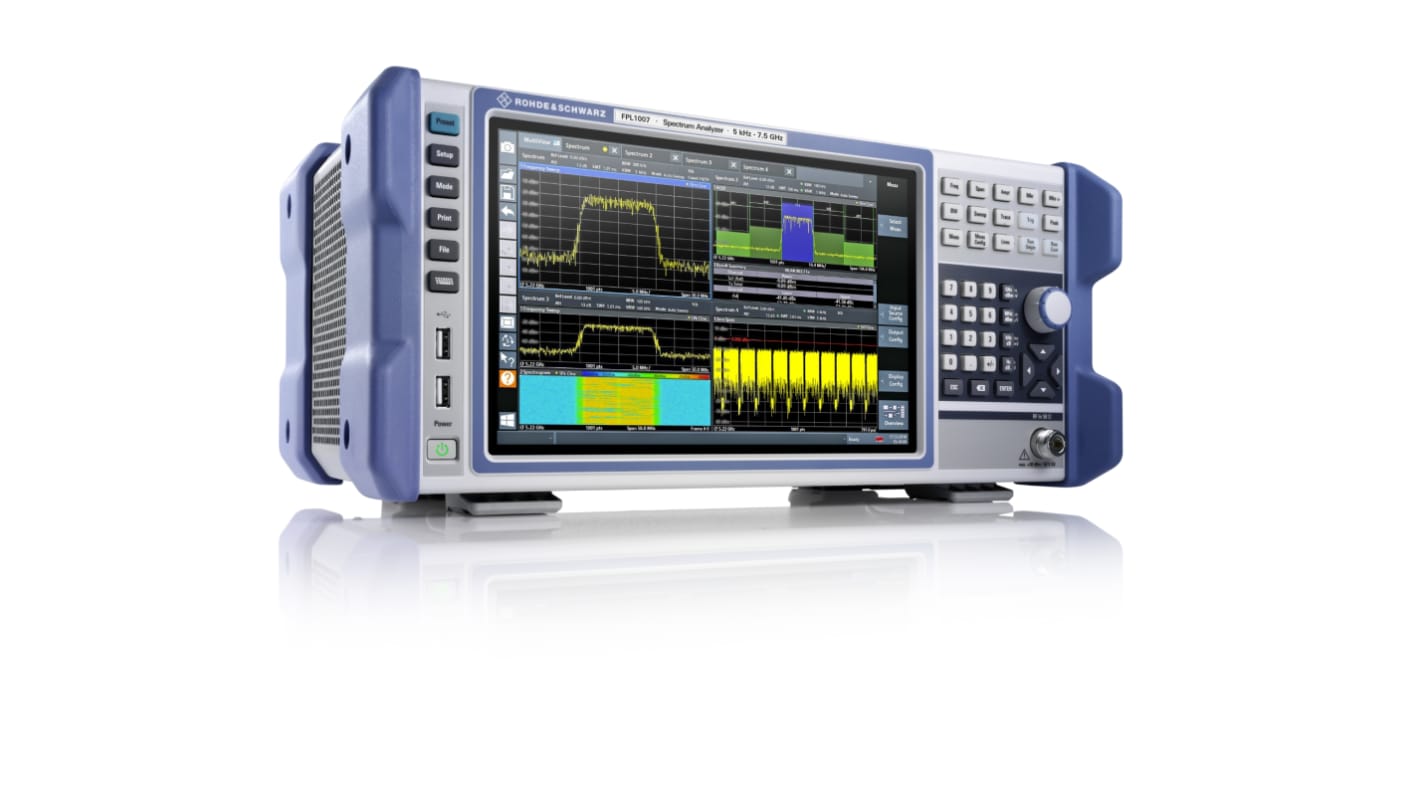

Rohde & Schwarz FPL1007 Desktop FPL1000 Spectrum Analyser Bundle, 40 MHz
- RS Stock No.:
- 230-7786
- Distrelec Article No.:
- 302-29-604
- Mfr. Part No.:
- FPL-EMI7
- Brand:
- Rohde & Schwarz
Subtotal (1 unit)*
£14,717.53
(exc. VAT)
£17,661.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14,717.53 |
*price indicative
- RS Stock No.:
- 230-7786
- Distrelec Article No.:
- 302-29-604
- Mfr. Part No.:
- FPL-EMI7
- Brand:
- Rohde & Schwarz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Bandwidth | 40MHz | |
| Product Type | Spectrum Analyser Bundle | |
| Number of Channels | 1 | |
| Series | FPL1000 | |
| Maximum Frequency | 7.5GHz | |
| Minimum Frequency | 5kHz | |
| Display Type | TFT Colour | |
| Power Source | Battery | |
| Markers | Frequency | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| RF Input | BNC | |
| Standards/Approvals | CAN/CSAC22.2 No. 61010.112, EN 6006826, VDE, EN 60068264, EN 613261 Class B, CSA, IEC 610101, MILPRF28800F Class 2, EN 610101, CSANRTL, UL 610101 | |
| Weight | 3.1kg | |
| Interface Type | LAN, USB | |
| Width | 400mm | |
| Length | 203mm | |
| Height | 127mm | |
| Desktop/Handheld | Desktop | |
| Model Number | FPL1007 | |
| Battery Type | Lithium-ion | |
| Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Bandwidth 40MHz | ||
Product Type Spectrum Analyser Bundle | ||
Number of Channels 1 | ||
Series FPL1000 | ||
Maximum Frequency 7.5GHz | ||
Minimum Frequency 5kHz | ||
Display Type TFT Colour | ||
Power Source Battery | ||
Markers Frequency | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
RF Input BNC | ||
Standards/Approvals CAN/CSAC22.2 No. 61010.112, EN 6006826, VDE, EN 60068264, EN 613261 Class B, CSA, IEC 610101, MILPRF28800F Class 2, EN 610101, CSANRTL, UL 610101 | ||
Weight 3.1kg | ||
Interface Type LAN, USB | ||
Width 400mm | ||
Length 203mm | ||
Height 127mm | ||
Desktop/Handheld Desktop | ||
Model Number FPL1007 | ||
Battery Type Lithium-ion | ||
- COO (Country of Origin):
- CZ
FPL1007 Spectrum Analyser + FPL1-B5 + FPL1-B9 (Internal Generator) + FPL1-B22 (RF Preamplifier) + FPL1-K54
FPL-EMI7 Spectrum Analyser Package consists of
FPL1007 Spectrum Analyzer, 5 kHz to 7.5GHz
FPL1-B5 Additional Interfaces
FPL1-B9 Internal Generator
FPL1-B22 RF Preamplifier
FPL1-K54 EMI Meas. Application
One instrument for multiple applications
Solid RF performance
Intuitive user Interface
The Rohde & Schwarz signal and spectrum analyser makes measuring fast and simple. The intuitive touchscreen is straightforward and easy to use. It has 5 kHz to 7.5GHz frequency range.
FPL1-B5 Additional Interfaces
TTL compatible
FPL1-B5 Additional Interfaces is used for controlling the noise source. It has 25-pin D-Sub female connector.
FPL1-B9 Internal Generator
It has independent CW source
–50 dBm to 0 dBm specified level range
FPL1-B9 Internal Generator allows characterization of two-port devices such as power amplifiers or limiters.
FPL1-B22 RF Preamplifier
It is use extend the usable dynamic range and sensitivity
FPL1-B22 RF Preamplifier used to improve sensitivity of the measurement for measuring devices with a low noise figure, e.g. LNAs.
