Rohde & Schwarz FPC-P1 Desktop FPC1000 Spectrum Analyser, 1 GHz

RS Stock No.:: 144-8210
Mfr. Part No.:: FPC-P1
Brand:: Rohde & Schwarz

Rohde & Schwarz FPC-P1 Desktop FPC1000 Spectrum Analyser, 1 GHz

Subtotal (1 unit)*

£1,561.34

(exc. VAT)

£1,873.61

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 8 unit(s) shipping from 04 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,561.34

*price indicative

RS Stock No.:: 144-8210
Mfr. Part No.:: FPC-P1
Brand:: Rohde & Schwarz

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rohde & Schwarz
	Bandwidth	1GHz
	Product Type	Spectrum Analyser
	Number of Channels	1
	Wave Traces	Minimum Hold, Average, Maximum Hold
	Setting Modes	Span
	Series	FPC1000
	Maximum Frequency	1GHz
	Minimum Frequency	5kHz
	Display Type	LCD
	Power Source	Battery
	Screen Size	10.1 in
	Markers	Frequency
	Minimum Operating Temperature	10°C
	Maximum Operating Temperature	40°C
	RF Input	N Connector
	Weight	3kg
	Standards/Approvals	VDE, EN 6006826, EN 613261 Class B, UL 610101, EN 60068264, EN 610101, CSANRTL, MILPRF28800F Class 2, CSA, IEC 610101, CAN/CSAC22.2 No. 61010.112
	Height	185mm
	Width	156mm
	Interface Type	USB
	Length	396mm
	Desktop/Handheld	Desktop
	Model Number	FPC-P1

	Select all
	Brand Rohde & Schwarz
	Bandwidth 1GHz
	Product Type Spectrum Analyser
	Number of Channels 1
	Wave Traces Minimum Hold, Average, Maximum Hold
	Setting Modes Span
	Series FPC1000
	Maximum Frequency 1GHz
	Minimum Frequency 5kHz
	Display Type LCD
	Power Source Battery
	Screen Size 10.1 in
	Markers Frequency
	Minimum Operating Temperature 10°C
	Maximum Operating Temperature 40°C
	RF Input N Connector
	Weight 3kg
	Standards/Approvals VDE, EN 6006826, EN 613261 Class B, UL 610101, EN 60068264, EN 610101, CSANRTL, MILPRF28800F Class 2, CSA, IEC 610101, CAN/CSAC22.2 No. 61010.112
	Height 185mm
	Width 156mm
	Interface Type USB
	Length 396mm
	Desktop/Handheld Desktop
	Model Number FPC-P1

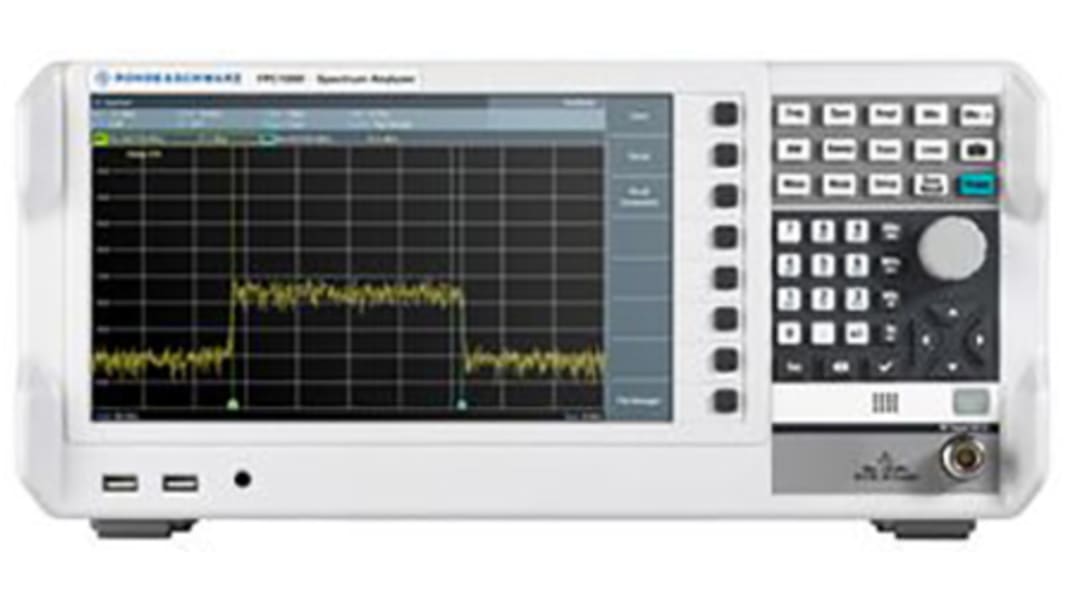

Rohde & Schwarz Spectrum Analyser

The Rohde & Schwarz spectrum analyser has 1 channel and its operating frequency ranges from 5kHz and 1GHz. The extremely low noise floor and high maximum input power combine to provide the best dynamic range. The resolution bandwidth can be set to 1Hz for finer spectral details. This spectrum analyser has 26% larger display and has a 160% higher resolution than other instruments. This analyser can be controlled via smart wireless remote control software. It also supports wired Ethernet and wireless Wi-Fi connectivity. It also has R&S InstrumentView for Windows and for iOS/Android it has app-based R&S MobileView platforms that enable remote controlling and measurement anytime and anywhere.

Features and Benefits

Provides low noise floor of -150dBm

Optional FPC1000-B22 preamplifier to increase sensitivity

Measures high-power signals of up to 30dBm (1W)

Screen size is 10.1in

Six markers shown vividly in different colours

Two USB 2.0 ports for storage media and connecting accessories, headphone jack, audio speaker and RF input

Soft menu selection for quick access to key tools

Measurement set-up buttons

Approximately 15 seconds boot time

Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis and R&S FPC-K55 advanced measurement

Optional accessories ZZA-FPC1 19in rackmount kit, HZ-15 Near field probes, 30MHz to 3GHz, HZ-16 Amplifier, 100kHz to 3GHz TB-Z3 and a soft carrying case

Wi-Fi enabled

Supported by included remote control and measurement software

100% software upgradeable via key code

3-year standard warranty

Length is 396mm, width is 156mm and height is 185mm

Applications

Telecommunication

Electronics laboratories

Educational institutes

Electronics designing

Service and maintenance

Certifications

VDE certified

GS certified

KC certified

UL 61010-1 approval

CAN/CSA-C22 certified

IEC 61010-1

EN 61010-1

ISO9001

ISO14001

IEC 60068-2-30

IEC 60068-2-6

IEC 60068-2-64

IEC 60068-2-27
