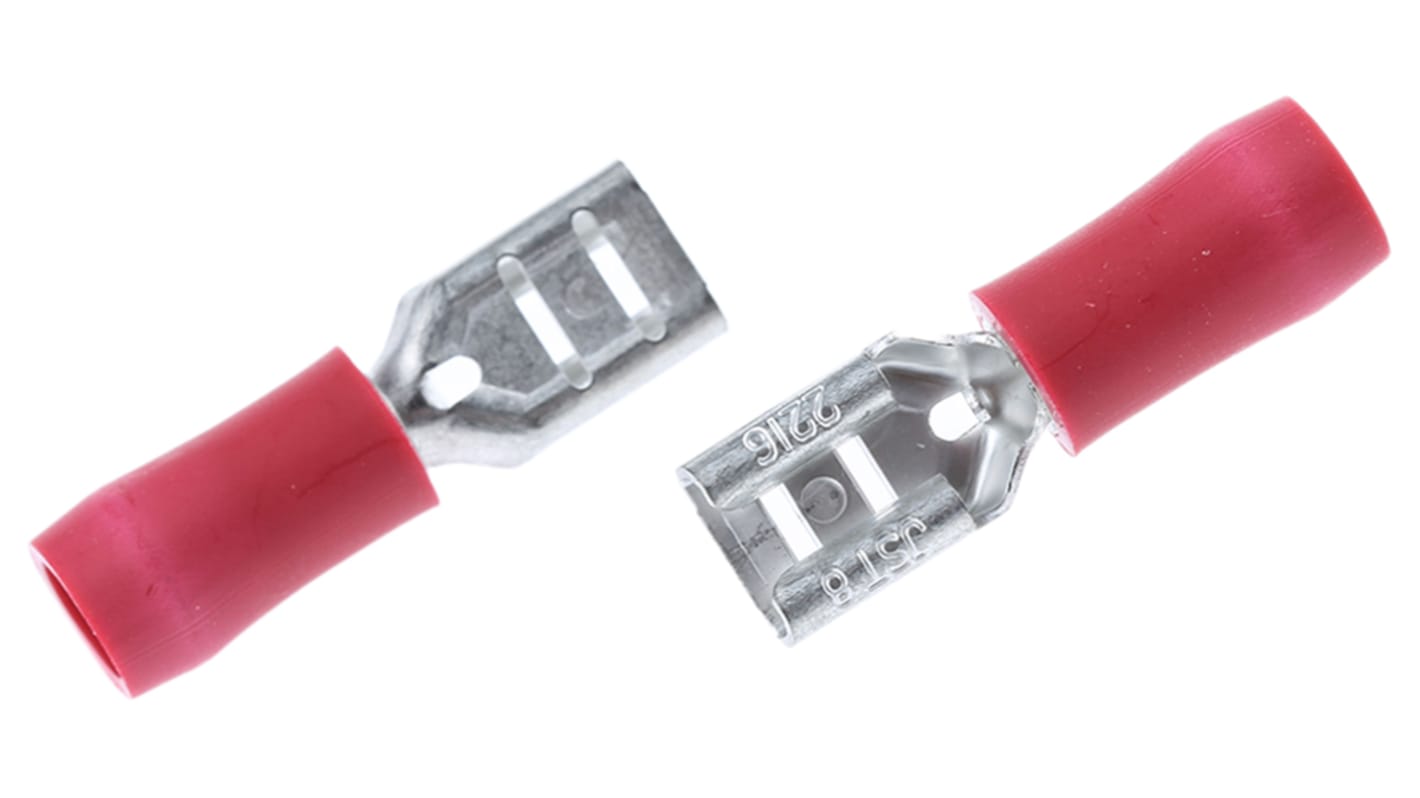

JST FVDDF Red Insulated Female Spade Connector, Crimp, 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG
- RS Stock No.:
- 688-1091
- Mfr. Part No.:
- FVDDF1.25-187A-8(S)(LF)
- Brand:
- JST
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£12.90
(exc. VAT)
£15.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,200 unit(s) shipping from 20 July 2026
- Plus 4,700 unit(s) shipping from 27 July 2026
- Plus 3,000 unit(s) shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.129 | £12.90 |
| 500 + | £0.10 | £10.00 |
*price indicative
- RS Stock No.:
- 688-1091
- Mfr. Part No.:
- FVDDF1.25-187A-8(S)(LF)
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Female | |
| Tab Thickness | 0.8mm | |
| Tab Width | 5.7mm | |
| Tab Size | 4.75 x 0.8 mm | |
| Insulation | Insulated | |
| Minimum Wire Size mm² | 0.25mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 1.65mm² | |
| Colour | Red | |
| Contact Material | Copper | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Vinyl | |
| Overall Length | 18.7mm | |
| Series | FVDDF | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Female | ||
Tab Thickness 0.8mm | ||
Tab Width 5.7mm | ||
Tab Size 4.75 x 0.8 mm | ||
Insulation Insulated | ||
Minimum Wire Size mm² 0.25mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 1.65mm² | ||
Colour Red | ||
Contact Material Copper | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Vinyl | ||
Overall Length 18.7mm | ||
Series FVDDF | ||
Non Compliant
JST Series Insulated Crimp Receptacle Terminals
A range of insulated crimp receptacle terminals with a copper sleeve and vinyl insulation. These crimp receptacle terminals are available for use with a variety tab sizes including .110, .187, .250 and .375 and a range of wire sizes from 26 to 10 AWG
JST Insulated Crimp Terminals
