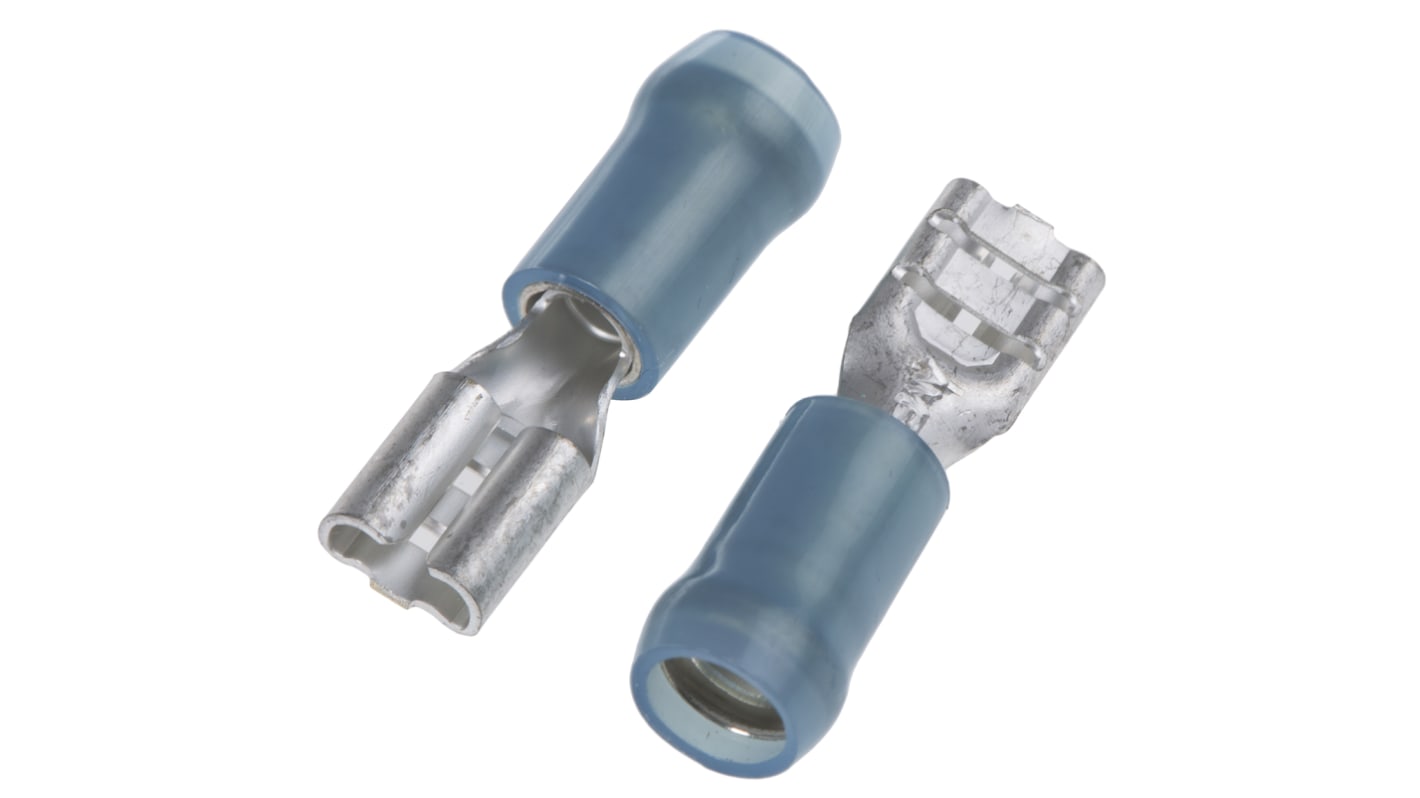

TE Connectivity PIDG FASTON .187 Blue Insulated Female Spade Connector, Crimp, 4.8 x 0.8 mm Tab Size 16 AWG to 14 AWG
- RS Stock No.:
- 457-5328
- Distrelec Article No.:
- 304-43-059
- Mfr. Part No.:
- 9-160479-2
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£38.30
(exc. VAT)
£46.00
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 100 left, ready to ship
- Plus 400 left, ready to ship from another location
- Plus 3,200 left, shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.383 | £38.30 |
| 500 + | £0.333 | £33.30 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£24.60
(exc. VAT)
£29.52
(inc. VAT)
- RS Stock No.:
- 457-5328
- Distrelec Article No.:
- 304-43-059
- Mfr. Part No.:
- 9-160479-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Female | |
| Tab Thickness | 0.8mm | |
| Tab Size | 4.8 x 0.8 mm | |
| Tab Width | 4.8mm | |
| Insulation | Insulated | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size mm² | 1.3mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Colour | Blue | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Nylon | |
| Overall Length | 0.862in | |
| Series | PIDG FASTON .187 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Female | ||
Tab Thickness 0.8mm | ||
Tab Size 4.8 x 0.8 mm | ||
Tab Width 4.8mm | ||
Insulation Insulated | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size mm² 1.3mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 14AWG | ||
Colour Blue | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Nylon | ||
Overall Length 0.862in | ||
Series PIDG FASTON .187 | ||
TE Connectivity PIDG Faston 187 Receptacle Wire Crimp Terminals
PIDG insulated Faston 187 quick disconnect receptacle wire crimp terminals with a mating area interface of 5.0 x 0.80mm. These PIDG Faston 197 quick disconnect receptacle crimp terminals consist of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG insulated Faston 197 quick disconnect receptacle wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
Red 0.3 - 1.5 mm²
Blue 1 - 2.50 mm²
Yellow 0.12 - 0.24 mm²
TE Connectivity PIDG Terminals
