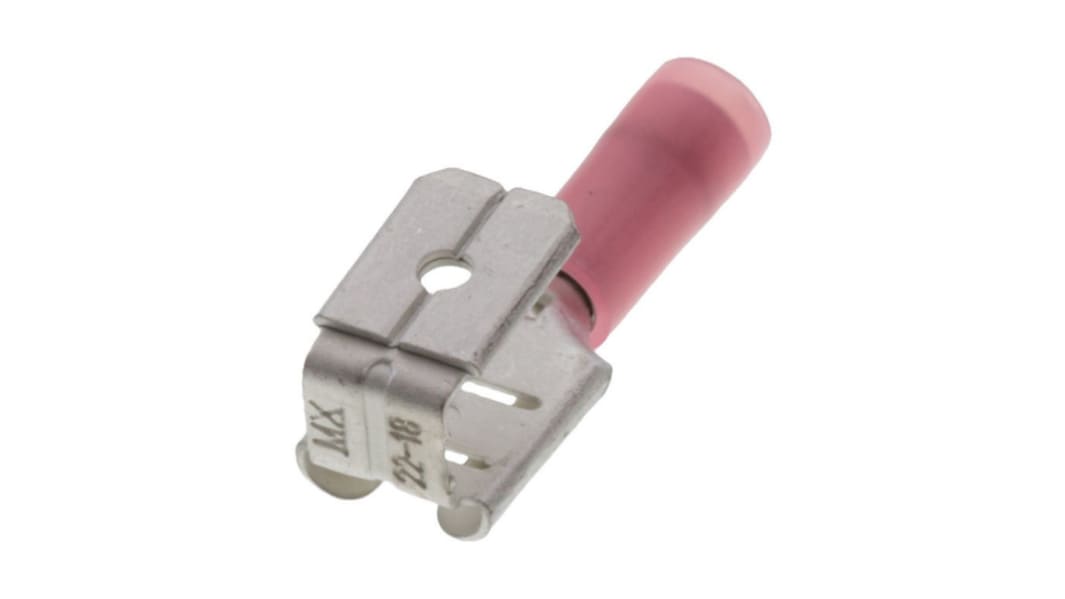

Molex 19012 Red Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 18 AWG to 22 AWG
- RS Stock No.:
- 287-2209
- Mfr. Part No.:
- 190120029
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 1000 units)*
£356.00
(exc. VAT)
£427.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,000 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 1000 | £0.356 | £356.00 |
| 2000 - 4000 | £0.333 | £333.00 |
| 5000 + | £0.321 | £321.00 |
*price indicative
- RS Stock No.:
- 287-2209
- Mfr. Part No.:
- 190120029
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Female | |
| Tab Size | 6.35 x 0.81 mm | |
| Tab Width | 6.35mm | |
| Tab Thickness | 0.81mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 22AWG | |
| Colour | Red | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Nylon | |
| Overall Length | 6.35mm | |
| Series | 19012 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Female | ||
Tab Size 6.35 x 0.81 mm | ||
Tab Width 6.35mm | ||
Tab Thickness 0.81mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 22AWG | ||
Colour Red | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Nylon | ||
Overall Length 6.35mm | ||
Series 19012 | ||
The Molex Avikrimp Piggyback Quick Disconnects is a versatile and reliable electrical terminal designed to enhance your connectivity solutions. With a tab size of 6.35 x 0.81mm, this quick disconnect is suitable for 18 to 22 AWG wires. The red insulator provides insulation and easy identification. Its closed barrel design and partial insulation ensure secure and safe connections. Manufactured with high-quality materials like brass and tin plating, this quick disconnect offers durability and excellent conductivity. It is compliant with EU RoHS regulations, making it environmentally friendly. The Avikrimp Piggyback Quick Disconnect is the ideal choice for various applications requiring fast and easy wire connections.
Red insulator for insulation and easy identification
Closed barrel design and partial insulation for secure connections
High-quality materials, including brass and tin plating, for durability and conductivity
Compliant with EU RoHS regulations for environmental friendliness
