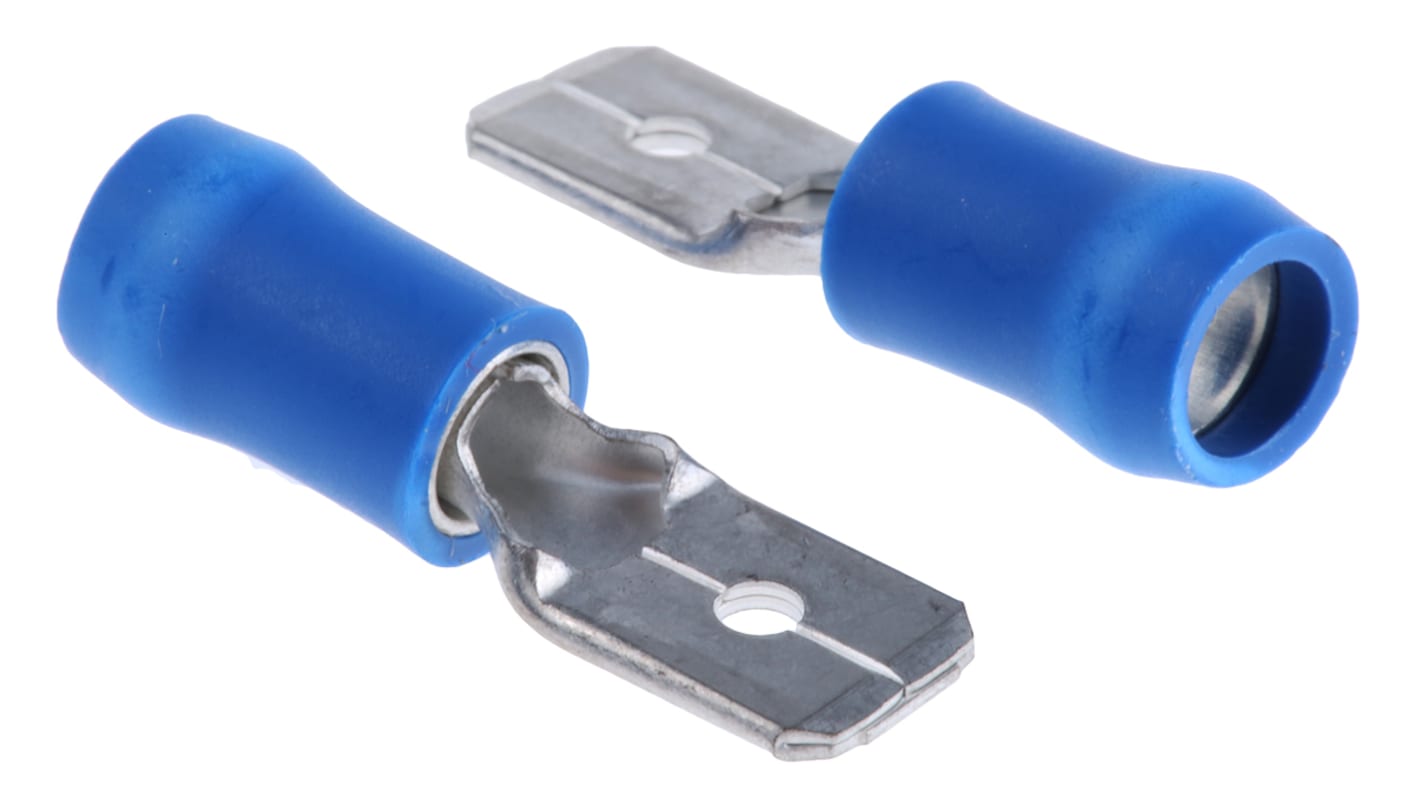

JST FVDDM Blue Insulated Male Spade Connector, Tab, 6.3 x 0.8mm Tab Size, 1mm² to 2.6mm²
- RS Stock No.:
- 166-7440
- Mfr. Part No.:
- FVDDM2-250(PA)
- Brand:
- JST
Subtotal (1 box of 1000 units)*
£151.33
(exc. VAT)
£181.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) shipping from 12 November 2025
- Plus 2 unit(s) shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £151.33 | £0.151 |
*price indicative
- RS Stock No.:
- 166-7440
- Mfr. Part No.:
- FVDDM2-250(PA)
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Type | Tab | |
| Series | FVDDM | |
| Gender | Male | |
| Minimum Wire Size mm² | 1mm² | |
| Maximum Wire Size mm² | 2.6mm² | |
| Tab Thickness | 0.8mm | |
| Tab Size | 6.3 x 0.8mm | |
| Tab Width | 6.3mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Colour | Blue | |
| Termination Method | Crimp | |
| Contact Material | Brass | |
| Insulation Material | Vinyl | |
| Overall Length | 20.5mm | |
Select all | ||
|---|---|---|
Brand JST | ||
Type Tab | ||
Series FVDDM | ||
Gender Male | ||
Minimum Wire Size mm² 1mm² | ||
Maximum Wire Size mm² 2.6mm² | ||
Tab Thickness 0.8mm | ||
Tab Size 6.3 x 0.8mm | ||
Tab Width 6.3mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 14AWG | ||
Colour Blue | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Insulation Material Vinyl | ||
Overall Length 20.5mm | ||
- COO (Country of Origin):
- JP
The JST FVDDM Type - Quick Disconnect Terminal
The FVDDM Type - Quick Disconnect Terminal is made from high grade brass. This material has a high electroconductivity and inherent toughness. Vinyl insulation provides excellent vibration, fire, and oil resistance.
Features & Benefits
• Flared entry
• Anti-vibration sleeve
• High grade brass with excellent electrical characteristics
• Vinyl insulation
