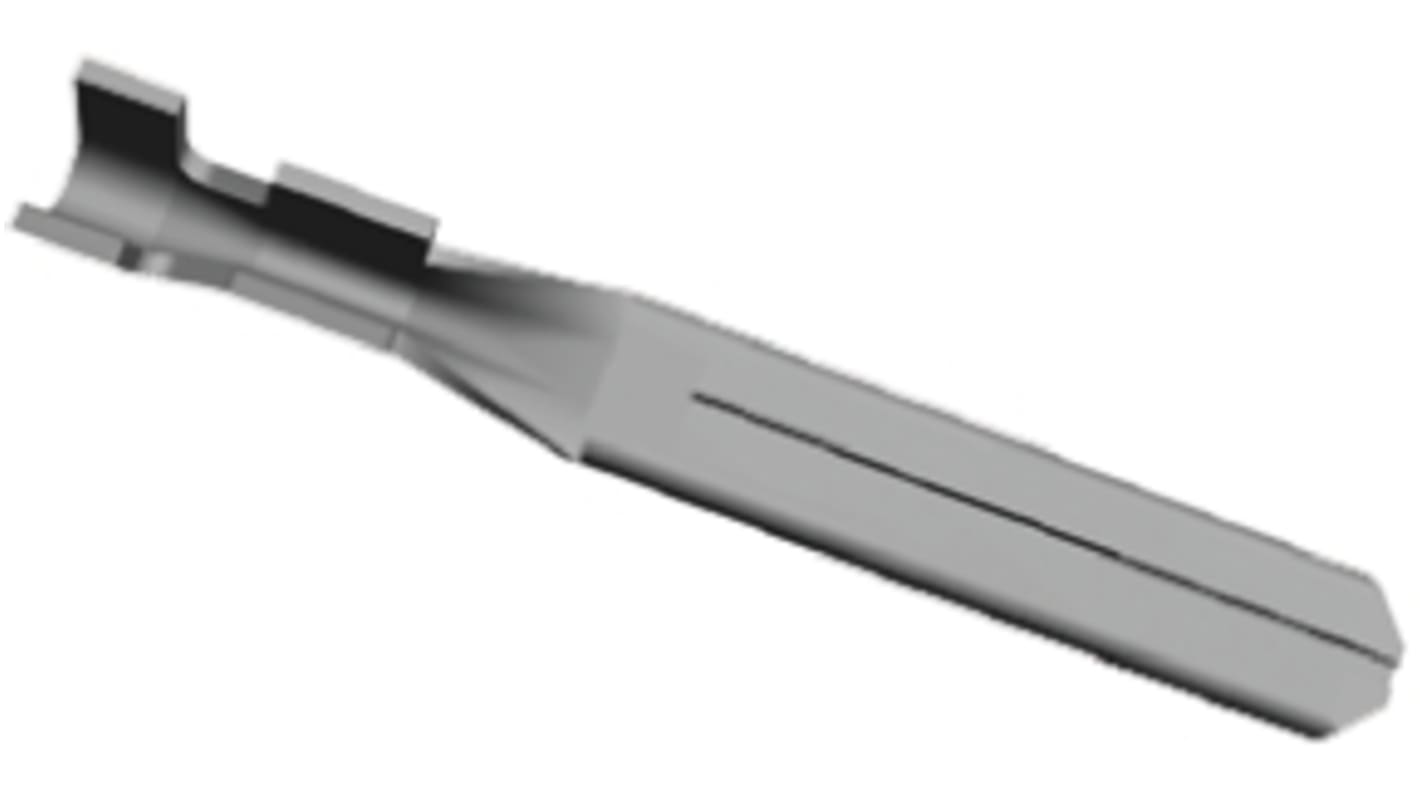

TE Connectivity FASTON .110 Orange Uninsulated Male Spade Connector, Crimp, 2.8 x 0.8 mm Tab Size 22 AWG to 18 AWG
- RS Stock No.:
- 164-3949
- Distrelec Article No.:
- 304-48-612
- Mfr. Part No.:
- 1494210-1
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 164-3949
- Distrelec Article No.:
- 304-48-612
- Mfr. Part No.:
- 1494210-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Male | |
| Tab Width | 2.8mm | |
| Tab Size | 2.8 x 0.8 mm | |
| Tab Thickness | 0.8mm | |
| Insulation | Uninsulated | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size mm² | 0.3mm² | |
| Maximum Wire Size mm² | 0.8mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Colour | Orange | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Overall Length | 14.2mm | |
| Series | FASTON .110 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Male | ||
Tab Width 2.8mm | ||
Tab Size 2.8 x 0.8 mm | ||
Tab Thickness 0.8mm | ||
Insulation Uninsulated | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size mm² 0.3mm² | ||
Maximum Wire Size mm² 0.8mm² | ||
Minimum Wire Size AWG 22AWG | ||
Colour Orange | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Overall Length 14.2mm | ||
Series FASTON .110 | ||
- COO (Country of Origin):
- CN
TE Connectivity FASTON 110 Series Tab Crimp Terminals
FASTON 110 series tab crimp terminals designed for quick and efficient connection and reliability.
