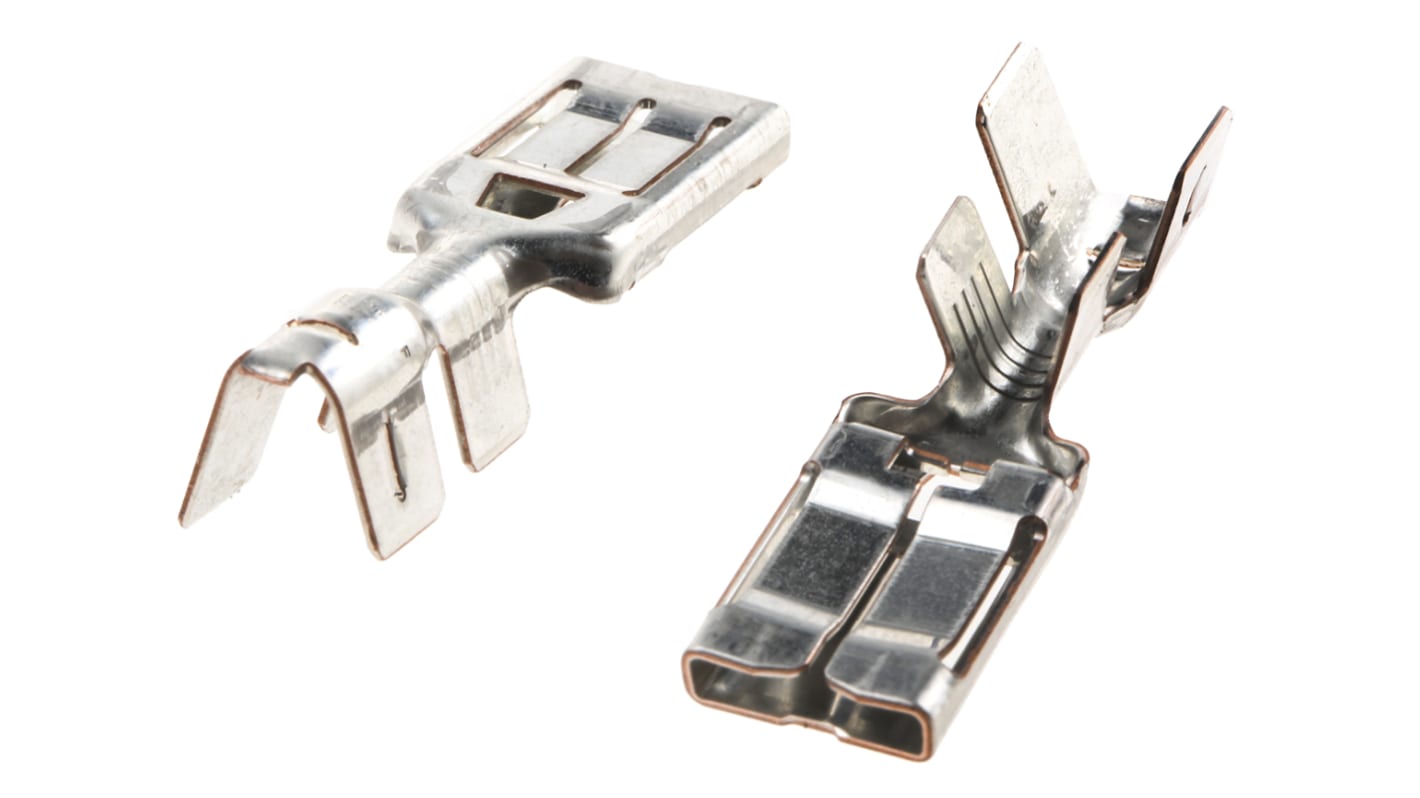

TE Connectivity PRONER .315 Black Uninsulated Female Spade Connector, Crimp, 8 x 1 mm Tab Size 12 AWG to 10 AWG
- RS Stock No.:
- 164-2445
- Mfr. Part No.:
- 1544227-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 1300 units)*
£350.36
(exc. VAT)
£420.43
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £350.36 | £0.27 |
*price indicative
- RS Stock No.:
- 164-2445
- Mfr. Part No.:
- 1544227-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Width | 8mm | |
| Tab Thickness | 1mm | |
| Tab Size | 8 x 1 mm | |
| Insulation | Uninsulated | |
| Maximum Wire Size AWG | 10AWG | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Minimum Wire Size mm² | 3mm² | |
| Colour | Black | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Overall Length | 36.4mm | |
| Series | PRONER .315 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Width 8mm | ||
Tab Thickness 1mm | ||
Tab Size 8 x 1 mm | ||
Insulation Uninsulated | ||
Maximum Wire Size AWG 10AWG | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size AWG 12AWG | ||
Minimum Wire Size mm² 3mm² | ||
Colour Black | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Overall Length 36.4mm | ||
Series PRONER .315 | ||
- COO (Country of Origin):
- DE
TE Connectivity Crimp Receptacles
The TE Connectivity PRONER.315 series is a female automotive wire connector. This crimp receptacle connector designed to meet the requirements of the automotive industry for a reliable sealed connector. The contact is made of copper allow tin-plated material.
Features and Benefits
• Free hanging mount style
• Operating temperature range between -40°C and 125°C
• Wire size 10-12AWG
TE Connectivity Proner Series FASTON Crimp Terminals
A range of Proner series FASTON crimp terminals
Faston
