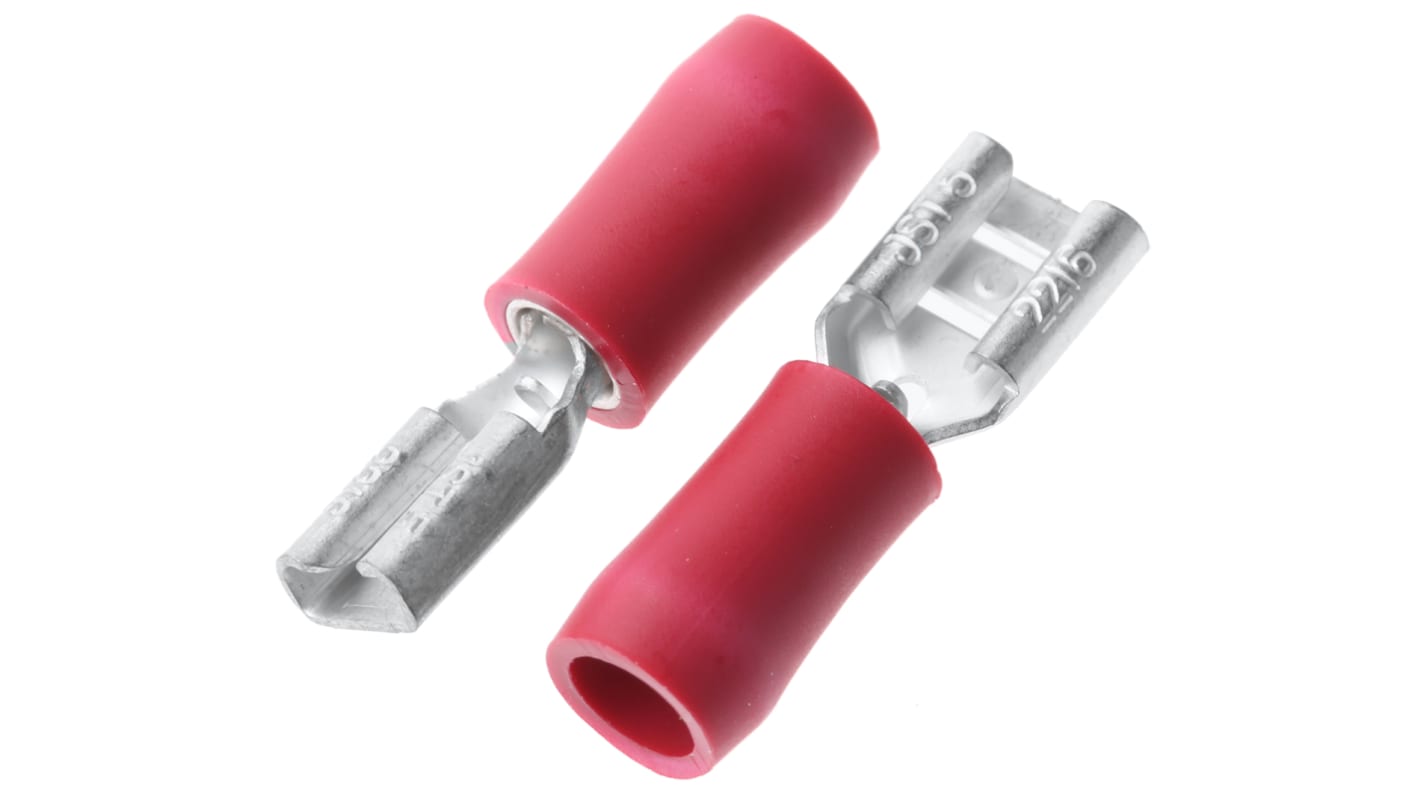

JST FVDDF Red Insulated Female Spade Connector, Crimp, 4.75 x 0.5 mm Tab Size 22 AWG to 16 AWG
- RS Stock No.:
- 161-7855
- Mfr. Part No.:
- FVDDF1.25-187A-5(S)(LF)
- Brand:
- JST
Subtotal (1 box of 1000 units)*
£71.86
(exc. VAT)
£86.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
- Plus 8 unit(s) shipping from 11 May 2026
- Plus 6 unit(s) shipping from 22 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £71.86 | £0.072 |
*price indicative
- RS Stock No.:
- 161-7855
- Mfr. Part No.:
- FVDDF1.25-187A-5(S)(LF)
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Thickness | 0.5mm | |
| Tab Size | 4.75 x 0.5 mm | |
| Tab Width | 5.7mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size mm² | 0.25mm² | |
| Colour | Red | |
| Contact Material | Copper | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Vinyl | |
| Overall Length | 18.7mm | |
| Series | FVDDF | |
| Select all | ||
|---|---|---|
Brand JST | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Thickness 0.5mm | ||
Tab Size 4.75 x 0.5 mm | ||
Tab Width 5.7mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 1.65mm² | ||
Minimum Wire Size mm² 0.25mm² | ||
Colour Red | ||
Contact Material Copper | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Vinyl | ||
Overall Length 18.7mm | ||
Series FVDDF | ||
JST Series Insulated Crimp Receptacle Terminals
A range of insulated crimp receptacle terminals with a copper sleeve and vinyl insulation. These crimp receptacle terminals are available for use with a variety tab sizes including .110, .187, .250 and .375 and a range of wire sizes from 26 to 10 AWG
JST Insulated Crimp Terminals
