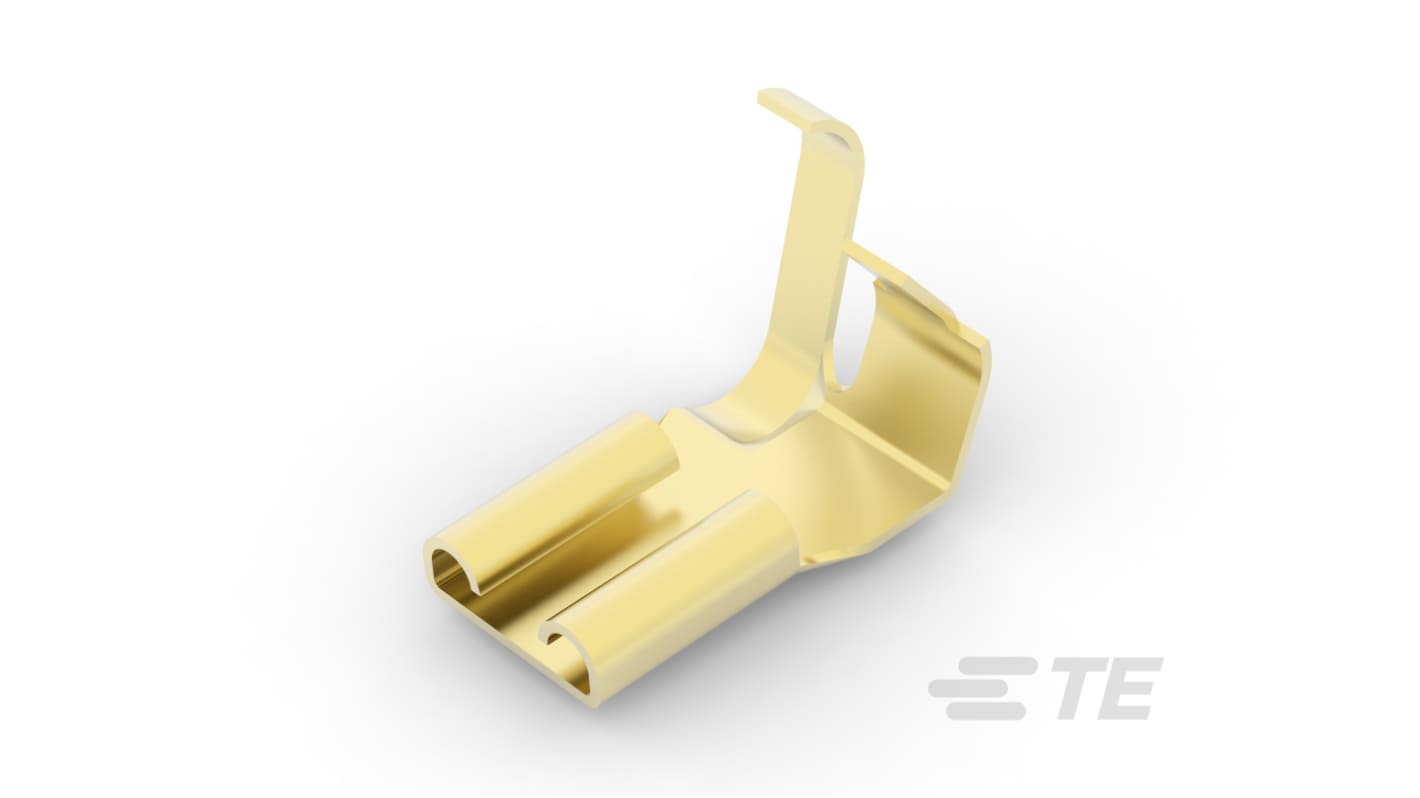

TE Connectivity FASTON .250 Brass Uninsulated Female Spade Connector, 6.35 x 0.81 mm Tab Size 18 AWG to 12 AWG
- RS Stock No.:
- 479-749
- Distrelec Article No.:
- 304-51-993
- Mfr. Part No.:
- 42511-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 4000 units)*
£422.87
(exc. VAT)
£507.44
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £422.87 | £0.106 |
*price indicative
- RS Stock No.:
- 479-749
- Distrelec Article No.:
- 304-51-993
- Mfr. Part No.:
- 42511-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Width | 6.35mm | |
| Tab Thickness | 0.81mm | |
| Tab Size | 6.35 x 0.81 mm | |
| Insulation | Uninsulated | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Brass | |
| Contact Material | Brass | |
| Contact Plating | Unplated | |
| Orientation | Flag | |
| Standards/Approvals | RoHS | |
| Overall Length | 17.02mm | |
| Series | FASTON .250 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Width 6.35mm | ||
Tab Thickness 0.81mm | ||
Tab Size 6.35 x 0.81 mm | ||
Insulation Uninsulated | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Brass | ||
Contact Material Brass | ||
Contact Plating Unplated | ||
Orientation Flag | ||
Standards/Approvals RoHS | ||
Overall Length 17.02mm | ||
Series FASTON .250 | ||
- COO (Country of Origin):
- US
The TE Connectivity Quick disconnect receptacle is engineered for versatile connectivity, catering to a wide range of wire sizes and wire types. Designed to facilitate seamless connections in various applications, this product optimally supports an operating temperature range from -40°C to 110°C, ensuring reliability even in challenging environments. Crafted from high-quality brass with an unplated finish, it offers excellent conductivity and durability. It features a convenient flag terminal orientation, making it easy to use, while the dimpled mating retention regulates secure connections. This receptacle is compatible with discrete wire types and is aimed at enhancing operational efficiency, promising a conducive solution for both industrial and commercial installations. With compliance to EU RoHS and other industry standards, you can be assured of its responsible manufacturing.
Low insertion force enhances ease of use
Supports a broad range of wire sizes from 18 to 12 AWG
Flag orientation optimises space in tight installations
Dimpled mating retention secures connection integrity
Uninsulated design offers versatility for various applications
Constructed from brass, ensuring long-lasting performance
Compatible with multiple industry standards for wider usability
Available in high quantities, facilitating bulk purchasing
Suitable for applications requiring robust and reliable connectivity
