e2s SONFL1X Series Amber Sounder-Beacon Combination, IP66 230V ac Wall 100 dB @ 1m
- RS Stock No.:
- 617-3564
- Mfr. Part No.:
- SONFL1XAC115W/A
- Brand:
- e2s
Subtotal (1 unit)*
£137.95
(exc. VAT)
£165.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 12 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £137.95 |
*price indicative
- RS Stock No.:
- 617-3564
- Mfr. Part No.:
- SONFL1XAC115W/A
- Brand:
- e2s
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | e2s | |
| Product Type | Sounder-Beacon Combination | |
| Lens Colour | Amber | |
| Minimum Sound Level | 95dB | |
| Current Type | AC | |
| Light Effect | Flashing | |
| Mount Type | Wall | |
| Sounder Type | Electronic | |
| Series | SONFL1X | |
| Maximum Supply Voltage | 230V ac | |
| Bulb Type | Xenon | |
| Sound Level at 1m | 100dB | |
| Minimum Operating Temperature | -25°C | |
| Housing Colour | White | |
| Maximum Operating Temperature | 55°C | |
| Maximum Sound Level | 100dB | |
| Number of Tones | 10 | |
| Hazardous Area Certification | No | |
| IP Rating | IP66 | |
| Housing Material | ABS | |
| Standards/Approvals | CE, cULus, EAC, VdS | |
| Select all | ||
|---|---|---|
Brand e2s | ||
Product Type Sounder-Beacon Combination | ||
Lens Colour Amber | ||
Minimum Sound Level 95dB | ||
Current Type AC | ||
Light Effect Flashing | ||
Mount Type Wall | ||
Sounder Type Electronic | ||
Series SONFL1X | ||
Maximum Supply Voltage 230V ac | ||
Bulb Type Xenon | ||
Sound Level at 1m 100dB | ||
Minimum Operating Temperature -25°C | ||
Housing Colour White | ||
Maximum Operating Temperature 55°C | ||
Maximum Sound Level 100dB | ||
Number of Tones 10 | ||
Hazardous Area Certification No | ||
IP Rating IP66 | ||
Housing Material ABS | ||
Standards/Approvals CE, cULus, EAC, VdS | ||
- COO (Country of Origin):
- GB

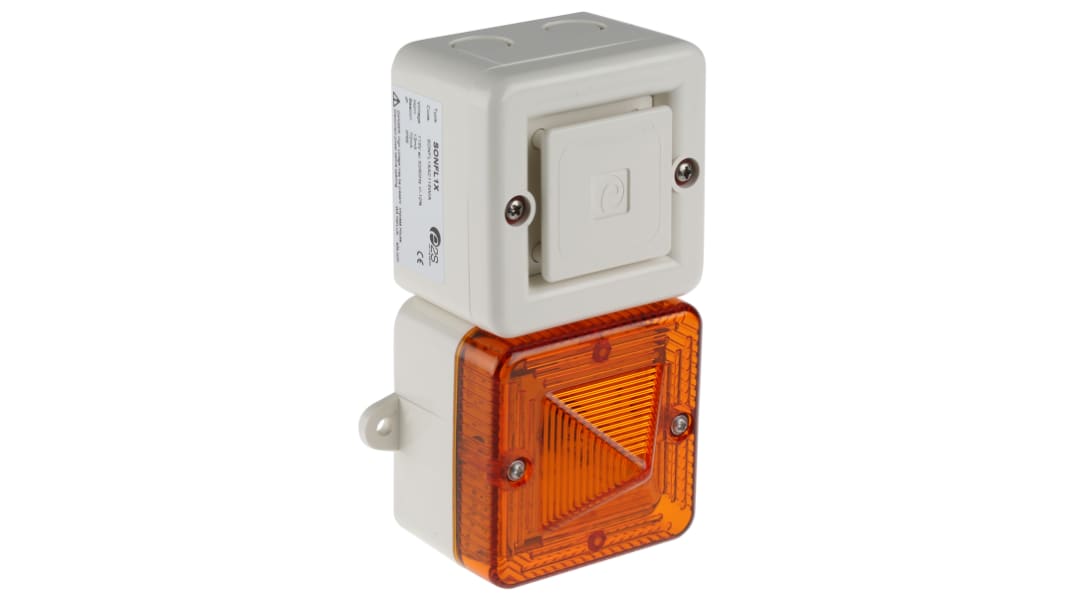

e2s Sounder Beacon
The e2s AC flashy sounder beacon is high-tech equipment with an amber lens. This beacon has a sound level output up to 100dB (A) at 1m with a choice of 10 alarm tones and 2 remotely selectable stages. The supply voltage is 115VAC. The alarm horn and Xenon beacon can be connected from a single power supply for simultaneous operations or from separate supplies for independent operation.
Features and Benefits
Automatic synchronisation on multi-sounder system
High output Xenon beacon
Mounting via internal BESA compatible fixing positions or via external mounting lugs
4 gland knockouts in side and back
Operating temperature ranges between -25°C and 55°C
Certifications
IP66 rated
