Select all	Attribute	Value
	Brand	e2s
	Product Type	Sounder-Beacon Combination
	Minimum Sound Level	105dB
	Lens Colour	Red
	Current Type	DC
	Light Effect	Flashing
	Mount Type	Bracket
	Sounder Type	Flare Re-Entrant Horn Sounder
	Series	E2xC1X05F
	Bulb Type	Xenon
	Maximum Supply Voltage	230V dc
	Minimum Operating Temperature	-20°C
	Sound Level at 1m	116dB
	Housing Colour	Black
	Maximum Operating Temperature	55°C
	Maximum Sound Level	116dB
	IP Rating	IP66
	Number of Tones	45
	Hazardous Area Certification	ATEX
	Housing Material	ABS
	Standards/Approvals	EN60529, EN60079-0, UL50E, NEMA250

	Select all
	Brand e2s
	Product Type Sounder-Beacon Combination
	Minimum Sound Level 105dB
	Lens Colour Red
	Current Type DC
	Light Effect Flashing
	Mount Type Bracket
	Sounder Type Flare Re-Entrant Horn Sounder
	Series E2xC1X05F
	Bulb Type Xenon
	Maximum Supply Voltage 230V dc
	Minimum Operating Temperature -20°C
	Sound Level at 1m 116dB
	Housing Colour Black
	Maximum Operating Temperature 55°C
	Maximum Sound Level 116dB
	IP Rating IP66
	Number of Tones 45
	Hazardous Area Certification ATEX
	Housing Material ABS
	Standards/Approvals EN60529, EN60079-0, UL50E, NEMA250

RoHS Status: Exempt

COO (Country of Origin):: GB

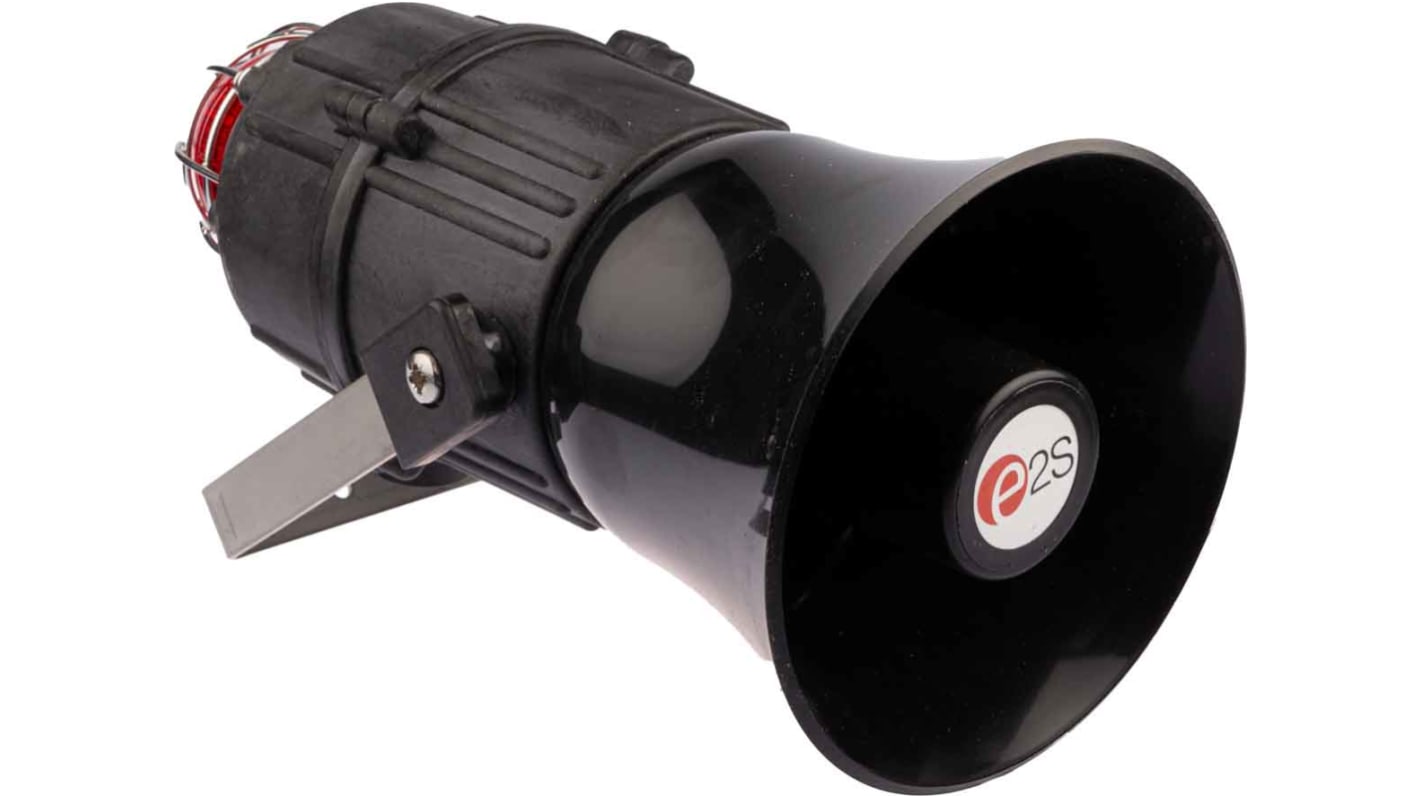

E2S 1-34-010 Sounder Beacon Combination

E2S Sounder Beacon

Combining a 116dB alarm sounder with a 5 joule Xenon strobe beacon, this sounder beacon provides a convenient and versatile audio-visual signalling solution, designed to reduce installation time and costs associated with multiple unit installations. The E2x range features sounder beacons that are perfect for the harshest of environments, benefiting from enclosures manufactured from lightweight and corrosion-proof PPS, and high impact, fire-retardant ABS re-entrant flare horns.

Features and Benefits

• The device has a very large termination area, and duplicate cable terminations

• Automatic synchronisation on multi-sounder system

• The Xenon tube is mechanically secured against vibrations and shocks and can be replaced by the user on assembly.

• Featuring a stainless steel dome guard as standard and a stainless steel adjustable 'U' bracket

• The sounder beacon is available with custom tone configurations and frequencies

Applications and Uses

Beacon and sounder combinations can be used in a variety of industrial and emergency applications for signalling and communication, such as;

• fire evacuations

• industrial parks

• warehouses

• laboratories

Approvals

• ATEX certificate: DEMKO 06 ATEX 0421554X,

• IECEx certificate: IECEx ULD 14.0012X

• UL/cUL File ref: E230764

Group and Category

II 3G EEx nL IIC T3

Certificate No.

DEMKO 06 ATEX 0421554

£976.68

(exc. VAT)

£976.68/unit

e2s E2xC1X05F Series Red Sounder-Beacon Combination, IP66 230V dc Bracket 116 dB @ 1m
