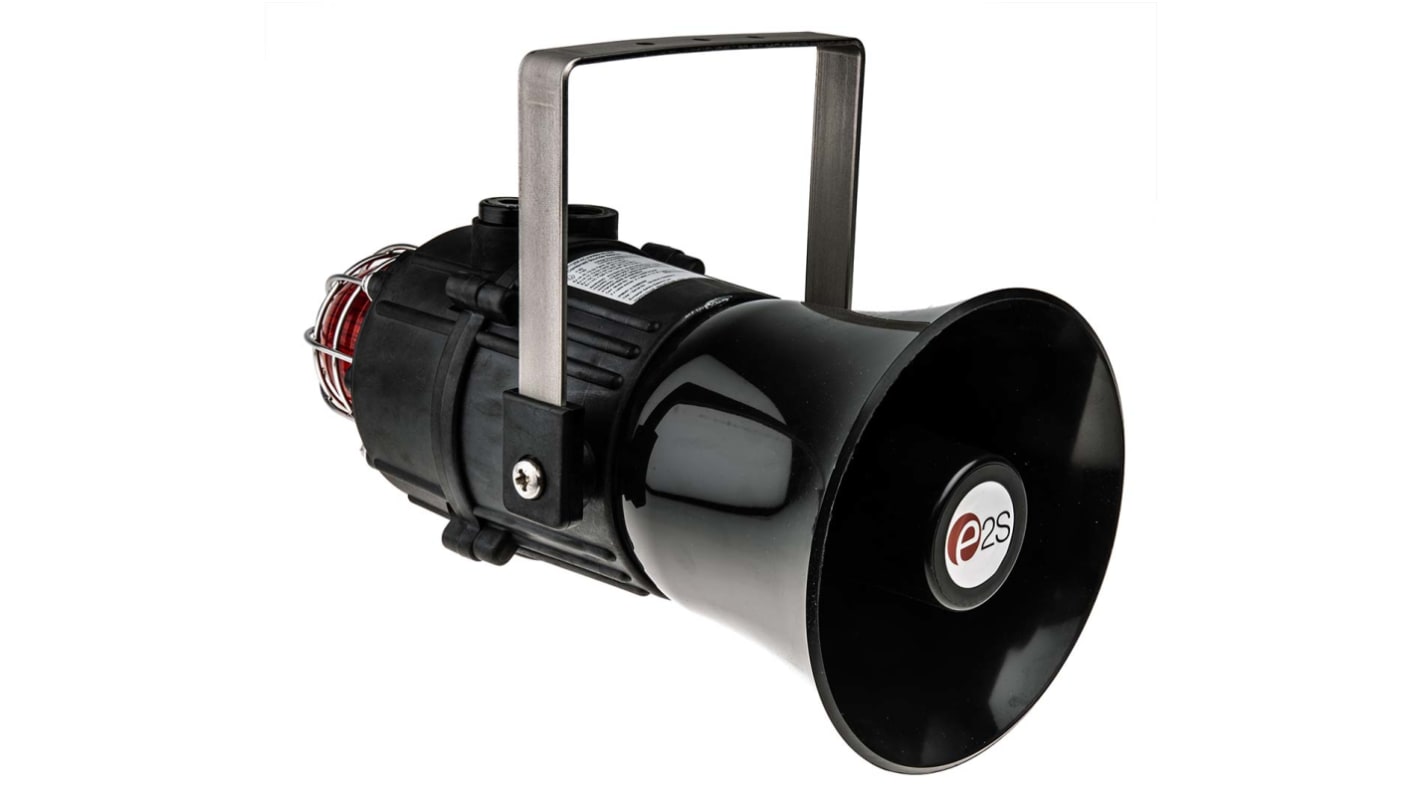

e2s E2xC1X05F Series Red Sounder Beacon, 230 V ac, IP66, Wall Mount, 116dB at 1 Metre
- RS Stock No.:
- 615-7269
- Mfr. Part No.:
- E2XC1X05FAC230B1R1B/A
- Brand:
- e2s
Subtotal (1 unit)*
£940.04
(exc. VAT)
£1,128.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £940.04 |
*price indicative
- RS Stock No.:
- 615-7269
- Mfr. Part No.:
- E2XC1X05FAC230B1R1B/A
- Brand:
- e2s
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | e2s | |
Supply Voltage | 230 V ac | |
Lens Colour | Red | |
Mounting Style | Wall Mount | |
Current Type | AC | |
Light Effect | Flashing | |
Sounder Type | Electronic | |
Decibels at 1 Metre | 116dB | |
Series | E2xC1X05F | |
Bulb Type | Xenon | |
Housing Colour | Black | |
Minimum Decibel | 105dB | |
Maximum Decibel | 113dB | |
Number Of Tones | 45 | |
IP Rating | IP66 | |
Hazardous Area Certification | ATEX | |
Minimum Temperature | -20°C | |
Housing Material | ABS | |
Maximum Temperature | +55°C | |
Select all | ||
---|---|---|
Brand e2s | ||
Supply Voltage 230 V ac | ||
Lens Colour Red | ||
Mounting Style Wall Mount | ||
Current Type AC | ||
Light Effect Flashing | ||
Sounder Type Electronic | ||
Decibels at 1 Metre 116dB | ||
Series E2xC1X05F | ||
Bulb Type Xenon | ||
Housing Colour Black | ||
Minimum Decibel 105dB | ||
Maximum Decibel 113dB | ||
Number Of Tones 45 | ||
IP Rating IP66 | ||
Hazardous Area Certification ATEX | ||
Minimum Temperature -20°C | ||
Housing Material ABS | ||
Maximum Temperature +55°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
E2S Sounder Beacon
Combining a 116dB alarm sounder with a 5 joule Xenon strobe beacon, this sounder beacon provides a convenient and versatile audio-visual signalling solution, designed to reduce installation time and costs associated with multiple unit installations. The E2x range features sounder beacons that are perfect for the harshest of environments, benefiting from enclosures manufactured from lightweight and corrosion-proof PPS, and high impact, fire-retardant ABS re-entrant flare horns.
Features and Benefits
The device has a very large termination area, and duplicate cable terminations
Automatic synchronisation on multi-sounder system
The Xenon tube is mechanically secured against vibrations and shocks and can be replaced by the user on assembly.
Featuring a stainless steel dome guard as standard and a stainless steel adjustable 'U' bracket
The sounder beacon is available with custom tone configurations and frequencies
Automatic synchronisation on multi-sounder system
The Xenon tube is mechanically secured against vibrations and shocks and can be replaced by the user on assembly.
Featuring a stainless steel dome guard as standard and a stainless steel adjustable 'U' bracket
The sounder beacon is available with custom tone configurations and frequencies
Applications and Uses
Beacon and sounder combinations can be used in a variety of industrial and emergency applications for signalling and communication, such as;
fire evacuations
industrial parks
warehouses
laboratories
fire evacuations
industrial parks
warehouses
laboratories
Approvals
ATEX certificate: DEMKO 06 ATEX 0421554X,
IECEx certificate: IECEx ULD 14.0012X
UL/cUL File ref: E230764
IECEx certificate: IECEx ULD 14.0012X
UL/cUL File ref: E230764
Certificate No.
DEMKO 06 ATEX 0421554
Group and Category
II 3G EEx nL IIC T3
E2S 1-34-010 Sounder Beacon Combination
