Patlite SL Series Amber Sounder Beacon, 12→24 VDC, IP66, Base Mount
- RS Stock No.:
- 215-4763
- Distrelec Article No.:
- 303-17-733
- Mfr. Part No.:
- SL10-M1KTB-Y
- Brand:
- Patlite
Subtotal (1 unit)*
£127.87
(exc. VAT)
£153.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 999,999,997 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit |
|---|---|
| 1 + | £127.87 |
*price indicative
- RS Stock No.:
- 215-4763
- Distrelec Article No.:
- 303-17-733
- Mfr. Part No.:
- SL10-M1KTB-Y
- Brand:
- Patlite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Patlite | |
| Supply Voltage | 12→24 VDC | |
| Lens Colour | Amber | |
| Mounting Style | Base Mount | |
| Current Type | DC | |
| Light Effect | Flashing | |
| Sounder Type | Buzzer | |
| Series | SL | |
| Bulb Type | LED | |
| Maximum Decibel | 88dB | |
| Number Of Tones | 1 | |
| IP Rating | IP66 | |
| Minimum Temperature | -20°C | |
| Maximum Temperature | +50°C | |
| Standards Met | UL 508, CSA-C22.2 No.14, EN61000-6-4, EN61000-6-2, EN61000-3-2, EN61000-3-3, KN61000-6-4, KN61000-6-2, FCC Part15 SubpartB ClassA, ICES-003 ClassA, IEC/EN60947-5-1, EN62471, TPTC020/2011, TPTC004/2011 | |
| Housing Material | Polycarbonate | |
| Select all | ||
|---|---|---|
| Brand Patlite | ||
| Supply Voltage 12→24 VDC | ||
| Lens Colour Amber | ||
| Mounting Style Base Mount | ||
| Current Type DC | ||
| Light Effect Flashing | ||
| Sounder Type Buzzer | ||
| Series SL | ||
| Bulb Type LED | ||
| Maximum Decibel 88dB | ||
| Number Of Tones 1 | ||
| IP Rating IP66 | ||
| Minimum Temperature -20°C | ||
| Maximum Temperature +50°C | ||
| Standards Met UL 508, CSA-C22.2 No.14, EN61000-6-4, EN61000-6-2, EN61000-3-2, EN61000-3-3, KN61000-6-4, KN61000-6-2, FCC Part15 SubpartB ClassA, ICES-003 ClassA, IEC/EN60947-5-1, EN62471, TPTC020/2011, TPTC004/2011 | ||
| Housing Material Polycarbonate | ||
- COO (Country of Origin):
- ID

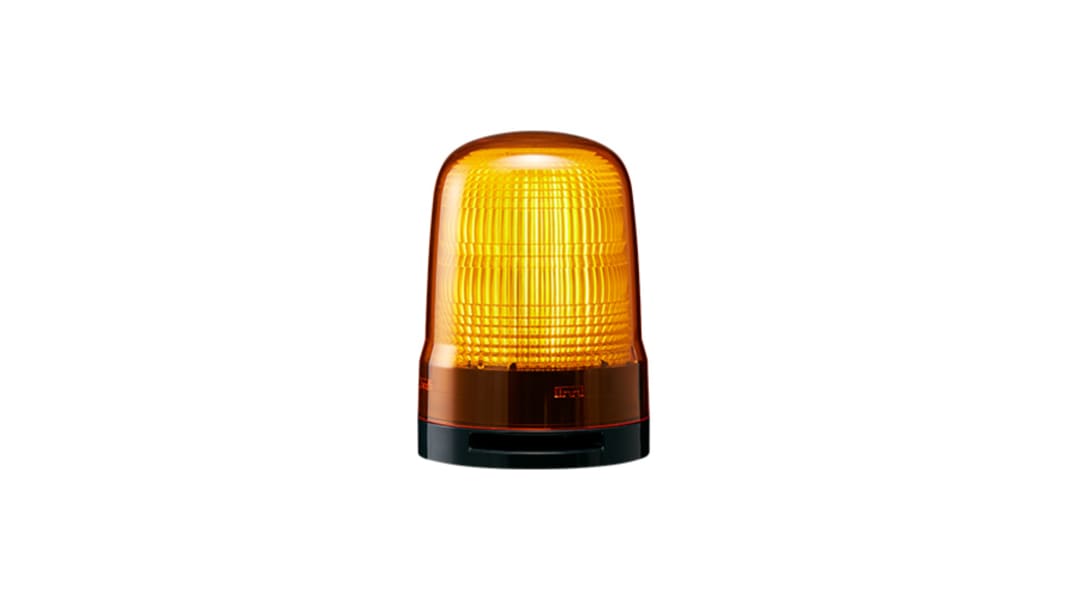

The SL series amber colour flashing beacon with buzzer and size 100mm. It has an operating voltage rating of 12-24V dc. It is available with screw less terminal block.
Rotation Flashing Rate (Typ.) Blinking (180 flashes per minute), Triple Flash (120 flashes per minute)
Mounting Direction Indoor: Upright, Inverted, Sideways
Outdoor: Upright
Material (Glove / Body) PC
Sound Pressure Level (Typ.) 86dB
Mounting Direction Indoor: Upright, Inverted, Sideways
Outdoor: Upright
Material (Glove / Body) PC
Sound Pressure Level (Typ.) 86dB
