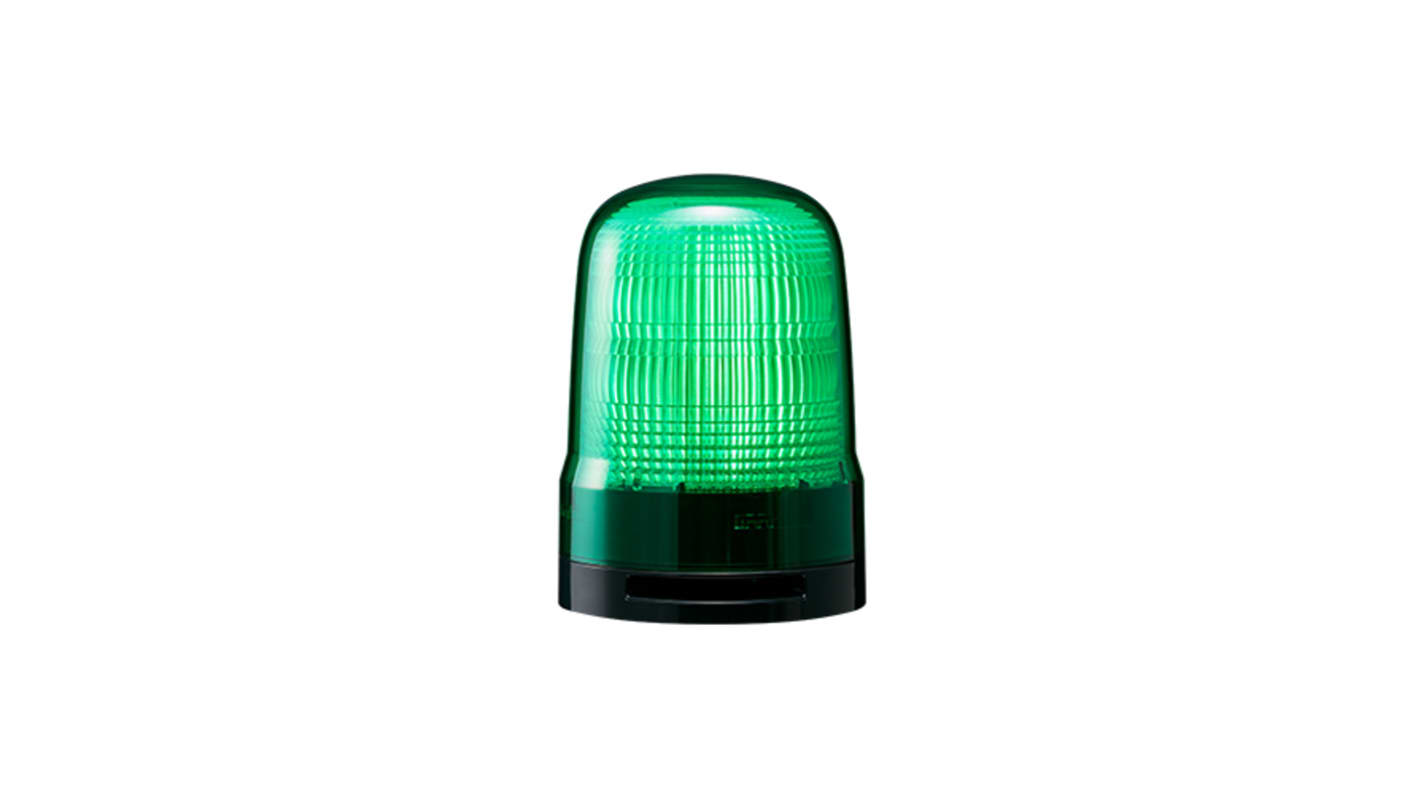

Patlite SL Series Green Beacon-Sounder Combination, IP66 240V ac Base 88 dB @ 1m
- RS Stock No.:
- 213-3533
- Distrelec Article No.:
- 303-17-743
- Mfr. Part No.:
- SL10-M2KTB-G
- Brand:
- Patlite
Subtotal (1 unit)*
£152.09
(exc. VAT)
£182.51
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £152.09 |
*price indicative
- RS Stock No.:
- 213-3533
- Distrelec Article No.:
- 303-17-743
- Mfr. Part No.:
- SL10-M2KTB-G
- Brand:
- Patlite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Patlite | |
| Product Type | Beacon-Sounder Combination | |
| Lens Colour | Green | |
| Current Type | AC | |
| Light Effect | Continuous, Blinking, Flashing | |
| Mount Type | Base | |
| Sounder Type | Buzzer | |
| Series | SL | |
| Maximum Supply Voltage | 240V ac | |
| Bulb Type | LED | |
| Sound Level at 1m | 88dB | |
| Housing Colour | Green | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Maximum Sound Level | 88dB | |
| Hazardous Area Certification | No | |
| Number of Tones | 1 | |
| IP Rating | IP66 | |
| Standards/Approvals | CSA-C22.2 No.14, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-6-4, EN62471, FCC Part15 SubpartB ClassA, ICES-003 ClassA, IEC/EN60947-5-1, KN61000-6-2, KN61000-6-4, TPTC004/2011, TPTC020/2011, UL 508 | |
| Housing Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Patlite | ||
Product Type Beacon-Sounder Combination | ||
Lens Colour Green | ||
Current Type AC | ||
Light Effect Continuous, Blinking, Flashing | ||
Mount Type Base | ||
Sounder Type Buzzer | ||
Series SL | ||
Maximum Supply Voltage 240V ac | ||
Bulb Type LED | ||
Sound Level at 1m 88dB | ||
Housing Colour Green | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Maximum Sound Level 88dB | ||
Hazardous Area Certification No | ||
Number of Tones 1 | ||
IP Rating IP66 | ||
Standards/Approvals CSA-C22.2 No.14, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-6-4, EN62471, FCC Part15 SubpartB ClassA, ICES-003 ClassA, IEC/EN60947-5-1, KN61000-6-2, KN61000-6-4, TPTC004/2011, TPTC020/2011, UL 508 | ||
Housing Material Polycarbonate | ||
- COO (Country of Origin):
- ID
The SL series blue colour flashing beacon with buzzer and size 100mm. It has an operating voltage rating of 100-240V ac. It is available with screw less terminal block.
Rotation Flashing Rate (Typ.) Blinking (180 flashes per minute), Triple Flash (120 flashes per minute)
Mounting Direction Indoor: Upright, Inverted, Sideways
Outdoor: Upright
Material (Glove / Body) PC
Sound Pressure Level (Typ.) 88dB
