- RS Stock No.:
- 183-3847
- Mfr. Part No.:
- PNC-0046
- Brand:
- Klaxon
Available to back order for despatch 04/06/2024
Added
Price Each
£199.45
(exc. VAT)
£239.34
(inc. VAT)
Units | Per unit |
1 + | £199.45 |
- RS Stock No.:
- 183-3847
- Mfr. Part No.:
- PNC-0046
- Brand:
- Klaxon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB

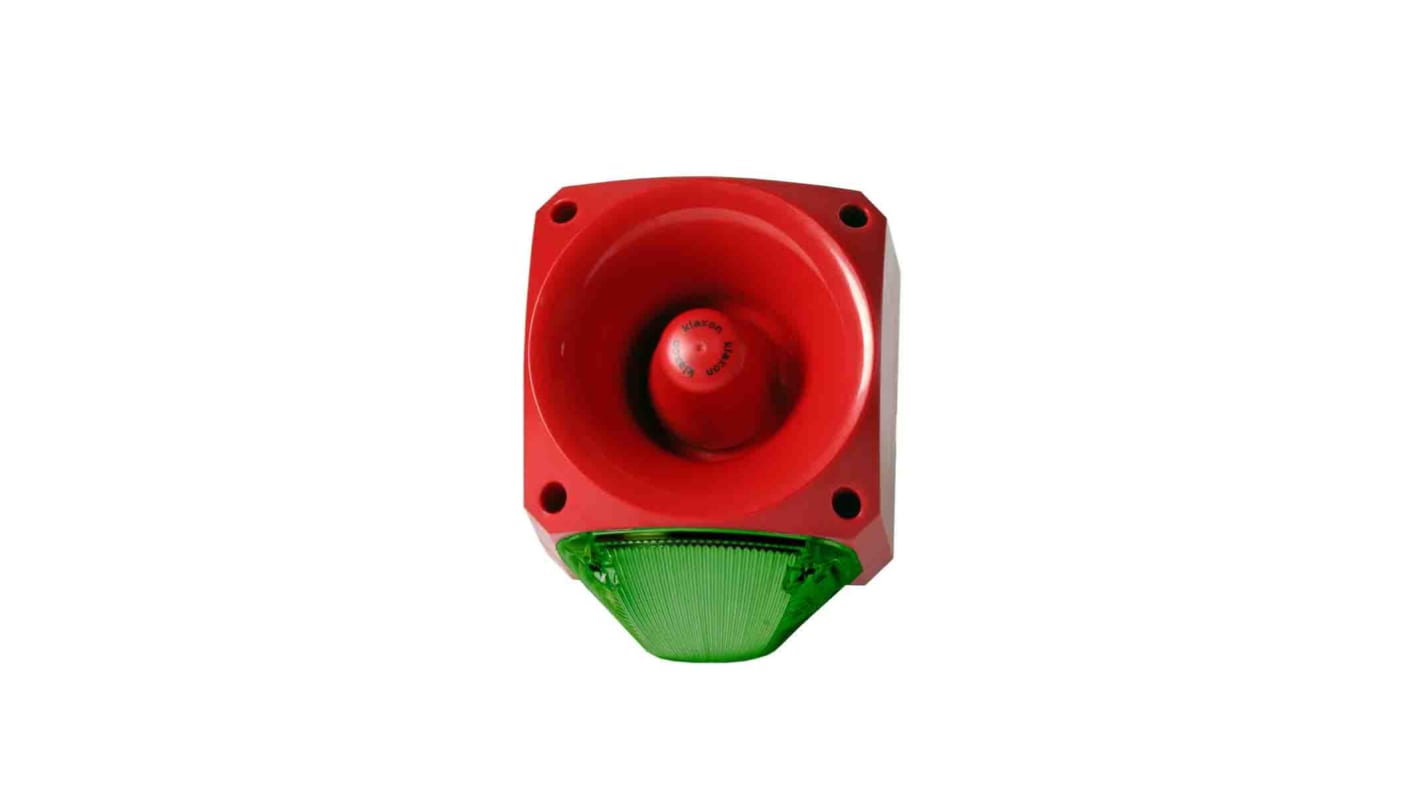

Product Details
High sound output: 113dB (max), 105dB (typical)
5J xenon or high efficiency LED beacon option
Quarter turn fasteners for ease of installation
First-fix, wire to base technology
Three alarm stages
Low in-rush current (LED only)
Static/flashing mode (LED only)
Volume control for greater flexibility - 20dB
64 tones
Separate connections for sounder & beacon
Applications - Fire alarm, conveyors, process control alarm, cranes, moving machinery, general signalling, marine.
5J xenon or high efficiency LED beacon option
Quarter turn fasteners for ease of installation
First-fix, wire to base technology
Three alarm stages
Low in-rush current (LED only)
Static/flashing mode (LED only)
Volume control for greater flexibility - 20dB
64 tones
Separate connections for sounder & beacon
Applications - Fire alarm, conveyors, process control alarm, cranes, moving machinery, general signalling, marine.
Standards
EN54
Specifications
Attribute | Value |
---|---|
Supply Voltage | 10 → 60 V dc |
Lens Colour | Green |
Current Type | DC |
Sounder Type | Alarm |
Decibels at 1 Metre | 113dB |
Bulb Type | LED |
Minimum Decibel | -20dB |
Maximum Decibel | 113 dB @ 1 m |
IP Rating | IP66 |
Number Of Tones | 64 |
Minimum Temperature | -25°C |
Maximum Temperature | +70°C |
