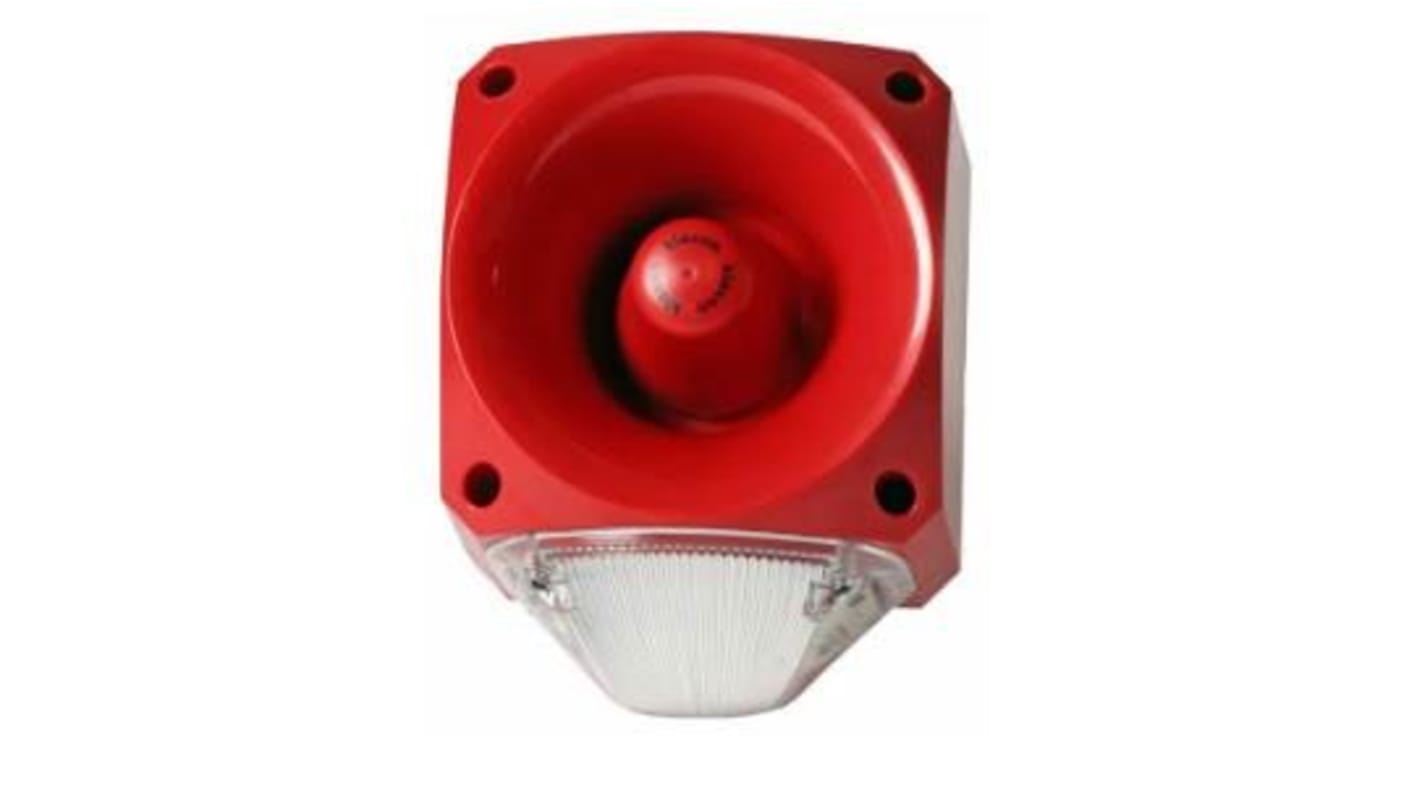

Klaxon Nexus 105/110/120 Series Clear Beacon-Sounder Combination, IP66 60V Side 120 dB @ 1m
- RS Stock No.:
- 146-7385
- Mfr. Part No.:
- PNC-0059
- Brand:
- Klaxon
Subtotal (1 unit)*
£367.35
(exc. VAT)
£440.82
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £367.35 |
*price indicative
- RS Stock No.:
- 146-7385
- Mfr. Part No.:
- PNC-0059
- Brand:
- Klaxon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Klaxon | |
| Product Type | Beacon-Sounder Combination | |
| Lens Colour | Clear | |
| Minimum Sound Level | 105dB | |
| Current Type | DC | |
| Light Effect | Static/Flashing (LED Only) | |
| Mount Type | Side | |
| Sounder Type | High Output | |
| Current Consumption | 550mA | |
| Series | Nexus 105/110/120 | |
| Maximum Supply Voltage | 60V | |
| Bulb Type | Xenon/LED | |
| Housing Colour | Red | |
| Sound Level at 1m | 120dB | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 120dB | |
| Hazardous Area Certification | NO | |
| IP Rating | IP66 | |
| Number of Tones | 64 | |
| Housing Material | Polycarbonate | |
| Standards/Approvals | EN54-3 Type B | |
| Select all | ||
|---|---|---|
Brand Klaxon | ||
Product Type Beacon-Sounder Combination | ||
Lens Colour Clear | ||
Minimum Sound Level 105dB | ||
Current Type DC | ||
Light Effect Static/Flashing (LED Only) | ||
Mount Type Side | ||
Sounder Type High Output | ||
Current Consumption 550mA | ||
Series Nexus 105/110/120 | ||
Maximum Supply Voltage 60V | ||
Bulb Type Xenon/LED | ||
Housing Colour Red | ||
Sound Level at 1m 120dB | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 120dB | ||
Hazardous Area Certification NO | ||
IP Rating IP66 | ||
Number of Tones 64 | ||
Housing Material Polycarbonate | ||
Standards/Approvals EN54-3 Type B | ||
- COO (Country of Origin):
- GB
High output sounder beacons certified to EN54. Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners avoiding the need to screw up four individual screws thus enabling faster installation and accurate seal compression for weatherproofing. The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal. 110dB and 120dB units, as well as AC variants, are also available.
Quarter turn fasteners for ease of installation
IP66 rated
Three alarm stages
Volume control for greater flexibility - 20dB
64 tones
Voltage 10-60V DC
