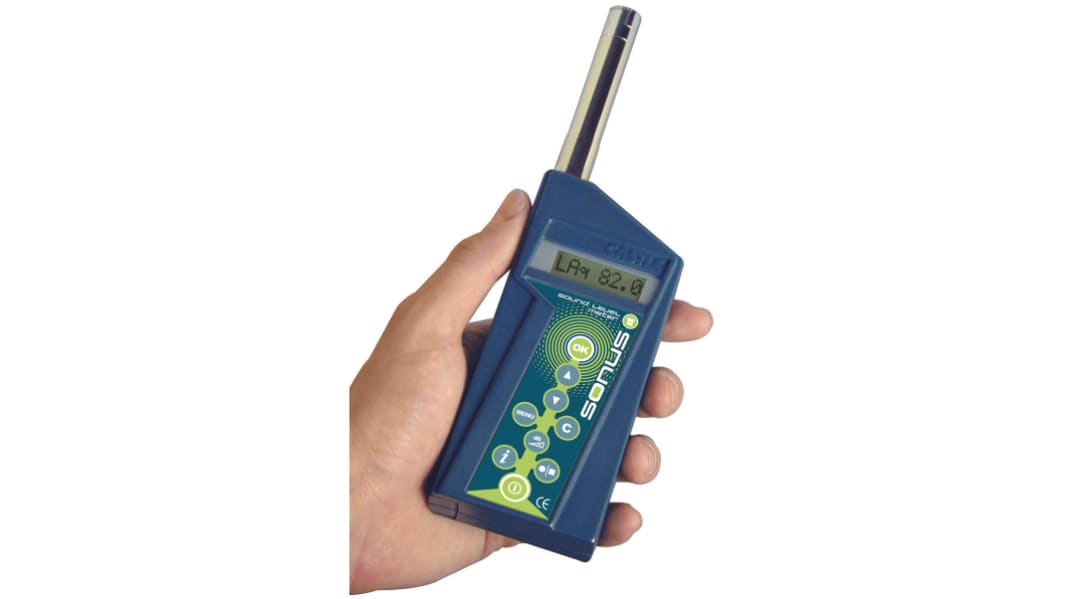

Castle Sonus GA116i Class 1 Sound Level Meter, 35dB to 140dB, 20kHz max

RS Stock No.:: 909-3742
Mfr. Part No.:: 01GA116i
Brand:: Castle

Castle Sonus GA116i Class 1 Sound Level Meter, 35dB to 140dB, 20kHz max

Price Each**

£1,160.00

(exc. VAT)

£1,392.00

(inc. VAT)

2 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£1,160.00

**price indicative

Calibration Options:

Castle Sonus GA116i Class 1 Sound Level Meter, 35dB to 140dB, 20kHz max with RS Calibration

Calibration Type:: RSCAL

RS Stock No.: 908-5173

Each

£1,235.00

(exc. VAT)

£1,482.00

(inc. VAT)

RS Stock No.:: 909-3742
Mfr. Part No.:: 01GA116i
Brand:: Castle

Castle GA116i Sonus Class 1 Integrating Sound Level Meter

The GA116i is designed for industrial safety officers, safety managers and engineers, for compliance with the Control of Noise at Work regulations 2005. It is fully compliant with European and International standards. The GA116i will provide all necessary sound measurement information for completing noise at work risk assessments.

Simultaneous measurement of Lp, Leq, Lmax, Cpeak, Lep,d, LAE, Dose, Dose / Hour, Pa2H
'A' and 'C' frequency weighting (toggle)
'Slow' and 'Fast' Time constants (toggle)
Sound pressure (Lp) to 0.1dB resolution
Integrated equivalent level (Leq) measurement
Personal sound exposure level (Lep,d)
Single event sound exposure level (LAE)
Noise dose%, noise dose per hour%, pascal squared hours
Lmax - maximum Lp (rms) level
Cpeak - maximum C weighted peak level
Elapsed time (running time hrs, min, sec)
Over Load and Under Range indication
Housed in tough, crack-resistant ABS plastic

Standards

IEC 61672-1:2002 Class 1, IEC 60651: 1979 Type 1, IEC 60804: 2001 Type 1

Castle Sonus i, Class 1 Leq Sound Level Meter

The SONUS i (GA116i) is a Class 1 sound level meter and is designed for industrial safety officers, safety managers and engineers, for compliance with the Control of Noise at Work regulations 2005. It is fully compliant with European and International standards. The SONUS i will provide all necessary sound measurement information for completing noise at work risk assessments.

Simultaneous measurement of Lp, Leq, Lmax, Cpeak, Lep,d, LAE, Dose, Dose / Hour, Pa2H
'A' and 'C' frequency weighting (toggle)
'Slow' and 'Fast' Time constants (toggle)
Housed in tough, crack-resistant ABS plastic

The simultaneous measurement of LAeq and LCPeak makes the SONUS I ideal for measurements to The Control of Noise at Work Regulations 2005, which requires both these measurements. The SONUS i can also measure the 'C' weighted Leq values, which can be used for hearing protection assessments to the regulations.

Standards
IEC 61672-1:2002 Class 1, IEC 60651: 1979 Type 1, IEC 60804: 2001 Type 1

Sound pressure (Lp) to 0.1dB resolution
Integrated equivalent level (Leq) measurement
Personal sound exposure level (Lep,d)
Single event sound exposure level (LAE)
Noise dose%, noise dose per hour%, pascal squared hours
Lmax - maximum Lp (rms) level
Cpeak - maximum C weighted peak level
Elapsed time (running time hrs, min, sec)
Over Load and Under Range indication

Attribute	Value
Maximum Sound Level	140dB
Minimum Sound Level	35dB
Resolution	0.1 dB
Accuracy Class	IEC 61672-1:2002 Class 1
DOSE Measurement	Yes
Weighting	A, C
Display Type	LCD
Battery Type	9V PP3
Fast/Slow Time Averaging	Both
Data Logging	No
Interface Type	USB
Maximum Frequency	20kHz
Maximum Operating Temperature	+50°C
Minimum Frequency	20 Hz
Model Number p	Sonus GA116i Class 1
Minimum Operating Temperature	-10°C
