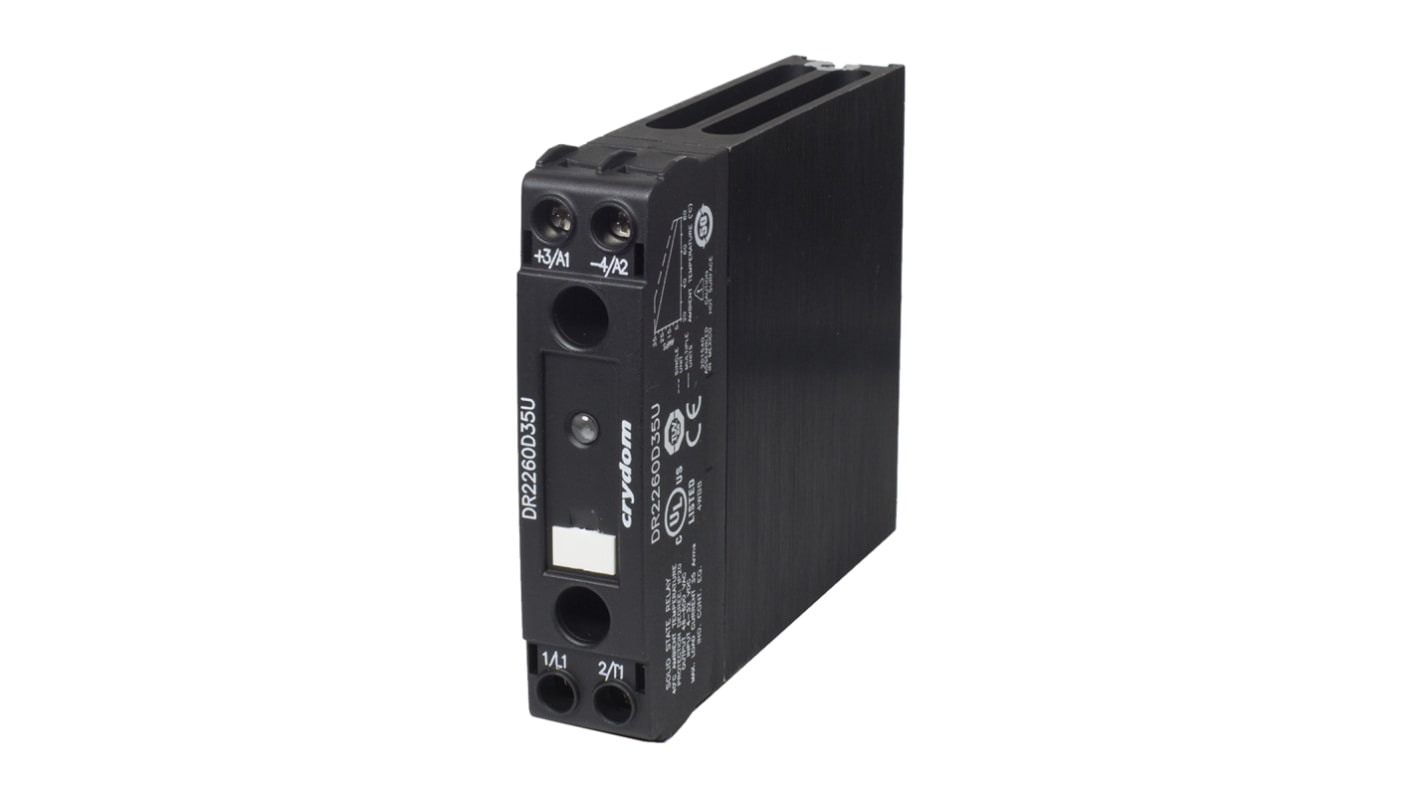

Sensata Crydom Solid State Relay, 30 A Load, DIN Rail Mount, 600 V rms Load, 32 V dc Control
- RS Stock No.:
- 910-7324
- Distrelec Article No.:
- 301-06-624
- Mfr. Part No.:
- DR2260D30U
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£62.55
(exc. VAT)
£75.06
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 44 unit(s) shipping from 27 October 2025
- Plus 4 unit(s) shipping from 27 October 2025
- Plus 999,999,955 unit(s) shipping from 09 March 2026
Units | Per unit |
|---|---|
| 1 - 4 | £62.55 |
| 5 - 9 | £59.43 |
| 10 - 24 | £56.30 |
| 25 - 49 | £53.17 |
| 50 + | £50.04 |
*price indicative
- RS Stock No.:
- 910-7324
- Distrelec Article No.:
- 301-06-624
- Mfr. Part No.:
- DR2260D30U
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 30 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 600 V rms | |
| Minimum Load Voltage | 48 V rms | |
| Minimum Control Voltage | 4 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 4 → 32 V dc | |
| Minimum Load Current | 5 mA | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Contact Configuration | SP | |
| Output Device | MOSFET | |
| Relay Type | Nove 22 Solid State Relay | |
| Load Voltage Range | 48 → 600Vrms | |
| Maximum Turn On Time | 0.075ms | |
| Dimensions | 22.5 x 116.5 x 93.2mm | |
| Capacitance | 8pF | |
| Standards Met | CE, cULus, cUS, IEC, ISO | |
| Special Features | 1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator | |
| Depth | 116.5mm | |
| Height | 93.2mm | |
| Length | 22.5mm | |
| Operating Temperature Range | -40 → +80°C | |
| Off State Leakage Current | 0.2 mA | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 30 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V rms | ||
Minimum Load Voltage 48 V rms | ||
Minimum Control Voltage 4 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 5 mA | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Contact Configuration SP | ||
Output Device MOSFET | ||
Relay Type Nove 22 Solid State Relay | ||
Load Voltage Range 48 → 600Vrms | ||
Maximum Turn On Time 0.075ms | ||
Dimensions 22.5 x 116.5 x 93.2mm | ||
Capacitance 8pF | ||
Standards Met CE, cULus, cUS, IEC, ISO | ||
Special Features 1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator | ||
Depth 116.5mm | ||
Height 93.2mm | ||
Length 22.5mm | ||
Operating Temperature Range -40 → +80°C | ||
Off State Leakage Current 0.2 mA | ||
- COO (Country of Origin):
- MX
Sensata | Crydom Solid-State Relay, 20A Rated Load Current, Aluminium Heat Sink - DR22 Series - DR2260D30U
Features & Benefits
• Integrated aluminium heat sink prevents overheating for optimal performance
• Short circuit current rating of 100kA to handle sudden power spikes without damage
How do I wire this SSR?
