Sensata / Crydom DRC Series Solid State Relay, 7.6 A Load, DIN Rail Mount, 510 V ac Load, 30V ac/dc Control

RS Stock No.:: 822-9353
Mfr. Part No.:: DRC3P48D411R2
Brand:: Sensata / Crydom

Sensata / Crydom DRC Series Solid State Relay, 7.6 A Load, DIN Rail Mount, 510 V ac Load, 30V ac/dc Control

Subtotal (1 unit)*

£96.84

(exc. VAT)

£116.21

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£96.84

*price indicative

RS Stock No.:: 822-9353
Mfr. Part No.:: DRC3P48D411R2
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	7.6A
	Product Type	Solid State Relay
	Mount Type	DIN Rail
	Maximum Load Voltage	510V ac
	Minimum Load Voltage	48V ac
	Maximum Control Voltage	30V ac/dc
	Series	DRC
	Terminal Type	Screw
	Contact Configuration	1 NO/1 NC
	IP Rating	IP20
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	80°C
	Length	45.31mm
	Height	86.71mm
	Width	95.6 mm
	Standards/Approvals	C-UL-US Listed, IEC Rated, CE & RoHS Compliant,UL Listed, IEC60947-2,CCC,EMC,IEC 61000-4-2,IEC 61000-4-4,IEC 61000-4-5,IEC 60068-2-6,IEC 60068-2-27
	Capacitance	20pF
	Off State Leakage Current	3mArms

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 7.6A
	Product Type Solid State Relay
	Mount Type DIN Rail
	Maximum Load Voltage 510V ac
	Minimum Load Voltage 48V ac
	Maximum Control Voltage 30V ac/dc
	Series DRC
	Terminal Type Screw
	Contact Configuration 1 NO/1 NC
	IP Rating IP20
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 80°C
	Length 45.31mm
	Height 86.71mm
	Width 95.6 mm
	Standards/Approvals C-UL-US Listed, IEC Rated, CE & RoHS Compliant,UL Listed, IEC60947-2,CCC,EMC,IEC 61000-4-2,IEC 61000-4-4,IEC 61000-4-5,IEC 60068-2-6,IEC 60068-2-27
	Capacitance 20pF
	Off State Leakage Current 3mArms

COO (Country of Origin):: MX

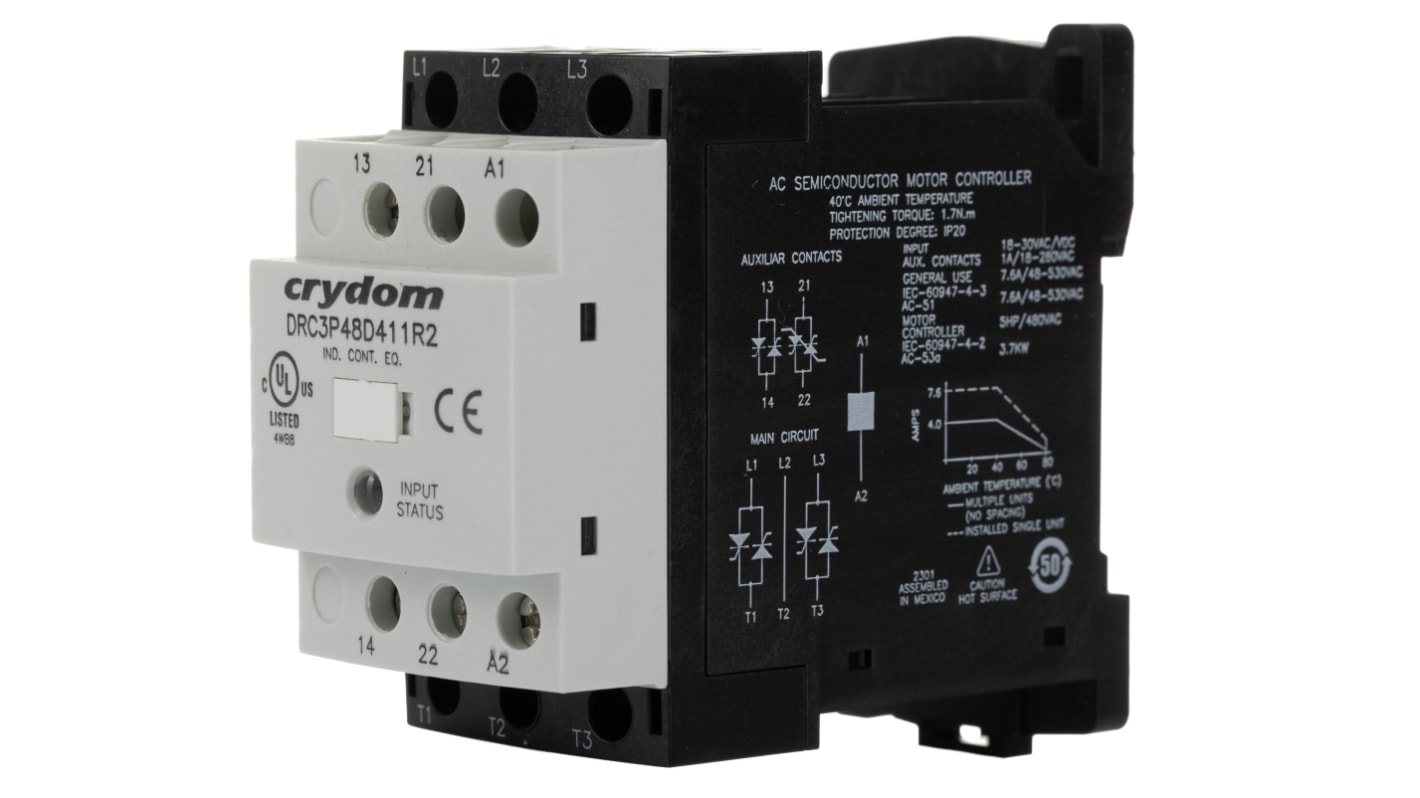

Sensata | Crydom Solid-State Contactor, Screw Terminals, 32mA Input Current - DRC Series - DRC3P48D411R2

Looking to switch gears in your circuit control? Turn to this solid-state contactor from Sensata | Crydom. You can use it to turn the flow of electricity on and off in a circuit. A low input current of just 32mA means this component needs little power to operate, boosting the energy efficiency of your operations. Thanks to a broad operating temperature range between -30°C and +80°C, you can be confident this unit can take the heat in harsh environments. You'll typically find it used in automotive manufacturing and the food and beverage industry.

Features & Benefits

• Mounts onto a DIN rail for snappy installation

• LED indicators allow for easy status monitoring

• Built-in overvoltage protection to prevent damage from electrical hazards

What's the expected life cycle of this contactor?

This device has an operational life cycle of 390,000 hours at +60°C, so you can count on it for long-term performance.

How large is this solid-state contactor?

It has compact dimensions of 45.3 (L) x 86.7 (W) x 95.6mm (D), so it'll slot seamlessly into your setup.
