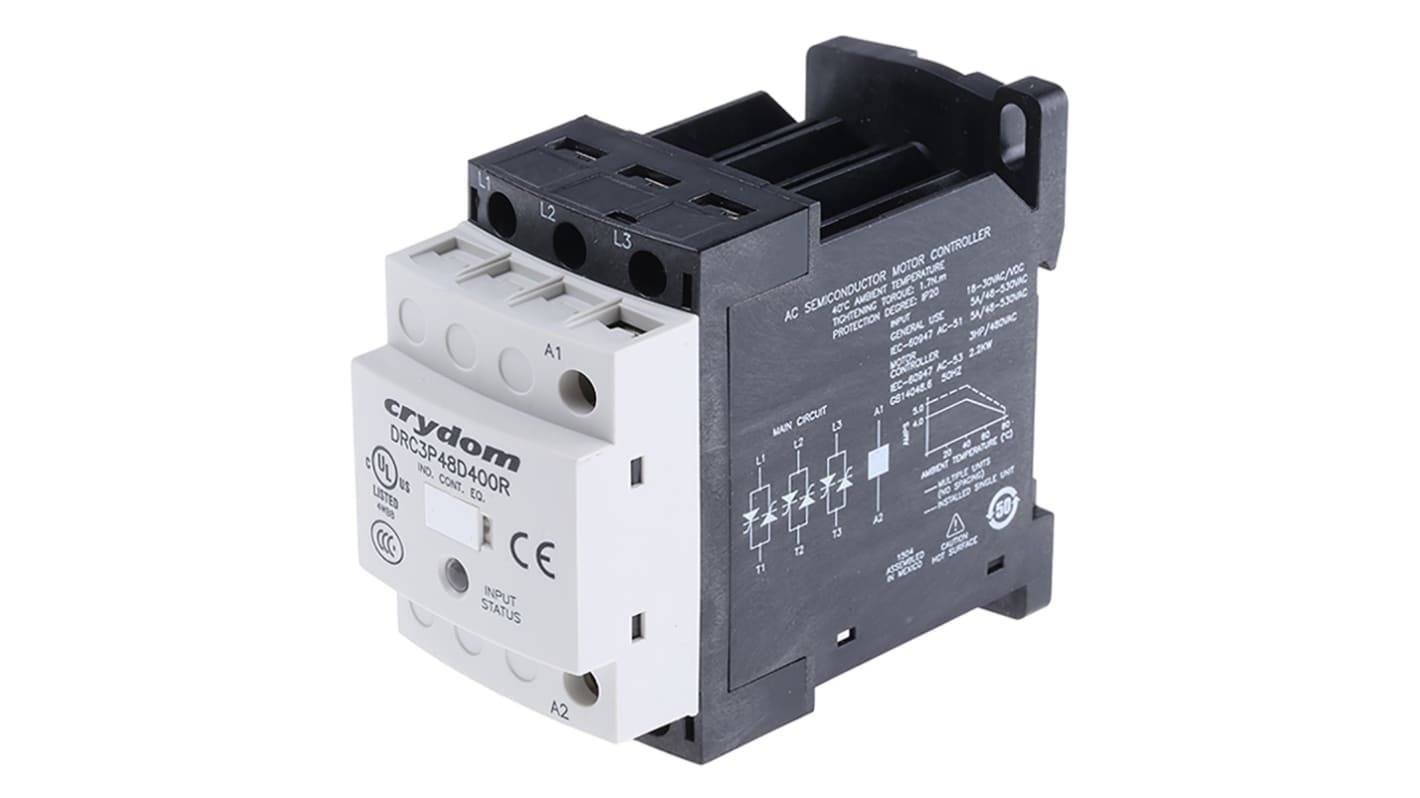

Sensata Crydom DRC Series Solid State Relay, 4.8 A Load, DIN Rail Mount
- RS Stock No.:
- 822-9341
- Mfr. Part No.:
- DRC3P48D400R
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£72.71
(exc. VAT)
£87.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 37 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £72.71 |
*price indicative
- RS Stock No.:
- 822-9341
- Mfr. Part No.:
- DRC3P48D400R
- Brand:
- Sensata / Crydom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 4.8 A | |
| Mounting Type | DIN Rail Mount | |
| Control Voltage Range | 18 V ac → 30 V ac, 18 V dc → 30 V dc | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Series | DRC | |
| Load Voltage Range | 48 V ac → 510V ac | |
| Depth | 96.02mm | |
| Height | 86.71mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
| Length | 45.31mm | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 4.8 A | ||
Mounting Type DIN Rail Mount | ||
Control Voltage Range 18 V ac → 30 V ac, 18 V dc → 30 V dc | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Series DRC | ||
Load Voltage Range 48 V ac → 510V ac | ||
Depth 96.02mm | ||
Height 86.71mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Length 45.31mm | ||
- COO (Country of Origin):
- MX
Sensata | Crydom Solid-State Contactor, DIN Rail Mounting, Screw Terminal Type - DRC Series - DRC3P48D400R
Take control of your switching requirements with this solid-state contactor from Sensata | Crydom. It's designed for switching high-power loads up to 3HP, so you can count on it for heavy-duty applications such as motor starting, industrial automation and lighting systems. As it doesn't have any moving parts, there's minimal risk of electrical noise, so you can power through switching tasks without disruption. This also means it's protected against wear, so it's built to last.
• Screw terminals for quick and secure wiring
• LED input status indicator for at-a-glance diagnostics
• Snaps onto a DIN rail for speedy installation
• Operating voltage of 480V AC for compatibility with medium-power systems
• LED input status indicator for at-a-glance diagnostics
• Snaps onto a DIN rail for speedy installation
• Operating voltage of 480V AC for compatibility with medium-power systems
When should I use a contactor instead of a relay?
Contactors come in handy in heavy-duty switching applications where you need to use a low voltage to switch a high-power circuit.
Can I use this contactor in harsh environments?
Yes, it has a wide operating temperature range between -30°C and +80°C, so it's just the thing for use in extreme industrial conditions.
