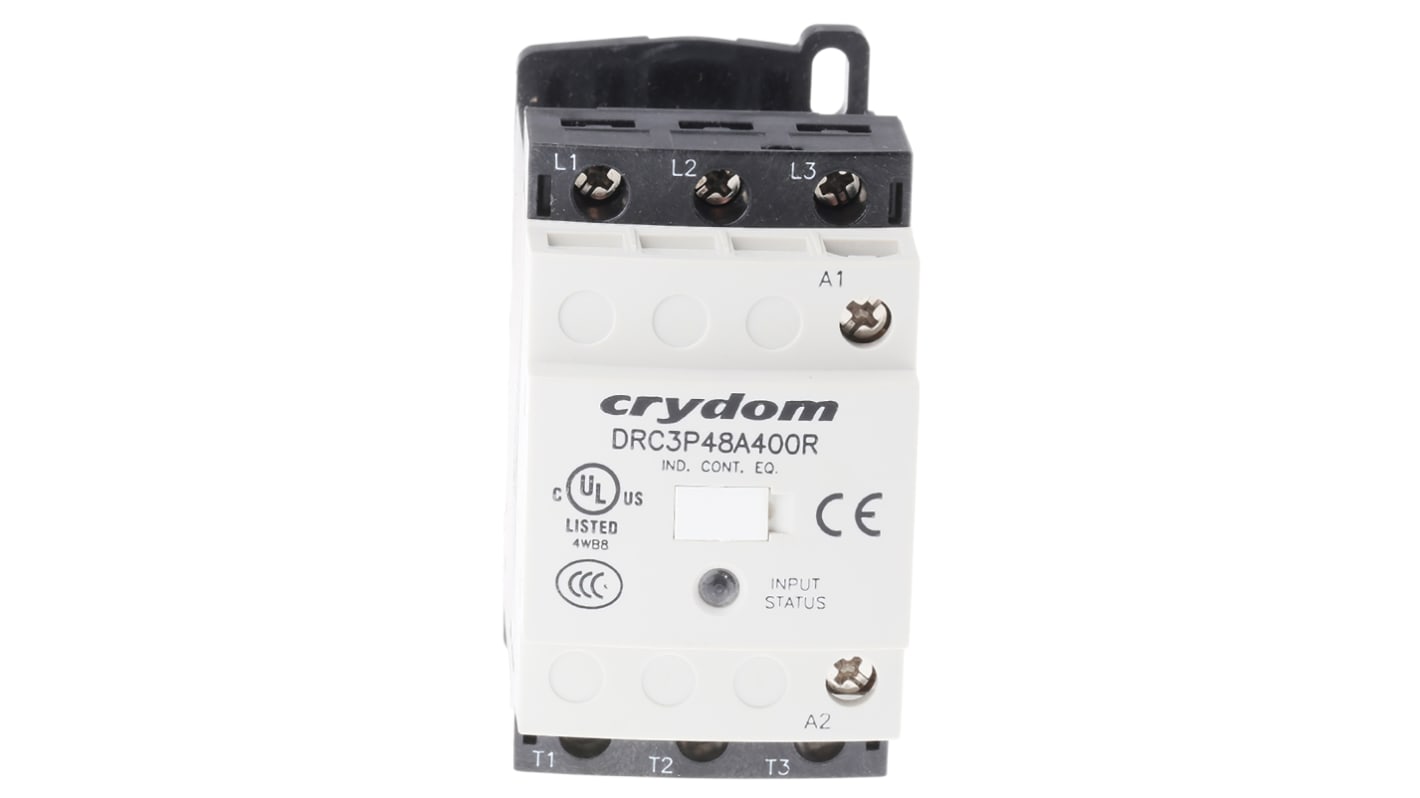

Sensata / Crydom DRC Series Solid State Relay, 4.8 A Load, DIN Rail Mount, 265V ac Control

View all Solid State Relays

Subtotal (1 unit)*

£88.76

(exc. VAT)

£106.51

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£88.76

*price indicative

RS Stock No.:
822-9331
Mfr. Part No.:
DRC3P48A400R
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Product Type

Solid State Relay

Maximum Load Current

4.8A

Mount Type

DIN Rail

Minimum Load Voltage

48V ac

Minimum Control Voltage

208V ac

Maximum Control Voltage

265V ac

Series

DRC

Terminal Type

Screw

IP Rating

IP20

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

80°C

Standards/Approvals

C-UL-US Listed, IEC Rated, CE & RoHS Compliant,UL Listed, IEC60947-2,CCC,EMC,IEC 61000-4-2,IEC 61000-4-4,IEC 61000-4-5,IEC 60068-2-6,IEC 60068-2-27

Width

95.6mm

Length

45.31mm

Height

96.02mm

Capacitance

20pF

Off State Leakage Current

3mArms

Crydom DRC Series Solid State Contactors


Crydom DRC Series Solid State Contactors are intended for frequently switching on and off three phase loads up to 5 HP. They are available in both contactor versions DRC3P and reversing contactor versions DRC3R.

DRC3P are available in either instantaneous turn-on (for Motor Control) or zero voltage turn-on (for Resistive Loads).

DRC3R include an interlock control that allows only off, forward and reverse operation in a safe mode: they switch

instantaneously upon application of the control voltage and when an instantaneous change of direction is commanded they will delay the direction change by 100m/sec in order to prevent simultaneous forward and reverse operations.

This unique solid state contactor can start/stop a 3 Phase AC Motor at a maximum switching frequency of 9000 cycles/hour.

7.6 Amp Motor Controller rated Solid State Contactor

Load voltage range up to 530 VAC

Fits standard 35 mm DIN rail

LED input status indicator

AC or DC control

Zero crossing (resistive loads) or instantaneous turn-on (inductive loads) output

Built in Overvoltage Protection

Ultra-efficient thermal management design (Patented)

C-UL-US Listed, IEC Rated, CE & RoHS Compliant, Horsepower Rated

Embedded auxiliary contacts

DRC3R has reversing control (DRC3R includes On/Off and Forward/Reverse control in a compact 45 mm package)

Output terminals designed for an easy connection to multiple motor connections in parallel for a total up to 5 HP @ 480 Vac

Very low input control current

UL Listed, IEC60947-2 standard package

Solid State Contactors


Note

The reversing option has dual control inputs.
