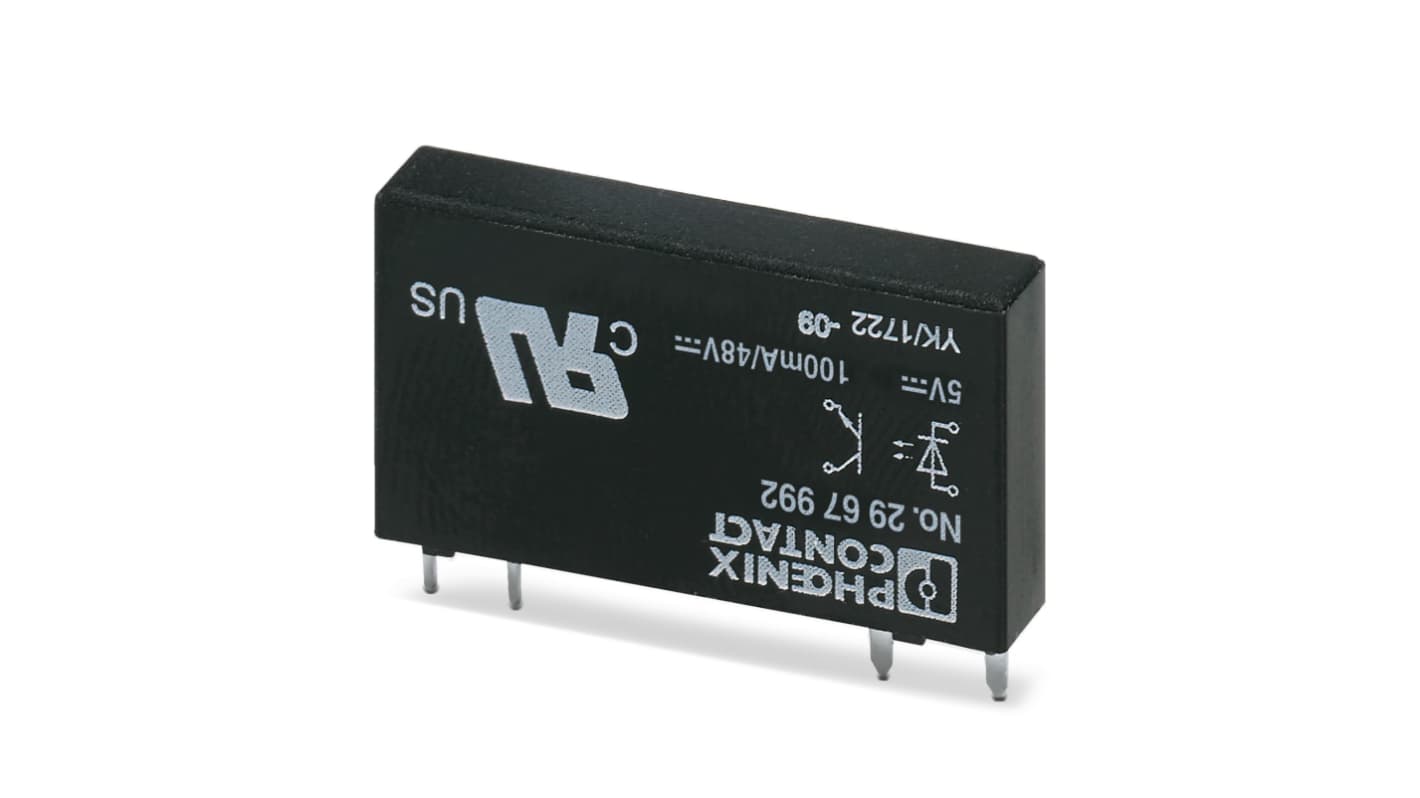

Phoenix Contact Solid State Relay, Through Hole, 6 V dc Control
- RS Stock No.:
- 801-7797
- Mfr. Part No.:
- 2967992
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£19.11
(exc. VAT)
£22.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £19.11 |
| 10 - 24 | £17.57 |
| 25 - 49 | £16.83 |
| 50 - 99 | £16.05 |
| 100 + | £15.87 |
*price indicative
- RS Stock No.:
- 801-7797
- Mfr. Part No.:
- 2967992
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Mounting Type | Through Hole | |
| Maximum Control Voltage | 6 V dc | |
| Switching Type | DC | |
| Control Voltage Range | 4 → 6 V | |
| Terminal Type | PCB Pin | |
| Contact Configuration | SPST | |
| Relay Type | Solid State Relay | |
| Maximum Turn On Time | 0.02ms | |
| Dimensions | 28 x 5 x 15mm | |
| Height | 28mm | |
| Minimum Operating Temperature | -25°C | |
| Depth | 15mm | |
| Maximum Operating Temperature | +80°C | |
| Operating Temperature Range | -25 → +80°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Mounting Type Through Hole | ||
Maximum Control Voltage 6 V dc | ||
Switching Type DC | ||
Control Voltage Range 4 → 6 V | ||
Terminal Type PCB Pin | ||
Contact Configuration SPST | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 0.02ms | ||
Dimensions 28 x 5 x 15mm | ||
Height 28mm | ||
Minimum Operating Temperature -25°C | ||
Depth 15mm | ||
Maximum Operating Temperature +80°C | ||
Operating Temperature Range -25 → +80°C | ||
- COO (Country of Origin):
- HU
Phoenix Contact PLC-RSC Series
PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installed in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
Features and Benefits
• Relays and opto-couplers for inputs and outputs with "pluggable" switching devices
• Four bridging slots to reduce wiring; bridging of up to 80 modules is possible
• Screw terminal connections
• LED indicators and diodes for coil suppression
• 250V versions have a switched power rating of 1500VA
• Mechanical life (relays) 1 x 107 operations
• Wide range of accessories also available
• Four bridging slots to reduce wiring; bridging of up to 80 modules is possible
• Screw terminal connections
• LED indicators and diodes for coil suppression
• 250V versions have a switched power rating of 1500VA
• Mechanical life (relays) 1 x 107 operations
• Wide range of accessories also available
