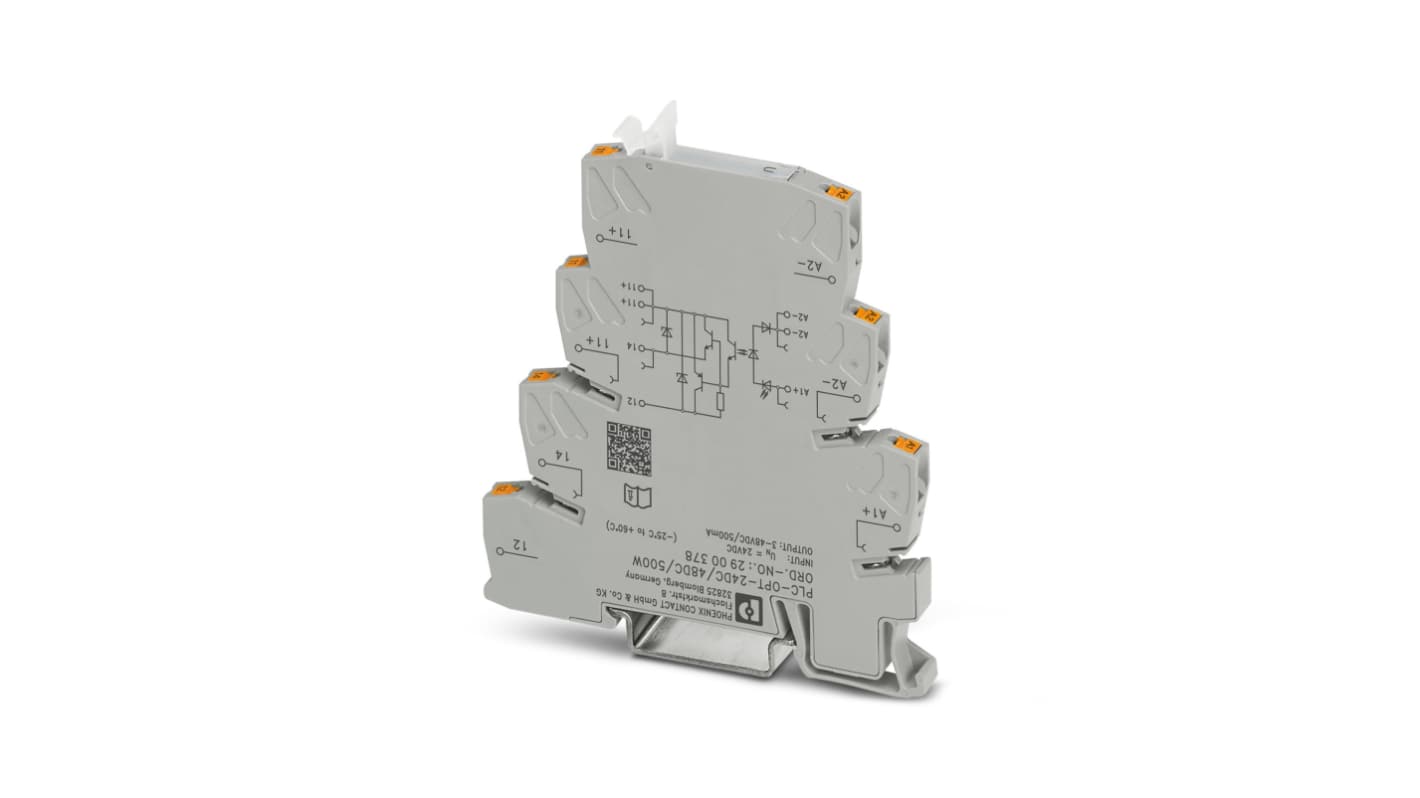

Phoenix Contact PLC-OPT Series Solid State Relay, 500 mA Load, DIN Rail Mount, 48 V dc Load, 28.8 V dc Control
- RS Stock No.:
- 195-4836
- Mfr. Part No.:
- 2900378
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 195-4836
- Mfr. Part No.:
- 2900378
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Maximum Load Current | 500 mA | |
Mounting Type | DIN Rail | |
Maximum Load Voltage | 48 V dc | |
Minimum Load Voltage | 3 V dc | |
Maximum Control Voltage | 28.8 V dc | |
Minimum Control Voltage | 19.2 V dc | |
Control Voltage Range | 19.2 → 28.8 V dc | |
Minimum Load Current | 1 mA | |
Terminal Type | Push In | |
Relay Type | Solid State Relay | |
Load Voltage Range | 3 → 48V dc | |
Maximum Turn On Time | 0.15ms | |
Series | PLC-OPT | |
Dimensions | 6.2 x 94 x 80mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +60°C | |
Depth | 94mm | |
Operating Temperature Range | -25 → +60°C | |
Height | 80mm | |
Length | 6.2mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Maximum Load Current 500 mA | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 48 V dc | ||
Minimum Load Voltage 3 V dc | ||
Maximum Control Voltage 28.8 V dc | ||
Minimum Control Voltage 19.2 V dc | ||
Control Voltage Range 19.2 → 28.8 V dc | ||
Minimum Load Current 1 mA | ||
Terminal Type Push In | ||
Relay Type Solid State Relay | ||
Load Voltage Range 3 → 48V dc | ||
Maximum Turn On Time 0.15ms | ||
Series PLC-OPT | ||
Dimensions 6.2 x 94 x 80mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Depth 94mm | ||
Operating Temperature Range -25 → +60°C | ||
Height 80mm | ||
Length 6.2mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact PLC-OPT Series Solid State Relay, 500mA Maximum Load Current, 48V Maximum Load Voltage - 2900378
This solid state relay is an integral component designed primarily for automation applications. With its robust specifications, including a maximum load current of 500 mA and a voltage range of 3 to 48V DC, this device is optimised for performance in various environments. Featuring a compact size of 6.2 x 94 x 80mm, it can be easily mounted on a DIN rail, making installation straightforward and efficient.
Features & Benefits
• Designed for maximum load currents up to 500 mA
• Operates effectively with a control voltage range of 19.2 to 28.8V DC
• Quick activation with a maximum turn-on time of just 0.15 ms
• Adaptable for a wide load voltage range of 3 to 48V DC
• Enhanced reliability in harsh conditions with an operating temperature range of -25 to +60 °C
• Features push-in terminals for convenient and secure connections
• Operates effectively with a control voltage range of 19.2 to 28.8V DC
• Quick activation with a maximum turn-on time of just 0.15 ms
• Adaptable for a wide load voltage range of 3 to 48V DC
• Enhanced reliability in harsh conditions with an operating temperature range of -25 to +60 °C
• Features push-in terminals for convenient and secure connections
Applications
• Ideal for controlling low voltage DC circuits
• Utilised in industrial automation systems to manage machine operations
• Effective in tasks requiring rapid switching actions
• Employed in environments that demand high temperature tolerance
• Serves well in where compact design is crucial
• Utilised in industrial automation systems to manage machine operations
• Effective in tasks requiring rapid switching actions
• Employed in environments that demand high temperature tolerance
• Serves well in where compact design is crucial
What are the minimum and maximum control voltage levels for this relay?
The relay operates within a control voltage range of 19.2 to 28.8V DC, providing flexibility for various applications.
How does this solid state relay manage temperature variations?
With an operating temperature range from -25 to +60 °C, it is designed to maintain performance even in extreme conditions, making it suitable for diverse applications.
What type of terminal does this relay use for connections?
This relay features push-in terminals that offer a secure and convenient method for making connections, facilitating easier installation.
Can it be used in sensitive electronic applications?
Yes, its fast turn-on time of 0.15 ms ensures efficient operation, making it suitable for sensitive timing applications in automation and control systems.
Is this relay compliant with any safety standards?
The device is cULus certified, indicating it meets rigorous safety and quality standards, ensuring its use in professional settings.
