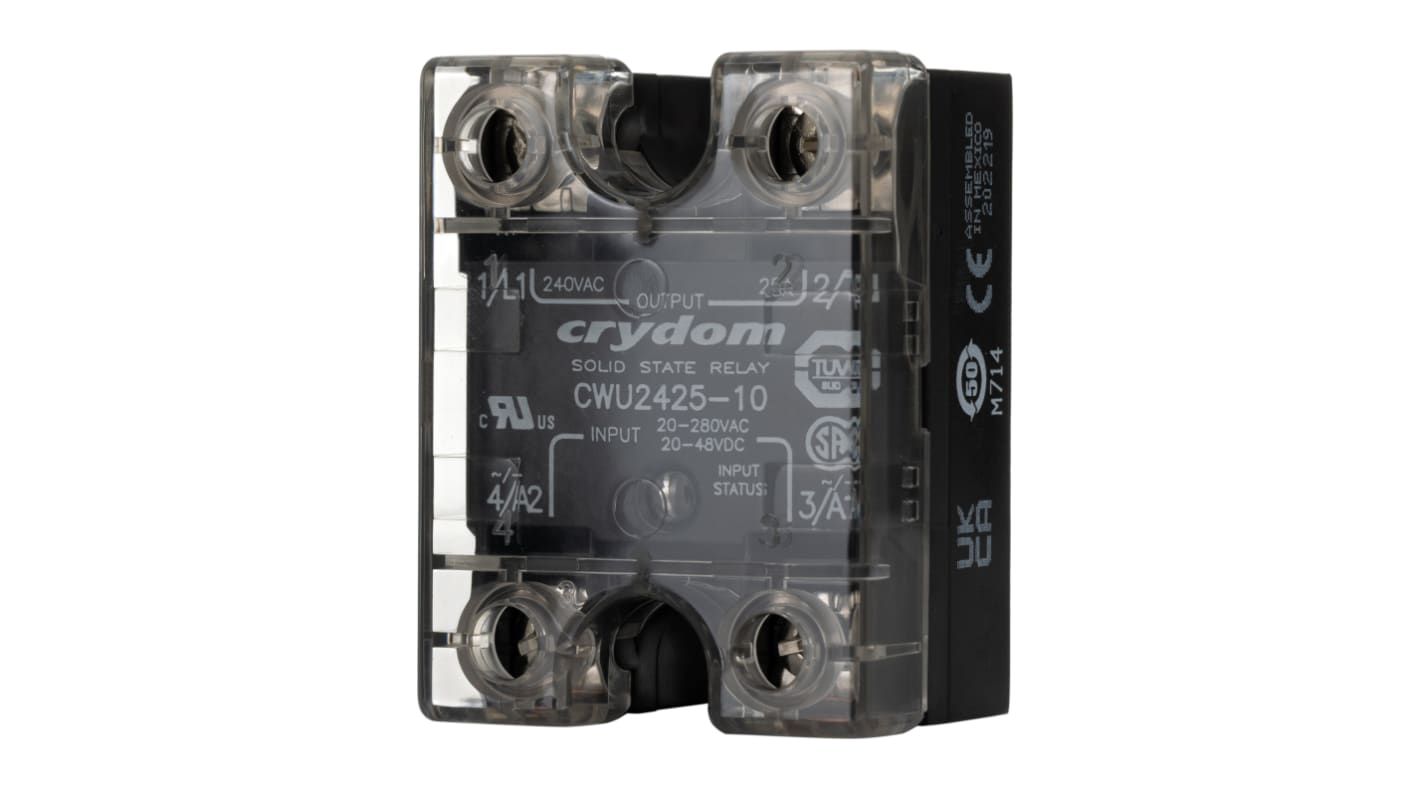

Sensata Crydom CW24 Series Solid State Relay, 25 A Load, Panel Mount, 280 V ac Load, 48 V dc, 280 V ac Control

RS Stock No.:: 776-1774
Mfr. Part No.:: CWU2425-10
Brand:: Sensata / Crydom

Sensata Crydom CW24 Series Solid State Relay, 25 A Load, Panel Mount, 280 V ac Load, 48 V dc, 280 V ac Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£53.76

(exc. VAT)

£64.51

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

18 unit(s) shipping from 16 December 2025
Plus 999,999,981 unit(s) shipping from 20 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£53.76
5 - 9	£51.07
10 - 24	£48.38
25 - 49	£45.69
50 +	£43.00

*price indicative

RS Stock No.:: 776-1774
Mfr. Part No.:: CWU2425-10
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	25 A
	Mounting Type	Panel Mount
	Maximum Load Voltage	280 V ac
	Minimum Load Voltage	24 V ac
	Maximum Control Voltage	48 V dc, 280 V ac
	Minimum Control Voltage	20V ac/dc
	Switching Type	Instantaneous
	Control Voltage Range	20 → 280 V ac, 20 → 48 V dc
	Minimum Load Current	0.15 A
	Terminal Type	Screw
	Output Device	SCR
	Relay Type	Solid State Relay
	Series	CW24
	Load Voltage Range	24 → 280V ac
	Maximum Turn On Time	17ms
	Dimensions	45.7 x 33 x 58.4mm
	Standards Met	CE, CSA, TUV, UL Listed
	Depth	33mm
	Minimum Operating Temperature	-30°C
	Capacitance	8pF
	Height	58.4mm
	Maximum Operating Temperature	+80°C
	Special Features	LED Status Indicator, EMC Compliant To Level 3, Removable IP20 Touch Safe Cover, Epoxy Free Design
	Off State Leakage Current	1 mA
	Length	45.7mm
	Operating Temperature Range	-40 → +80°C

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 25 A
	Mounting Type Panel Mount
	Maximum Load Voltage 280 V ac
	Minimum Load Voltage 24 V ac
	Maximum Control Voltage 48 V dc, 280 V ac
	Minimum Control Voltage 20V ac/dc
	Switching Type Instantaneous
	Control Voltage Range 20 → 280 V ac, 20 → 48 V dc
	Minimum Load Current 0.15 A
	Terminal Type Screw
	Output Device SCR
	Relay Type Solid State Relay
	Series CW24
	Load Voltage Range 24 → 280V ac
	Maximum Turn On Time 17ms
	Dimensions 45.7 x 33 x 58.4mm
	Standards Met CE, CSA, TUV, UL Listed
	Depth 33mm
	Minimum Operating Temperature -30°C
	Capacitance 8pF
	Height 58.4mm
	Maximum Operating Temperature +80°C
	Special Features LED Status Indicator, EMC Compliant To Level 3, Removable IP20 Touch Safe Cover, Epoxy Free Design
	Off State Leakage Current 1 mA
	Length 45.7mm
	Operating Temperature Range -40 → +80°C

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, 25A Rated Load Current, 24 to 280V AC Operating Voltage Range - CW24 Series - CWU2425-10

Take charge of your industrial machinery with this solid-state relay from Sensata | Crydom. It makes or breaks electrical circuits for the automated control of your equipment. As the component has no moving parts, the risk of wear and tear is minimal, so it's maintenance-free. This hardy device withstands temperatures of -40°C to +80°C, so it holds up in harsh work areas. Units like this one are commonly found in robotics, motor control and digital data acquisition.

Features & Benefits

• MTBF of over 11 million hours at +40°C for long-lasting performance
• Removable cover has an IP20 rating, so it's finger-safe and protected against objects larger than 12mm
• Light weight of 81.53g to place minimal strain on your setup

What's this unit's current rating?

It has a rated load current of 25A, so it's just the thing for use in high-power applications.

How quickly does this SSR switch on and off?

It has a maximum turn-on time of 20ms and a maximum turn-off time of 30ms, so it switches in the blink of an eye.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
