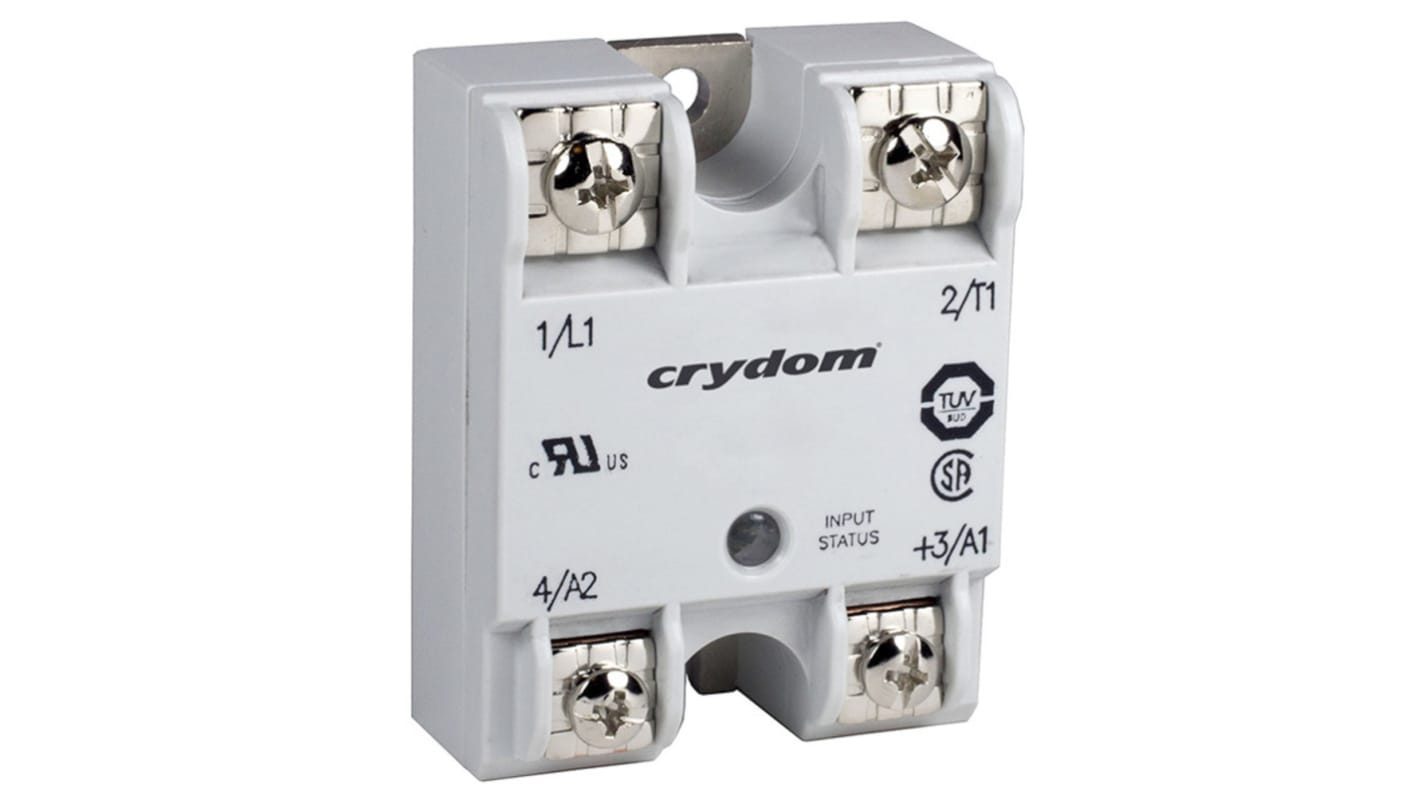

Sensata Crydom GNA5 Series Solid State Relay, 10 A rms Load, Panel Mount, 280 V ac Load, 280 V ac Control

View all Solid State Relays
Bulk discount available

Subtotal (1 unit)*

£49.98

(exc. VAT)

£59.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£49.98
5 - 9£47.48
10 - 24£44.98
25 - 49£42.48
50 +£39.98

*price indicative

RS Stock No.:
170-7324
Mfr. Part No.:
84134901
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Maximum Load Current

10 A rms

Mounting Type

Panel Mount

Maximum Load Voltage

280 V ac

Minimum Load Voltage

24 V ac

Maximum Control Voltage

280 V ac

Minimum Control Voltage

90 V ac

Switching Type

Zero Voltage Turn-On

Control Voltage Range

90 → 280 V ac

Minimum Load Current

100mA rms

Terminal Type

Screw

Output Device

Triac

Relay Type

Solid State Relay

Series

GNA5

Maximum Turn On Time

20ms

Load Voltage Range

24 → 280V ac

Dimensions

44.5 x 22.6 x 57.3mm

Capacitance

8pF

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-40°C

Special Features

LED Input Status Indicator

Depth

22.6mm

Operating Temperature Range

-40 → +80°C

Length

44.5mm

Off State Leakage Current

0.1mA rms

Height

57.3mm

COO (Country of Origin):
MX
Crydom’s CZT products are technology proven AC output solid state relays and contactors in the 3 main types of mounting packages: DIN Rail Mount, Panel Mount and PCB Mount. These relays offer a broad range of power ratings which makes them suitable for diverse applications.

Current rating 10 and 25 Amps
Output voltage 24-280 VAC
Triac Output (Resistive Loads Only)
LED Input Status Indicator
Improved SEMS screw and washer
Screw or Quick Connect
Redesigned housing with anti-rotation barriers
