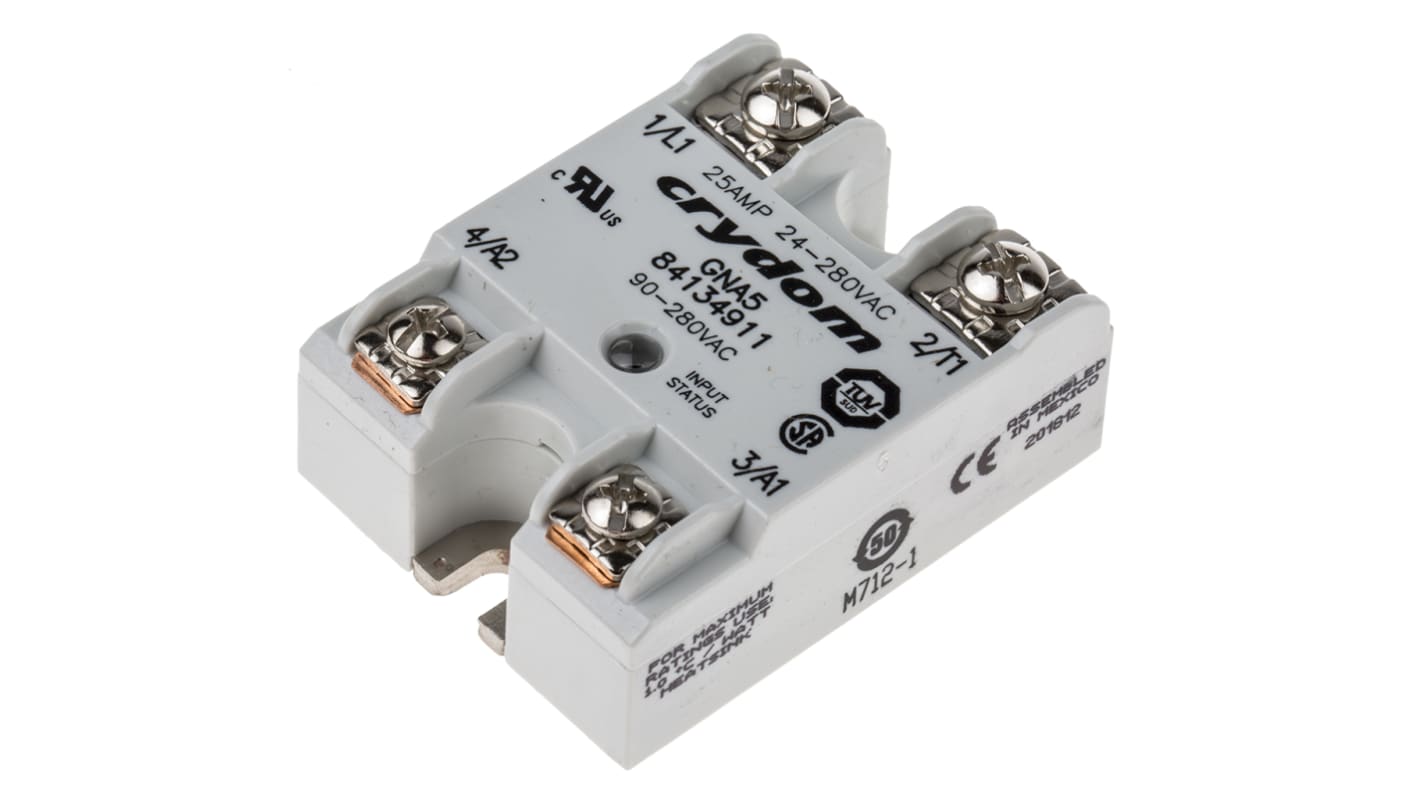

Sensata Crydom GNA5 Series Solid State Relay, 25 A rms Load, Panel Mount, 280 V ac Load, 280 V ac Control
- RS Stock No.:
- 170-7325
- Distrelec Article No.:
- 137-44-836
- Mfr. Part No.:
- 84134911
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£53.18
(exc. VAT)
£63.82
(inc. VAT)
FREE delivery for orders over £50.00
- 17 unit(s) ready to ship
Units | Per unit |
---|---|
1 - 4 | £53.18 |
5 - 9 | £50.52 |
10 - 24 | £47.86 |
25 - 49 | £45.21 |
50 + | £42.54 |
*price indicative
- RS Stock No.:
- 170-7325
- Distrelec Article No.:
- 137-44-836
- Mfr. Part No.:
- 84134911
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Crydom | |
Maximum Load Current | 25 A rms | |
Mounting Type | Panel Mount | |
Maximum Load Voltage | 280 V ac | |
Minimum Load Voltage | 24 V ac | |
Maximum Control Voltage | 280 V ac | |
Minimum Control Voltage | 90 V ac | |
Switching Type | Zero Voltage Turn-On | |
Control Voltage Range | 90 → 280 V ac | |
Minimum Load Current | 100mA rms | |
Terminal Type | Screw | |
Output Device | Triac | |
Relay Type | Solid State Relay | |
Maximum Turn On Time | 20ms | |
Series | GNA5 | |
Load Voltage Range | 24 → 280V ac | |
Dimensions | 44.5 x 22.6 x 57.3mm | |
Off State Leakage Current | 0.1mA rms | |
Length | 44.5mm | |
Height | 57.3mm | |
Operating Temperature Range | -40 → +80°C | |
Minimum Operating Temperature | -40°C | |
Depth | 22.6mm | |
Capacitance | 8pF | |
Maximum Operating Temperature | +80°C | |
Special Features | LED Input Status Indicator | |
Select all | ||
---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 25 A rms | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 280 V ac | ||
Minimum Load Voltage 24 V ac | ||
Maximum Control Voltage 280 V ac | ||
Minimum Control Voltage 90 V ac | ||
Switching Type Zero Voltage Turn-On | ||
Control Voltage Range 90 → 280 V ac | ||
Minimum Load Current 100mA rms | ||
Terminal Type Screw | ||
Output Device Triac | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 20ms | ||
Series GNA5 | ||
Load Voltage Range 24 → 280V ac | ||
Dimensions 44.5 x 22.6 x 57.3mm | ||
Off State Leakage Current 0.1mA rms | ||
Length 44.5mm | ||
Height 57.3mm | ||
Operating Temperature Range -40 → +80°C | ||
Minimum Operating Temperature -40°C | ||
Depth 22.6mm | ||
Capacitance 8pF | ||
Maximum Operating Temperature +80°C | ||
Special Features LED Input Status Indicator | ||
