Carlo Gavazzi Solid State Relay, 40 A Load, DIN Rail Mount, 240 V ac Load, 32 V dc Control
- RS Stock No.:
- 775-3158
- Mfr. Part No.:
- RGC1FS23D40GGE
- Brand:
- Carlo Gavazzi

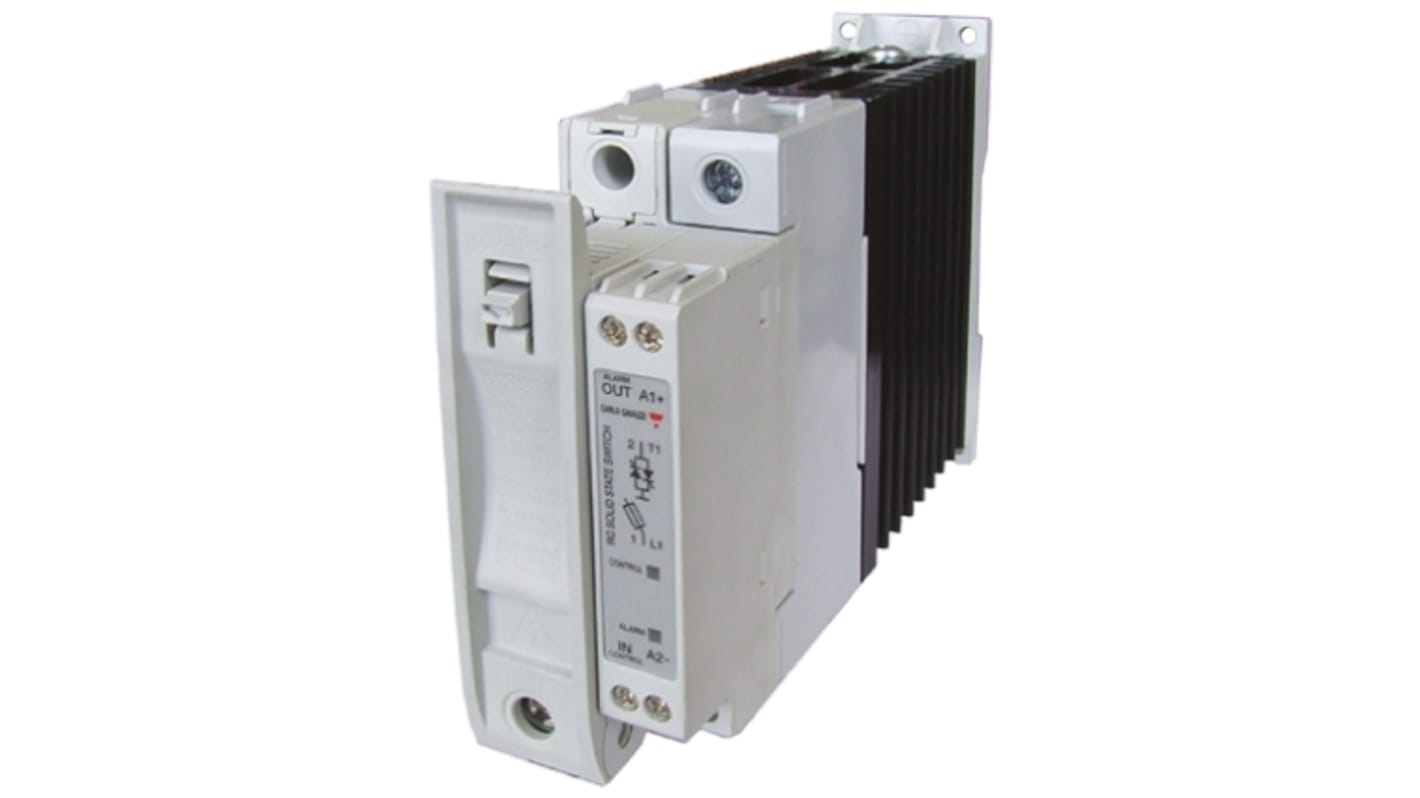

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 775-3158
- Mfr. Part No.:
- RGC1FS23D40GGE
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 40 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 240 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 0.2 A | |
| Contact Configuration | SP-NC | |
| Terminal Type | Box Clamp | |
| Output Device | PNP Open Collector | |
| Package Style | Module | |
| Load Voltage Range | 24 → 240V ac | |
| Dimensions | 35.6 x 169.5 x 110mm | |
| Minimum Operating Temperature | -30°C | |
| Depth | 169.5mm | |
| Operating Temperature Range | -30 → +80°C | |
| Length | 35.6mm | |
| Height | 110mm | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 40 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 240 V ac | ||
Minimum Load Voltage 24 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 0.2 A | ||
Contact Configuration SP-NC | ||
Terminal Type Box Clamp | ||
Output Device PNP Open Collector | ||
Package Style Module | ||
Load Voltage Range 24 → 240V ac | ||
Dimensions 35.6 x 169.5 x 110mm | ||
Minimum Operating Temperature -30°C | ||
Depth 169.5mm | ||
Operating Temperature Range -30 → +80°C | ||
Length 35.6mm | ||
Height 110mm | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- MT
RGC1F Series Solid State Contactors with Integrated Fuse
The RGC1F series of solid state contactors include three functions in one housing, power switching, short circuit protection by semiconductor fuse and system monitoring. This series of contactors also include a monitoring function which detects load, fuse and SSR faults. The front panel of these solid state contactors can be opened for easy access to the fuse and the fuse holder accepts fuses from a wide range of manufacturers.
Alarm signal output
100 kA short circuit current rating
IP20 ingress protection
100 kA short circuit current rating
IP20 ingress protection
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
