Carlo Gavazzi Solid State Relay, 50 A rms Load, DIN Rail Mount, 265 V ac Load, 10 V dc Control
- RS Stock No.:
- 708-2084
- Mfr. Part No.:
- RJ1P23V50E
- Brand:
- Carlo Gavazzi

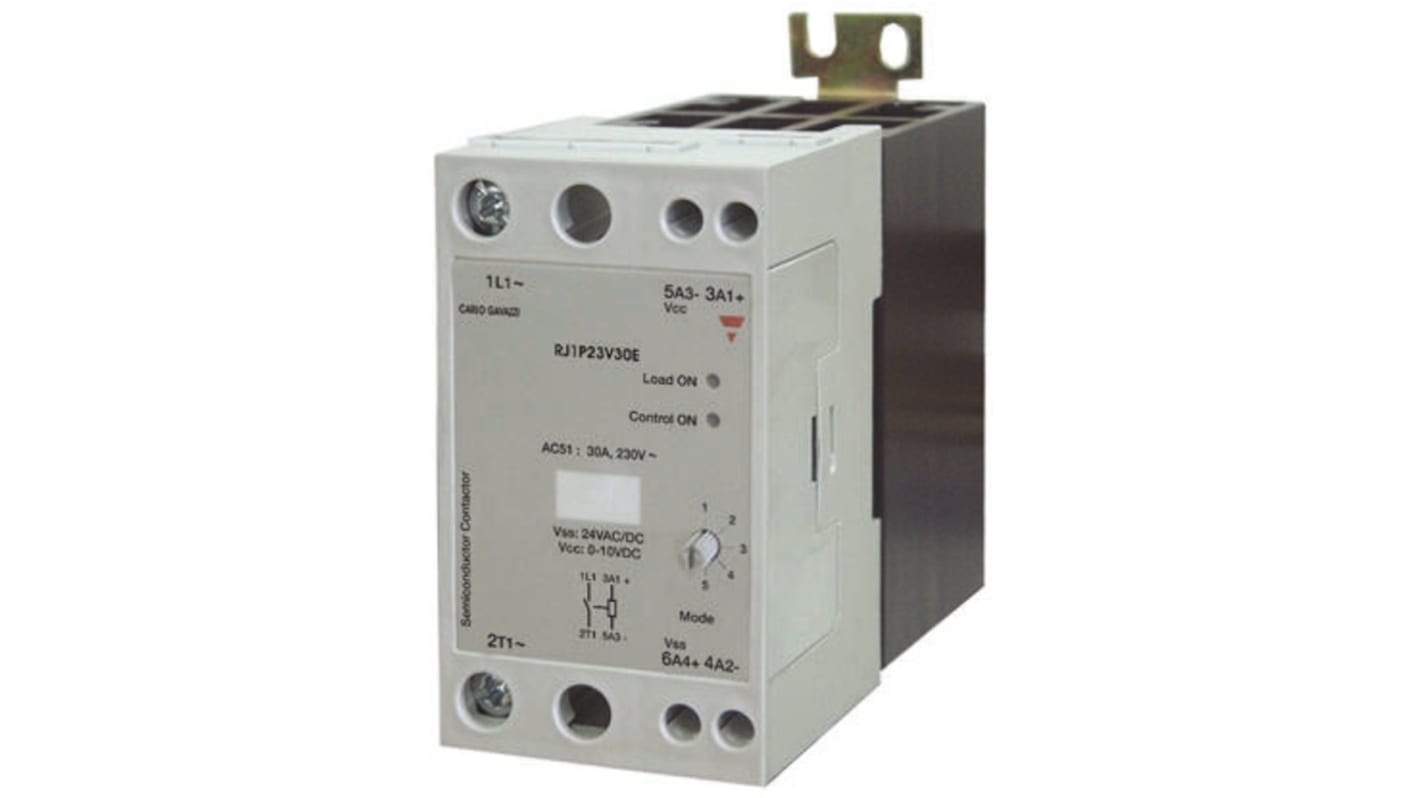

Image representative of range
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£78.21
(exc. VAT)
£93.85
(inc. VAT)
- RS Stock No.:
- 708-2084
- Mfr. Part No.:
- RJ1P23V50E
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 50 A rms | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 265 V ac | |
| Minimum Load Voltage | 90 V ac | |
| Maximum Control Voltage | 10 V dc | |
| Minimum Control Voltage | 0 V dc | |
| Control Voltage Range | 0 → 10 V dc | |
| Minimum Load Current | 500 mA rms | |
| Terminal Type | Screw | |
| Load Voltage Range | 90 → 265V ac | |
| Dimensions | 45 x 103 x 81.7mm | |
| Off State Leakage Current | 3 mA rms | |
| Minimum Operating Temperature | -20°C | |
| Depth | 103mm | |
| Operating Temperature Range | -20 → +70°C | |
| Height | 81.7mm | |
| Maximum Operating Temperature | +70°C | |
| Length | 45mm | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 50 A rms | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 265 V ac | ||
Minimum Load Voltage 90 V ac | ||
Maximum Control Voltage 10 V dc | ||
Minimum Control Voltage 0 V dc | ||
Control Voltage Range 0 → 10 V dc | ||
Minimum Load Current 500 mA rms | ||
Terminal Type Screw | ||
Load Voltage Range 90 → 265V ac | ||
Dimensions 45 x 103 x 81.7mm | ||
Off State Leakage Current 3 mA rms | ||
Minimum Operating Temperature -20°C | ||
Depth 103mm | ||
Operating Temperature Range -20 → +70°C | ||
Height 81.7mm | ||
Maximum Operating Temperature +70°C | ||
Length 45mm | ||
- COO (Country of Origin):
- MT
Proportional and Power
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
