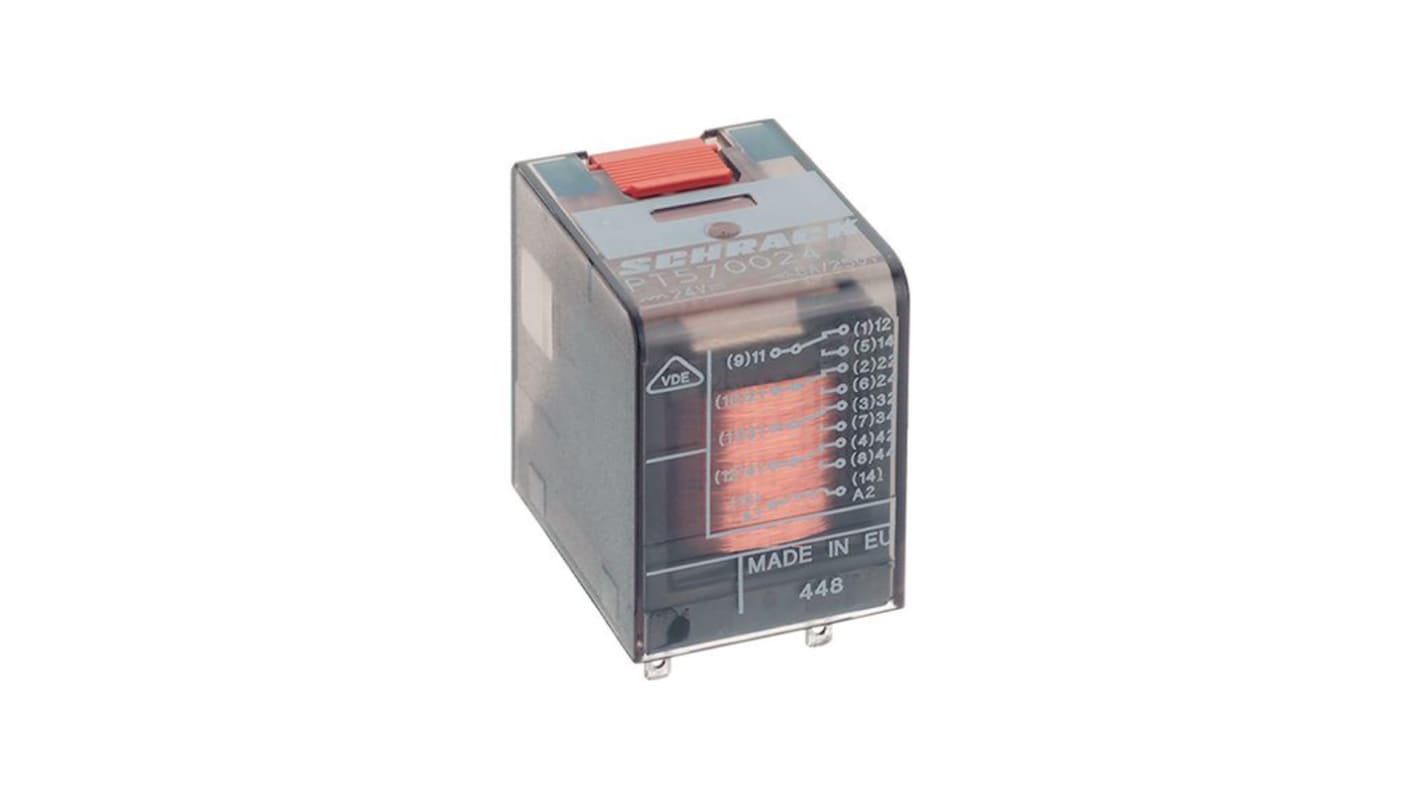

TE Connectivity PT Series Solid State Relay, 12 A Load, Plug-in Mount, 400 V ac/dc Load
- RS Stock No.:
- 285-8055
- Distrelec Article No.:
- 302-21-372
- Mfr. Part No.:
- 7-1419111-1
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£20.68
(exc. VAT)
£24.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 19 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.68 |
*price indicative
- RS Stock No.:
- 285-8055
- Distrelec Article No.:
- 302-21-372
- Mfr. Part No.:
- 7-1419111-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 12A | |
| Mount Type | Plug-in | |
| Maximum Load Voltage | 400V ac/dc | |
| Series | PT | |
| Terminal Type | PCB Terminal | |
| Contact Configuration | 3 CO | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 29mm | |
| Width | 22.5mm | |
| Standards/Approvals | No | |
| Length | 28mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Solid State Relay | ||
Maximum Load Current 12A | ||
Mount Type Plug-in | ||
Maximum Load Voltage 400V ac/dc | ||
Series PT | ||
Terminal Type PCB Terminal | ||
Contact Configuration 3 CO | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Height 29mm | ||
Width 22.5mm | ||
Standards/Approvals No | ||
Length 28mm | ||
- COO (Country of Origin):
- AT
The Miniature Relay is designed for general purpose applications in control and automation. With its 2, 3, or 4 form C (CO) contacts and 12A, 10A, or 6A contact ratings, it offers reliable switching performance up to 3000VA. The relay also features a compact size of 29mm in height, making it suitable for space-constrained installations. With options like a mechanical indicator, LED, and protection diode, as well as a manual test tab and lockable feature, this relay provides flexibility and convenience. Its white marking tabs allow for easy identification and organization. Approved by VDE, UL, and Lloyds, this relay is a reliable choice for various industrial applications.
Reliable switching performance up to 3000VA
Compact size of 29mm in height for space-constrained installations
Optional features like mechanical indicator, LED, and protection diode
Manual test tab with lockable option for convenience
White marking tabs for easy identification
Approved by VDE, UL, and Lloyds for reliability
