- RS Stock No.:
- 703-9948
- Mfr. Part No.:
- 1SNA645025R2200 OBOC2000-24VUC
- Brand:
- ABB
Available to back order for despatch 10/05/2024
Added
Price Each
£29.12
(exc. VAT)
£34.94
(inc. VAT)
Units | Per unit |
1 - 4 | £29.12 |
5 - 9 | £27.66 |
10 - 24 | £26.21 |
25 - 49 | £24.75 |
50 + | £23.30 |
- RS Stock No.:
- 703-9948
- Mfr. Part No.:
- 1SNA645025R2200 OBOC2000-24VUC
- Brand:
- ABB
Technical Reference
Legislation and Compliance
Product Details

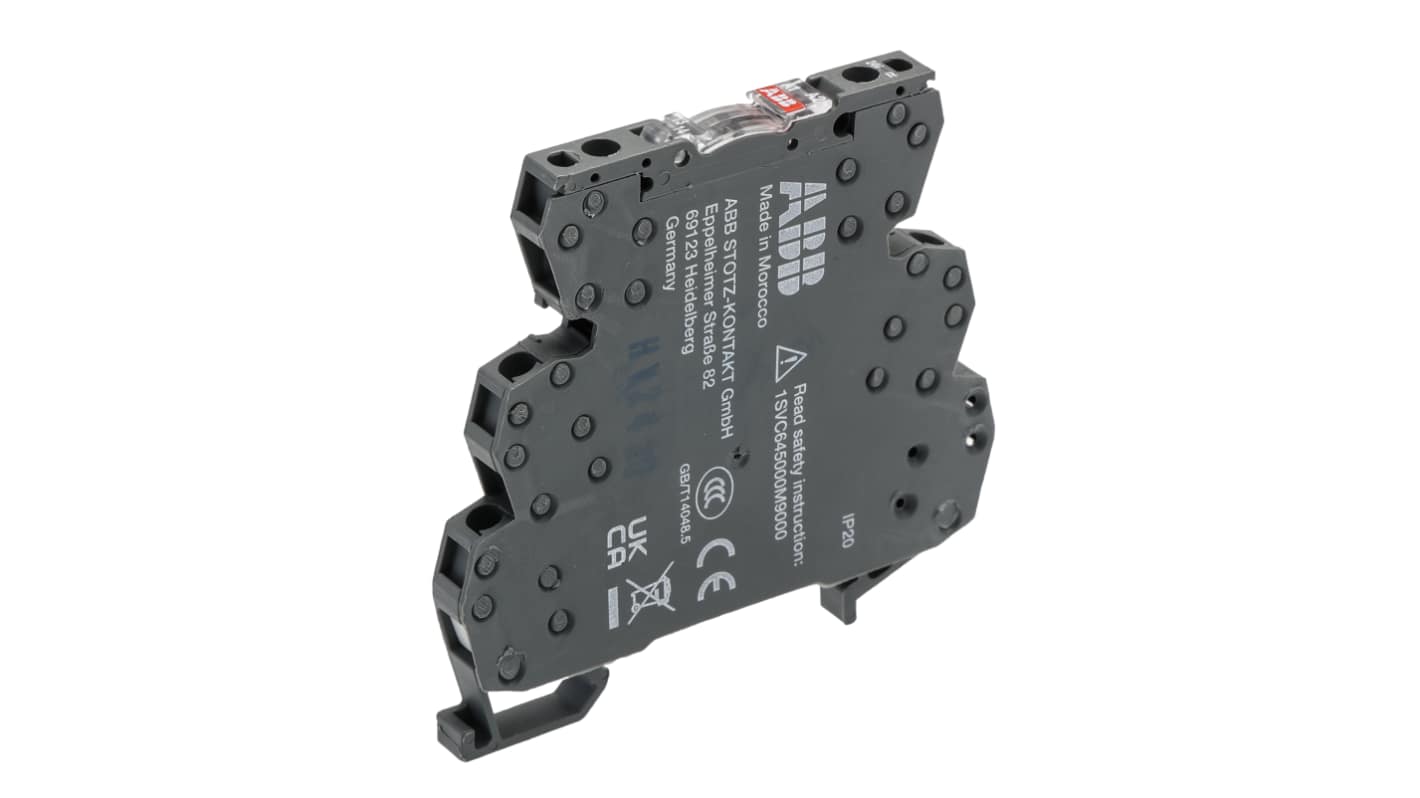

ABB Solid State Relay, MOS-FET Output, Screw Connection - 7600 Series - 1SNA645025R2200
Looking for a reliable switching solution for circuits in your industrial equipment? Pick this solid state relay from ABB. Its sensor detects operational signals that it uses to turn bits of kit on or off, giving you automated command of your system. There are no moving parts, so it doesn't suffer mechanical wear and delivers long-term performance. This relay handles tough conditions with ease thanks to an operating temperature range of -20°C to +70°C. You don't need any assembly tools to mount it – simply snap it onto a DIN rail.
Features & Benefits
• MOS-FET output means you can count on high-speed switching rates
• Compact dimensions of 70 (L) x 6 (W) x 67.5mm (H) make it a space-efficient choice
• Integrated LED status indicator for easy monitoring and fault diagnosis
• Voltage switching range between 4.5 and 58V DC means it's ideal for light-duty applications
• Compact dimensions of 70 (L) x 6 (W) x 67.5mm (H) make it a space-efficient choice
• Integrated LED status indicator for easy monitoring and fault diagnosis
• Voltage switching range between 4.5 and 58V DC means it's ideal for light-duty applications
Applications
• Robotics and automation systems
• Oil and gas plants
• Marine engineering
• Oil and gas plants
• Marine engineering
Does this relay withstand surge voltages?
Yes, it handles up to 2.5kV of impulse voltage without breaking a sweat, so it's ideal for use in unstable settings.
Specifications
Attribute | Value |
---|---|
Mounting Type | DIN Rail |
Maximum Control Voltage | 24 V ac/dc |
Terminal Type | Screw |
Relay Type | Solid State Relay |
Length | 73mm |
Height | 71mm |
Standards Met | CE, CSA |
Depth | 80mm |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +70°C |
