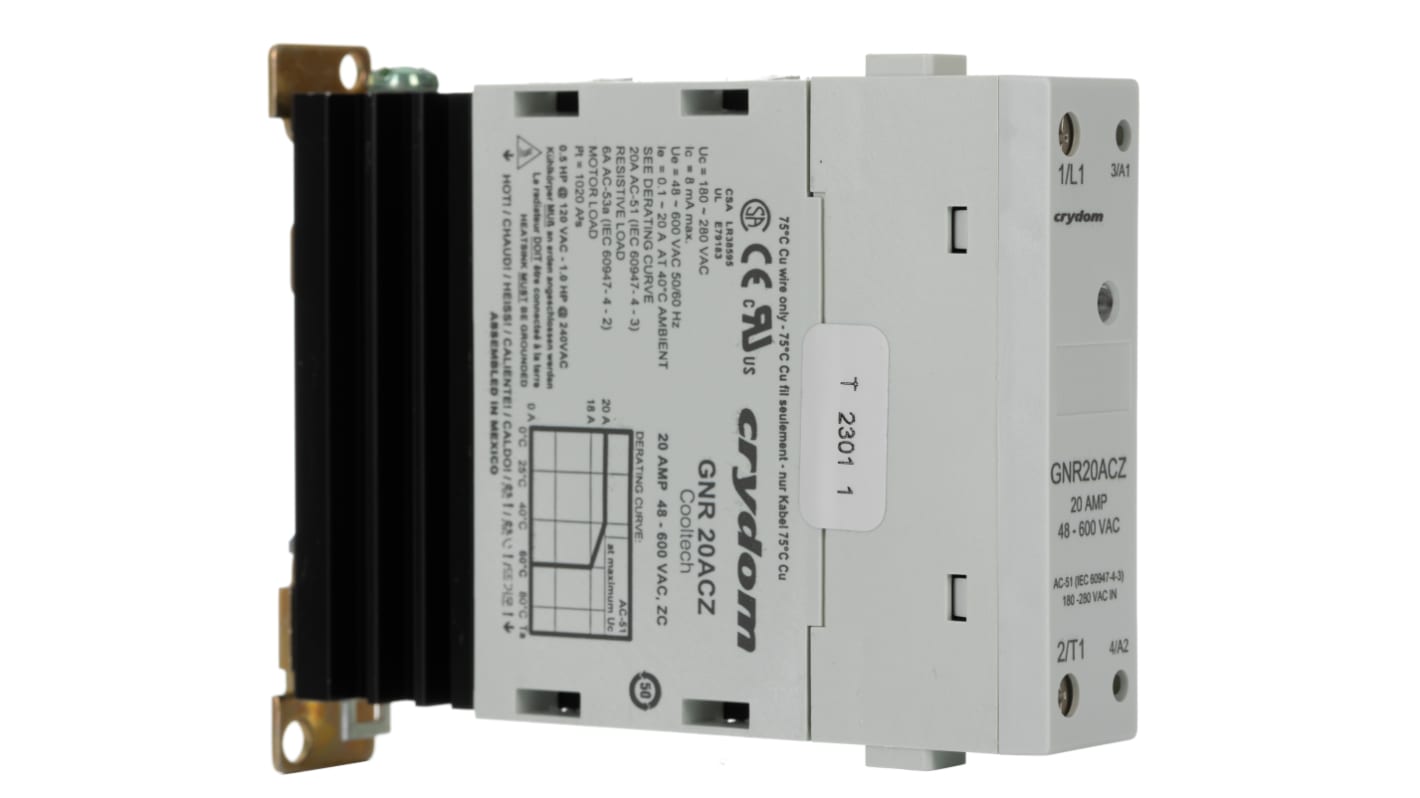

Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control
- RS Stock No.:
- 145-0550
- Mfr. Part No.:
- GNR20ACZ
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£107.76
(exc. VAT)
£129.31
(inc. VAT)
FREE delivery for orders over £50.00
- Final 10 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £107.76 |
| 5 - 9 | £102.37 |
| 10 - 24 | £96.98 |
| 25 - 49 | £91.59 |
| 50 + | £86.21 |
*price indicative
- RS Stock No.:
- 145-0550
- Mfr. Part No.:
- GNR20ACZ
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 20 A rms | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 600 V rms | |
| Minimum Load Voltage | 48Vrms | |
| Maximum Control Voltage | 260 V ac | |
| Minimum Control Voltage | 180 V ac | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 180 → 260 V ac | |
| Minimum Load Current | 100 A rms | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Relay Type | Solid State Relay | |
| Maximum Turn On Time | 30ms | |
| Series | GNR | |
| Load Voltage Range | 48 → 600Vrms | |
| Dimensions | 123.4 x 120.7 x 88.1mm | |
| Capacitance | 8pF | |
| Depth | 120.7mm | |
| Maximum Operating Temperature | +80°C | |
| Length | 123.4mm | |
| Off State Leakage Current | 0.25mArms | |
| Height | 88.1mm | |
| Operating Temperature Range | -20 → +80°C | |
| Minimum Operating Temperature | -20°C | |
| Standards Met | CE, CSA, UL | |
| Special Features | Built-In Overvoltage Protection, Direct Bond Copper Substrate, LED Input Status Indicator | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 20 A rms | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V rms | ||
Minimum Load Voltage 48Vrms | ||
Maximum Control Voltage 260 V ac | ||
Minimum Control Voltage 180 V ac | ||
Switching Type Zero Cross | ||
Control Voltage Range 180 → 260 V ac | ||
Minimum Load Current 100 A rms | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 30ms | ||
Series GNR | ||
Load Voltage Range 48 → 600Vrms | ||
Dimensions 123.4 x 120.7 x 88.1mm | ||
Capacitance 8pF | ||
Depth 120.7mm | ||
Maximum Operating Temperature +80°C | ||
Length 123.4mm | ||
Off State Leakage Current 0.25mArms | ||
Height 88.1mm | ||
Operating Temperature Range -20 → +80°C | ||
Minimum Operating Temperature -20°C | ||
Standards Met CE, CSA, UL | ||
Special Features Built-In Overvoltage Protection, Direct Bond Copper Substrate, LED Input Status Indicator | ||
