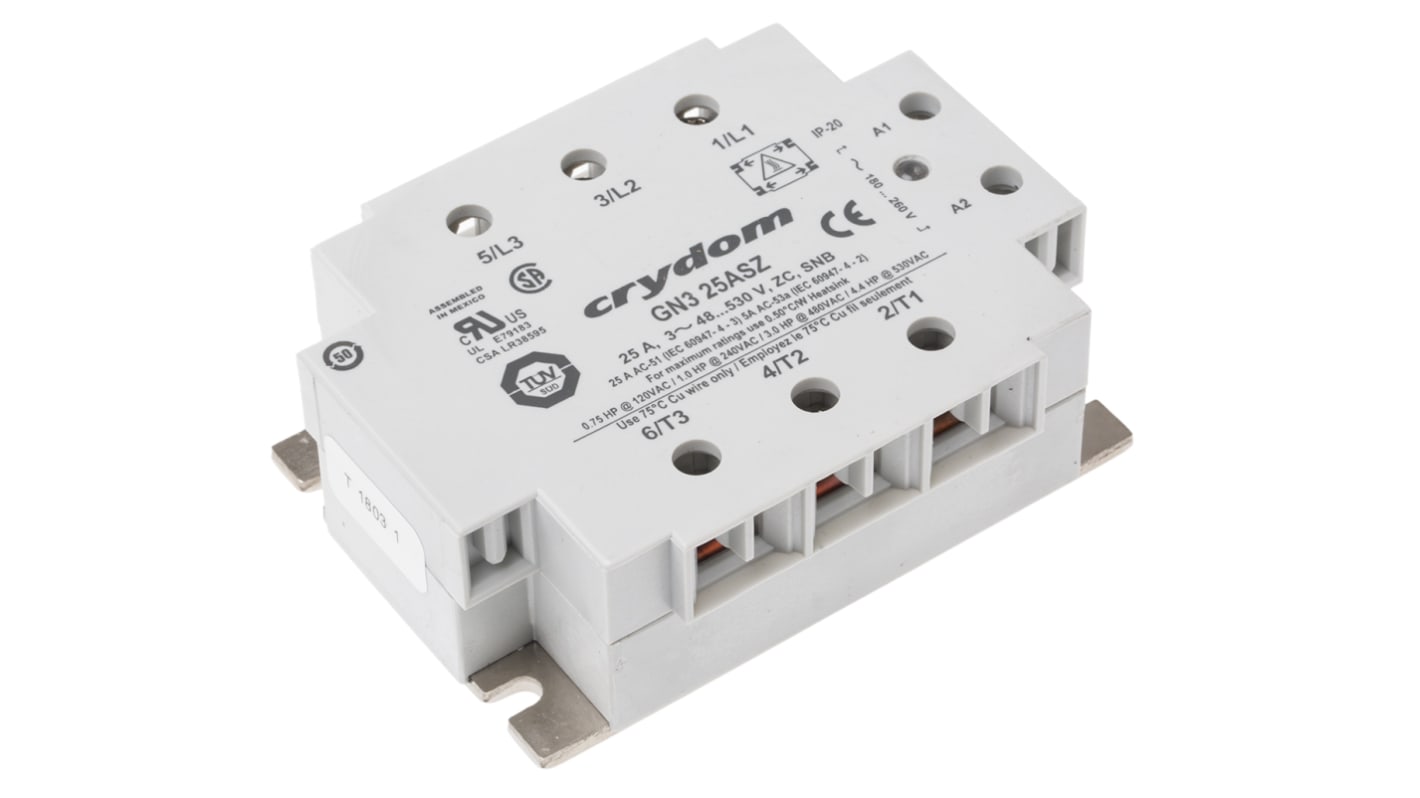

Sensata / Crydom GN3 Series Solid State Relay, 25 A rms Load, Panel Mount, 600 V ac Load, 260 V ac Control
- RS Stock No.:
- 170-7337
- Mfr. Part No.:
- GN325ASZ
- Brand:
- Sensata / Crydom
Available to back order for despatch 07/11/2024
Added
Price Each
£237.90
(exc. VAT)
£285.48
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £237.90 |
| 5 - 9 | £226.01 |
| 10 - 24 | £214.11 |
| 25 - 49 | £202.22 |
| 50 + | £190.32 |
- RS Stock No.:
- 170-7337
- Mfr. Part No.:
- GN325ASZ
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Crydom’s CZT products are technology proven AC output solid state relays and contactors in the 3 main types of mounting packages: DIN Rail Mount, Panel Mount and PCB Mount. These relays offer a broad range of power ratings which makes them suitable for diverse applications.
Current ratings of 25 and 50 Amps
Output voltage rating: 48-600 VAC
Direct bond copper substrate
LED input status indicator
Transient protection built-in
Output voltage rating: 48-600 VAC
Direct bond copper substrate
LED input status indicator
Transient protection built-in
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 25 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 600 V ac |
| Minimum Load Voltage | 48 V ac |
| Maximum Control Voltage | 260 V ac |
| Minimum Control Voltage | 180 V ac |
| Switching Type | Zero Voltage Turn-On |
| Control Voltage Range | 180 → 260 V ac |
| Minimum Load Current | 100mA rms |
| Terminal Type | Screw |
| Output Device | Triac |
| Relay Type | Solid State Relay |
| Load Voltage Range | 48 → 600V ac |
| Series | GN3 |
| Maximum Turn On Time | 20ms |
| Dimensions | 101.3 x 36.83 x 79.7mm |
| Off State Leakage Current | 0.06mArms |
| Maximum Operating Temperature | +80°C |
| Capacitance | 8pF |
| Height | 79.7mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Length | 101.3mm |
| Depth | 36.8mm |
| Special Features | LED Input Status Indicator, Transient Protection Built-In |
