Sensata Crydom CTR Series Solid State Relay, 25 A rms Load, DIN Rail Mount, 600 V rms Load, 280 V rms Control
- RS Stock No.:
- 720-4063
- Mfr. Part No.:
- CTRC6025
- Brand:
- Sensata / Crydom

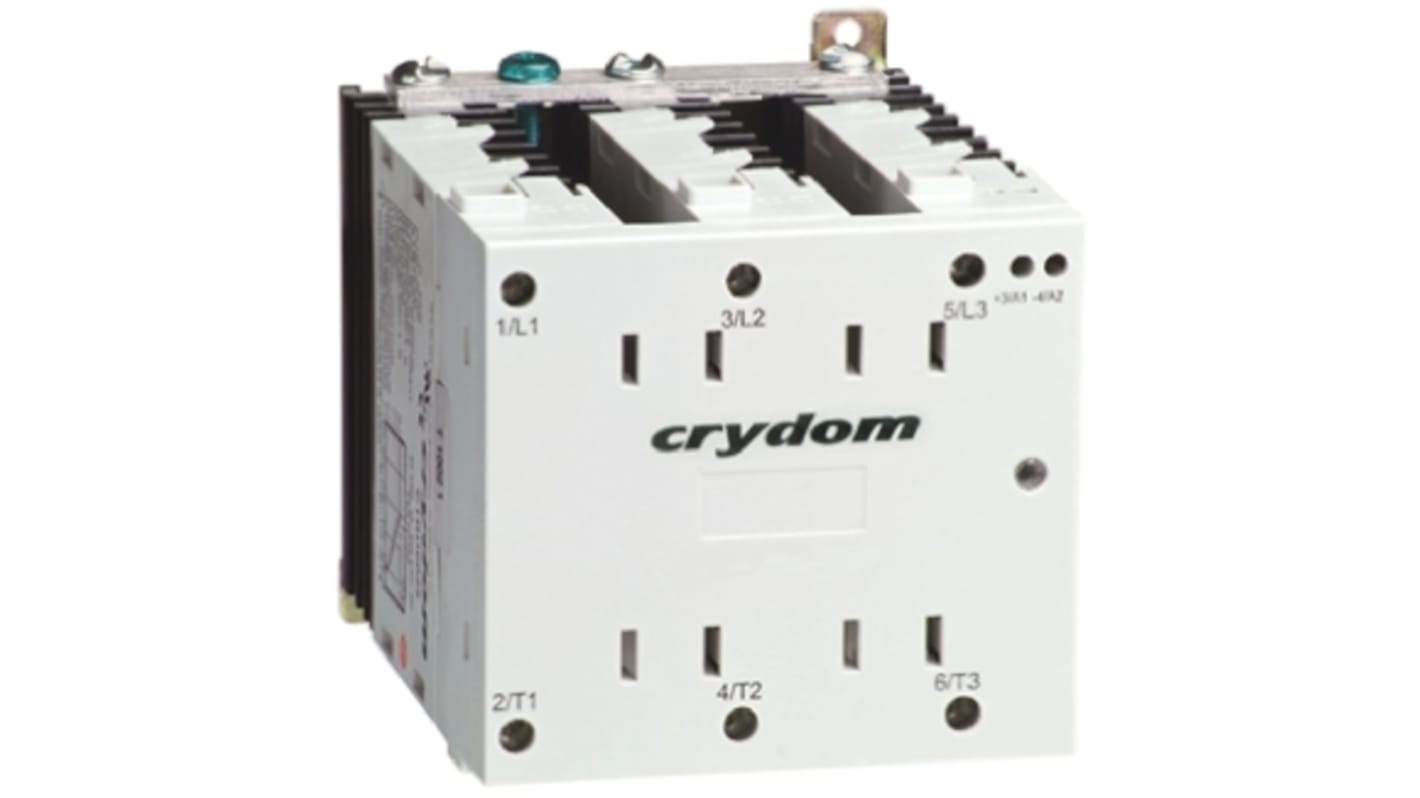

Image representative of range
Subtotal (1 unit)*
£236.60
(exc. VAT)
£283.92
(inc. VAT)
FREE delivery for orders over £50.00
- Final 34 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £236.60 |
| 5 - 9 | £224.78 |
| 10 - 24 | £212.93 |
| 25 - 49 | £201.11 |
| 50 + | £189.28 |
*price indicative
- RS Stock No.:
- 720-4063
- Mfr. Part No.:
- CTRC6025
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 25 A rms | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 600 V rms | |
| Minimum Load Voltage | 48 V rms | |
| Maximum Control Voltage | 280 V rms | |
| Minimum Control Voltage | 180 V rms | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 180 → 280 V rms | |
| Minimum Load Current | 0.1 A rms | |
| Terminal Type | Screw | |
| Output Device | SCR | |
| Relay Type | Solid State Relay | |
| Maximum Turn On Time | 20ms | |
| Load Voltage Range | 48 → 600Vrms | |
| Series | CTR | |
| Dimensions | 90 x 123.4 x 91.2mm | |
| Maximum Operating Temperature | +80°C | |
| Special Features | LED Status Indicator, SCR Output For Heavy Industrial Loads | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +80°C | |
| Capacitance | 8pF | |
| Length | 90mm | |
| Depth | 123.4mm | |
| Off State Leakage Current | 0.25mA rms | |
| Height | 91.2mm | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 25 A rms | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V rms | ||
Minimum Load Voltage 48 V rms | ||
Maximum Control Voltage 280 V rms | ||
Minimum Control Voltage 180 V rms | ||
Switching Type Zero Cross | ||
Control Voltage Range 180 → 280 V rms | ||
Minimum Load Current 0.1 A rms | ||
Terminal Type Screw | ||
Output Device SCR | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 20ms | ||
Load Voltage Range 48 → 600Vrms | ||
Series CTR | ||
Dimensions 90 x 123.4 x 91.2mm | ||
Maximum Operating Temperature +80°C | ||
Special Features LED Status Indicator, SCR Output For Heavy Industrial Loads | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +80°C | ||
Capacitance 8pF | ||
Length 90mm | ||
Depth 123.4mm | ||
Off State Leakage Current 0.25mA rms | ||
Height 91.2mm | ||
- COO (Country of Origin):
- MX
CTR Series
DIN rail or panel mount 90mm (width) package
100K-cycle UL 508 endurance rating for enhanced reliability
SCR output for heavy industrial loads
LED input status indicator
AC or DC control
Zero-crossing output
