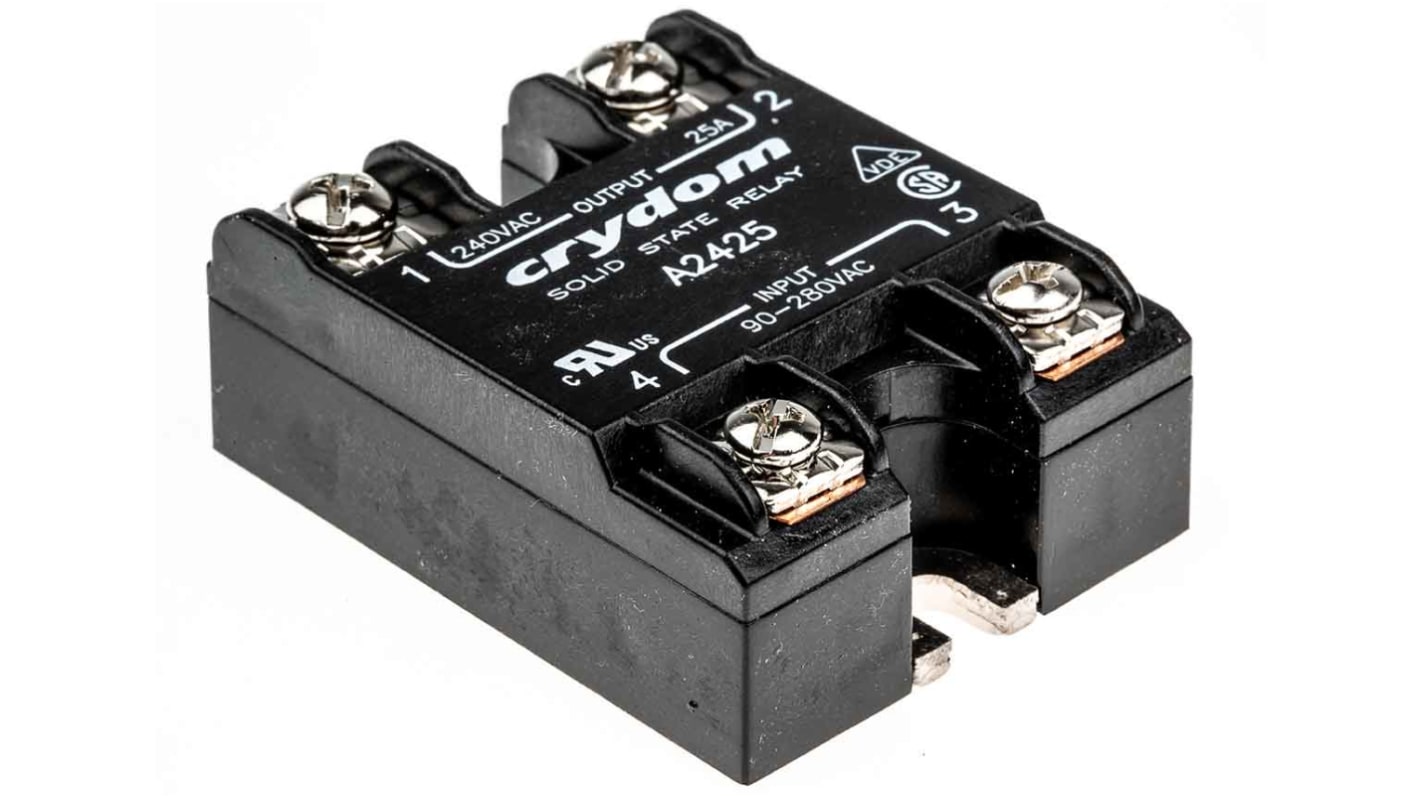

Sensata Crydom Series 1 Series Solid State Relay, 25 A rms Load, Surface Mount, 280 V rms Load, 280 V rms Control

RS Stock No.:: 291-1895
Distrelec Article No.:: 300-49-153
Mfr. Part No.:: A2425
Brand:: Sensata / Crydom

Sensata Crydom Series 1 Series Solid State Relay, 25 A rms Load, Surface Mount, 280 V rms Load, 280 V rms Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£49.68

(exc. VAT)

£59.62

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

110 unit(s) ready to ship
Plus 17 unit(s) ready to ship from another location
Plus 40 unit(s) shipping from 02 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£49.68
5 - 9	£47.18
10 - 24	£44.71
25 - 49	£42.23
50 +	£39.74

*price indicative

RS Stock No.:: 291-1895
Distrelec Article No.:: 300-49-153
Mfr. Part No.:: A2425
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	25 A rms
	Mounting Type	Surface Mount
	Maximum Load Voltage	280 V rms
	Maximum Control Voltage	280 V rms
	Minimum Control Voltage	90 V rms
	Switching Type	Zero Cross
	Control Voltage Range	90 → 280 V ac
	Minimum Load Current	40 mA
	Terminal Type	Screw
	Output Device	SCR
	Maximum Turn On Time	20 MS
	Load Voltage Range	24 → 280V ac
	Series	Series 1
	Dimensions	58.4 x 45.7 x 23mm
	Operating Temperature Range	-40 → +80°C
	Length	58.4mm
	Maximum Operating Temperature	+80°C
	Off State Leakage Current	1 mArms
	Height	23mm
	Minimum Operating Temperature	-40°C
	Capacitance	8pF
	Depth	45.7mm

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 25 A rms
	Mounting Type Surface Mount
	Maximum Load Voltage 280 V rms
	Maximum Control Voltage 280 V rms
	Minimum Control Voltage 90 V rms
	Switching Type Zero Cross
	Control Voltage Range 90 → 280 V ac
	Minimum Load Current 40 mA
	Terminal Type Screw
	Output Device SCR
	Maximum Turn On Time 20 MS
	Load Voltage Range 24 → 280V ac
	Series Series 1
	Dimensions 58.4 x 45.7 x 23mm
	Operating Temperature Range -40 → +80°C
	Length 58.4mm
	Maximum Operating Temperature +80°C
	Off State Leakage Current 1 mArms
	Height 23mm
	Minimum Operating Temperature -40°C
	Capacitance 8pF
	Depth 45.7mm

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, 90 to 280V AC Control Voltage, 25A Rated Load Current - Series 1 Series - A2425

For the safe switching of your heavy industrial loads, choose this Sensata | Crydom solid-state relay. It works by using the electrical and optical features of semiconductors to control the power supply. This eliminates the need for mechanical contacts, so there are no moving parts, helping to ensure reduced wear and a long service life. Screw terminals make it easy to wire. Thanks to its flame-retardant housing, it won't promote the spread of flames in the event of a fire. You'll find an SSR like this one used in computer and microcontroller systems.

Features & Benefits

• MTBF of 11,641,553 hours at +40°C for long-term performance
• Aluminium baseplate is resistant to impact and corrosion
• Low I/O capacitance of 8pF for high-integrity signal transmission
• Wide operating temperature range between -40°C and +80°C for use in challenging conditions

What's the load current range of this SSR?

This unit has a load current range between 150mA and 25A, so you can use it for both light and heavy-duty applications.

Approvals

UL; CSA; VDE
