Sensata Crydom DRA4 CX Series Solid State Interface Relay, 32 V dc Control, 5 A rms Load, DIN Rail Mount

RS Stock No.:: 701-8685
Mfr. Part No.:: DRA4-CXE240D5
Brand:: Sensata / Crydom

Sensata Crydom DRA4 CX Series Solid State Interface Relay, 32 V dc Control, 5 A rms Load, DIN Rail Mount

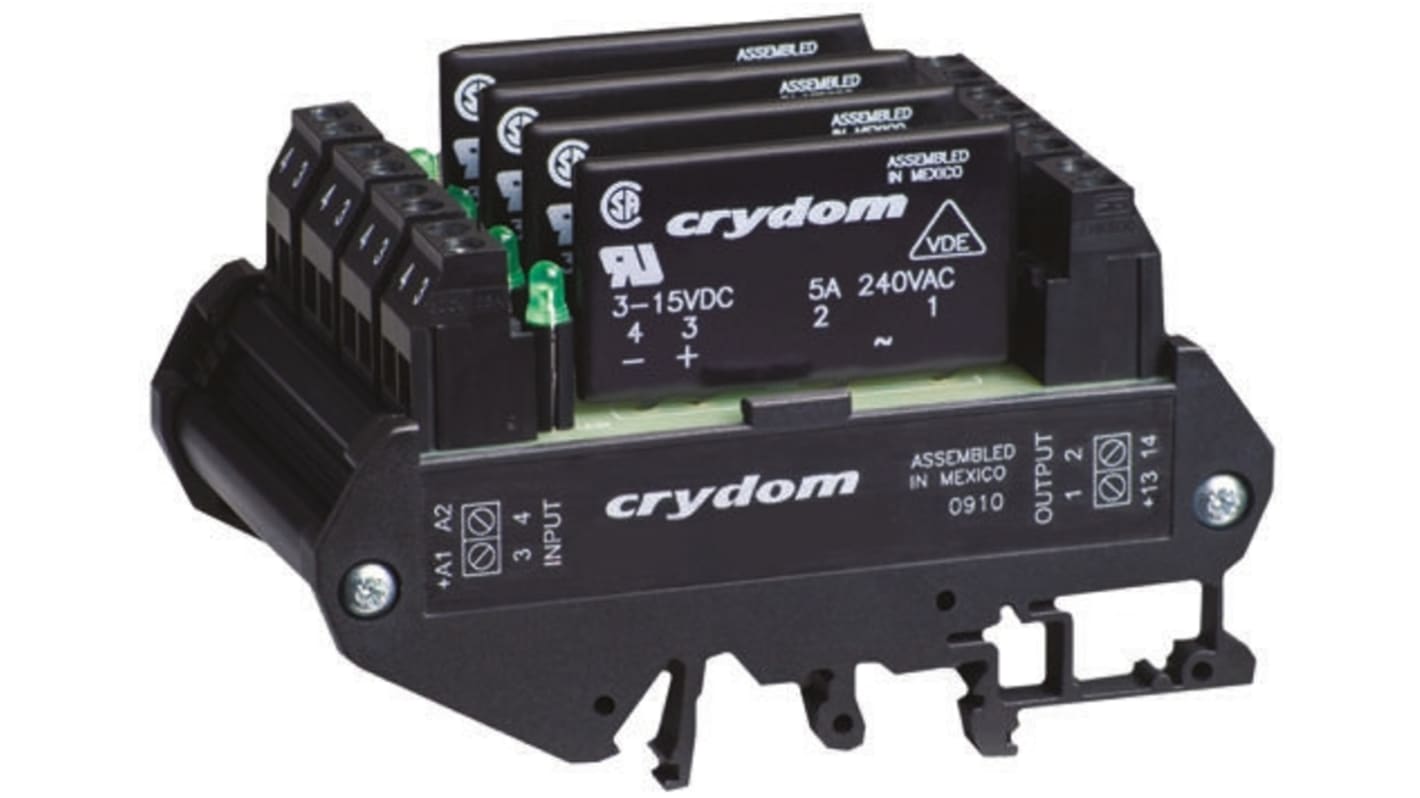

Image representative of range

View this category

Bulk discount available

Subtotal (1 unit)*

£163.47

(exc. VAT)

£196.16

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

9 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£163.47
5 - 9	£155.28
10 - 24	£147.13
25 - 49	£138.95
50 +	£130.76

*price indicative

RS Stock No.:: 701-8685
Mfr. Part No.:: DRA4-CXE240D5
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Control Voltage	32 V dc
	Maximum Load Current	5 A rms
	Mounting Type	DIN Rail
	Maximum Load Voltage	280 V ac
	Minimum Control Voltage	15 V dc
	Control Voltage Range	15 → 32 V dc
	Switching Type	Zero Crossing
	Load Voltage Range	12 → 280V ac
	Minimum Load Voltage	12 V ac
	Terminal Type	Screw
	Input Current	15mA
	Height	60.1mm
	Length	89.6mm
	Minimum Load Current	0.06 A
	Output Device	DC
	Series	DRA4 CX
	Depth	53.7mm
	Maximum Turn On Time	1/2 cycle
	Off State Leakage Current	0.1 mA
	Special Features	Fits Standard 35mm DIN-RAIL, LED Input Status Indicator
	Standards Met	CE, CSA
	Minimum Operating Temperature	-30°C
	Capacitance	10pF
	Maximum Operating Temperature	+80°C
	Dimensions	89.6 x 53.7 x 60.1mm
	Operating Temperature Range	-30 → +80°C
	Manufacturer Part No.	DRA4-CXE240D5

	Select all
	Brand Sensata / Crydom
	Maximum Control Voltage 32 V dc
	Maximum Load Current 5 A rms
	Mounting Type DIN Rail
	Maximum Load Voltage 280 V ac
	Minimum Control Voltage 15 V dc
	Control Voltage Range 15 → 32 V dc
	Switching Type Zero Crossing
	Load Voltage Range 12 → 280V ac
	Minimum Load Voltage 12 V ac
	Terminal Type Screw
	Input Current 15mA
	Height 60.1mm
	Length 89.6mm
	Minimum Load Current 0.06 A
	Output Device DC
	Series DRA4 CX
	Depth 53.7mm
	Maximum Turn On Time 1/2 cycle
	Off State Leakage Current 0.1 mA
	Special Features Fits Standard 35mm DIN-RAIL, LED Input Status Indicator
	Standards Met CE, CSA
	Minimum Operating Temperature -30°C
	Capacitance 10pF
	Maximum Operating Temperature +80°C
	Dimensions 89.6 x 53.7 x 60.1mm
	Operating Temperature Range -30 → +80°C
	Manufacturer Part No. DRA4-CXE240D5

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Interface Relay, 10pF Capacitance, 104.6g Weight - DRA4-CX Series - DRA4-CXE240D5

Make the switch to efficient circuit control with this solid-state interface relay from Sensata | Crydom. Unlike an electromechanical relay, it doesn't use any moving parts to switch power to a circuit. This means there's minimal chance of wear, so you can count on it for long-lasting performance. As it has four channels, you can use it to control multiple circuits simultaneously for increased productivity. This unit is just the thing for operating lighting and motor systems.

Features & Benefits

• Zero cross-switching means it turns on when the voltage is close to 0V for reduced electrical noise
• Operating voltage range of 12 to 280V AC for use in low-power systems
• DIN rail mounting makes installation a breeze
• Keeps its cool in extreme conditions, thanks to a broad operating temperature range between -30°C and +80°C

How can I tell when the relay is active?

Each channel has an LED status indicator for at-a-glance visual updates.

How large is this relay?

It has compact dimensions of 89.6 (L) x 53.7 (W) x 60.1mm (H), helping to maximise space on your DIN rail.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
