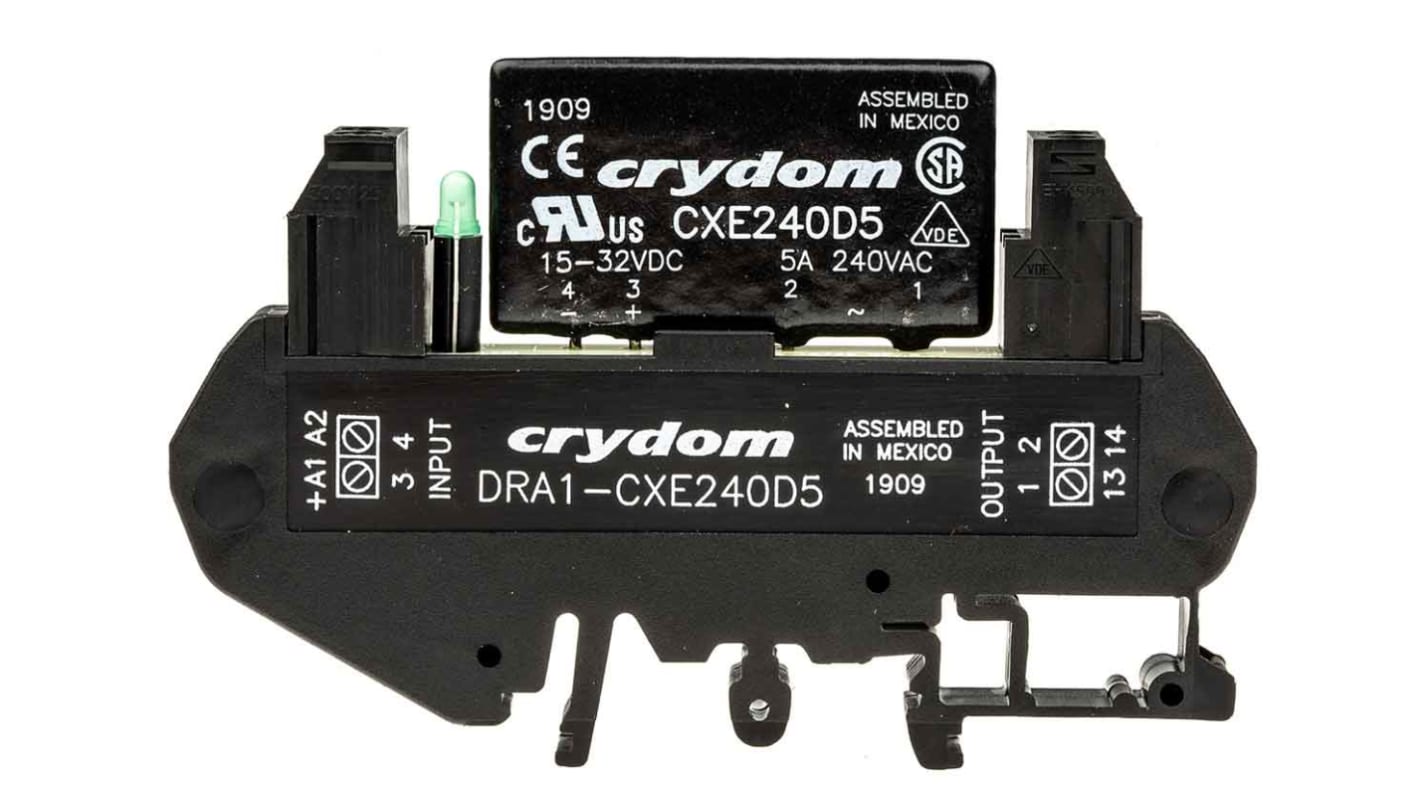

Sensata Crydom DRA1-CX Series Solid State Interface Relay, 32 V dc Control, 5 A rms Load, DIN Rail Mount

RS Stock No.:: 701-8547
Mfr. Part No.:: DRA1-CXE240D5
Brand:: Sensata / Crydom

Sensata Crydom DRA1-CX Series Solid State Interface Relay, 32 V dc Control, 5 A rms Load, DIN Rail Mount

View this category

Bulk discount available

Subtotal (1 unit)*

£48.82

(exc. VAT)

£58.58

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

170 unit(s) ready to ship
Plus 24 unit(s) shipping from 04 November 2025
Plus 47 unit(s) shipping from 02 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£48.82
5 - 9	£46.39
10 - 24	£43.94
25 - 49	£41.50
50 +	£39.06

*price indicative

RS Stock No.:: 701-8547
Mfr. Part No.:: DRA1-CXE240D5
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Control Voltage	32 V dc
	Maximum Load Current	5 A rms
	Mounting Type	DIN Rail
	Maximum Load Voltage	280 V ac
	Minimum Control Voltage	15 V dc
	Control Voltage Range	15 → 32 V dc
	Switching Type	Zero Cross
	Contact Configuration	SPST
	Load Voltage Range	12 → 280V ac
	Minimum Load Voltage	12 V ac
	Series	DRA1-CX
	Depth	10mm
	Length	89.6mm
	Minimum Load Current	0.06 A
	Height	61mm
	Off State Leakage Current	0.1 mA
	Dimensions	89.6 x 10 x 61mm
	Maximum Operating Temperature	+80°C
	Range	DRA1-CX
	Capacitance	10pF
	Minimum Operating Temperature	-30°C
	Maximum Turn On Time	1/2 cycle
	Manufacturer Part No.	DRA1-CXE240D5
	Operating Temperature Range	-30 → +80°C

	Select all
	Brand Sensata / Crydom
	Maximum Control Voltage 32 V dc
	Maximum Load Current 5 A rms
	Mounting Type DIN Rail
	Maximum Load Voltage 280 V ac
	Minimum Control Voltage 15 V dc
	Control Voltage Range 15 → 32 V dc
	Switching Type Zero Cross
	Contact Configuration SPST
	Load Voltage Range 12 → 280V ac
	Minimum Load Voltage 12 V ac
	Series DRA1-CX
	Depth 10mm
	Length 89.6mm
	Minimum Load Current 0.06 A
	Height 61mm
	Off State Leakage Current 0.1 mA
	Dimensions 89.6 x 10 x 61mm
	Maximum Operating Temperature +80°C
	Range DRA1-CX
	Capacitance 10pF
	Minimum Operating Temperature -30°C
	Maximum Turn On Time 1/2 cycle
	Manufacturer Part No. DRA1-CXE240D5
	Operating Temperature Range -30 → +80°C

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Interface Relay, 4000V Dielectric Strength, 15 to 32V DC Control Voltage Range - DRA1-CX Series - DRA1-CXE240D5

Turn electrical loads on or off using this solid-state interface relay from Sensata | Crydom. The device has compact dimensions of 89.6 (L) x 10 (W) x 61mm (H), so it's a good option for setups where space is limited. It has a broad operating voltage range between 12 and 280V AC, so it's suitable for use in low-power applications. A zero-cross switching design means it will generate minimal noise during start-up. As it has a dielectric strength of 4000V, this component is properly insulated to protect personnel against electric shocks. Use this device in lighting and heating systems.

Features & Benefits

• Cage-style screw terminals for easy wiring
• LED indicator for simple status monitoring
• Broad operating temperature range between -30°C and +80°C for use in harsh conditions
• Light weight of 28.6g to place minimal strain on your equipment
• Designed for DIN rail mounting for ease of installation

What type of housing does this component have?

The housing of this component is made of thermally conductive epoxy, making it resistant to heat and providing a high level of insulation.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
