EMERSON ? ASCO Solenoid Valve E262K208S0N00H1, 2 port(s) , Normally Closed, 24 V dc, 1/4in
- RS Stock No.:
- 564-224
- Mfr. Part No.:
- E262K208S0N00H1
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£108.55
(exc. VAT)
£130.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £108.55 |
*price indicative
- RS Stock No.:
- 564-224
- Mfr. Part No.:
- E262K208S0N00H1
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 24 V dc | |
Number of Ports | 2 | |
Connection Size | 1/4in | |
Connection | 1/4 | |
Operation | Direct | |
Default Valve Position | Normally Closed | |
Suitable Applications | Air, Gas, Liquid, Oil, Water | |
Type | 2/2 | |
Body Material | Brass | |
Series | E262 | |
Maximum Working Pressure | 6.5 bar | |
Operating Temperature Range | -25 To +80 °C | |
Connection Gender | Female | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 24 V dc | ||
Number of Ports 2 | ||
Connection Size 1/4in | ||
Connection 1/4 | ||
Operation Direct | ||
Default Valve Position Normally Closed | ||
Suitable Applications Air, Gas, Liquid, Oil, Water | ||
Type 2/2 | ||
Body Material Brass | ||
Series E262 | ||
Maximum Working Pressure 6.5 bar | ||
Operating Temperature Range -25 To +80 °C | ||
Connection Gender Female | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
HB Series
Panasonic HB Series Type V electrolytic capacitors provide 2000 hours endurance at +105°C. These surface mount capacitors have a low profile.
AEC-Q200 qualified (some deviations apply)
Some capacitors within this range can withstand high reflow temperatures
High ripple current
High reliability
Low impedance
Long life
Surface mount
Some capacitors within this range can withstand high reflow temperatures
High ripple current
High reliability
Low impedance
Long life
Surface mount
Applications
Panasonic HB Series Type V electrolytic capacitors are AEC-Q200 qualified and suitable for use in automotive applications. These Panasonic electrolytic capacitors are recommended for use in industrial infrastructure in power supplies, inverters, motor drivers, measuring instruments, HEMS, BEMS and FEMS. Other suitable applications include ICT applications such as PCs, base stations, data centres, non-contact charge. HB Series Type V aluminium capacitors can be utilised in home appliances including air conditioners, white goods and home information appliances. Other uses include lighting, medical equipment, OA equipment, electric tools and power management, safety, infotainment and comfort accessories in automotive applications.

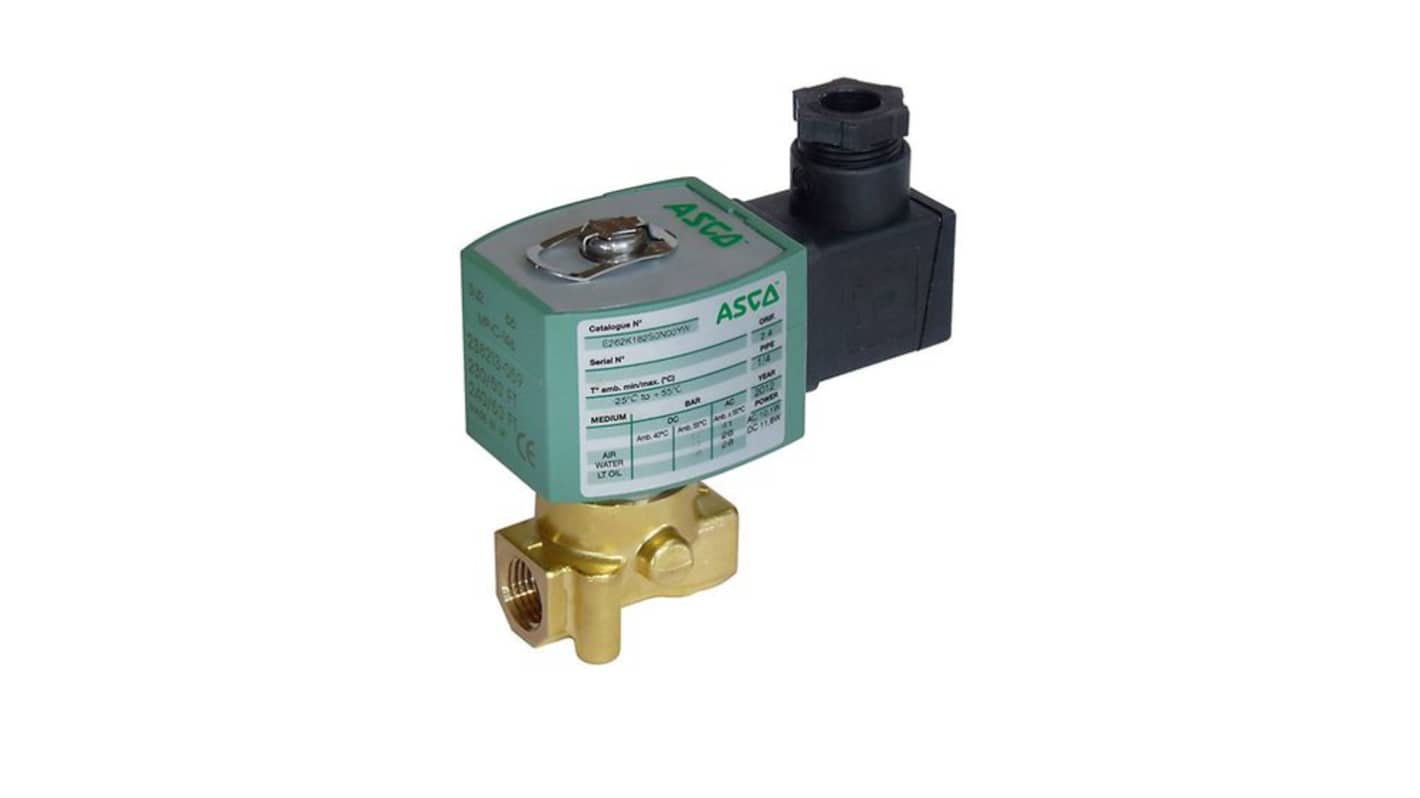

The Asco Solenoid valve is a normally closed, two-way design with a G/RP 1/4 connection. It features a brass body for durability and an NBR seal for effective sealing performance. The valve operates at 24V DC with a power consumption of 11.6 watts. It is equipped with a Coil MXXII, classified under Class H insulation, ensuring reliable function.
Nominal diameter of 5.6 millimeters
Without manual operation
No connector included
Without manual operation
No connector included
